Electric Bike Wheel Winding External Rotor Stator Winding

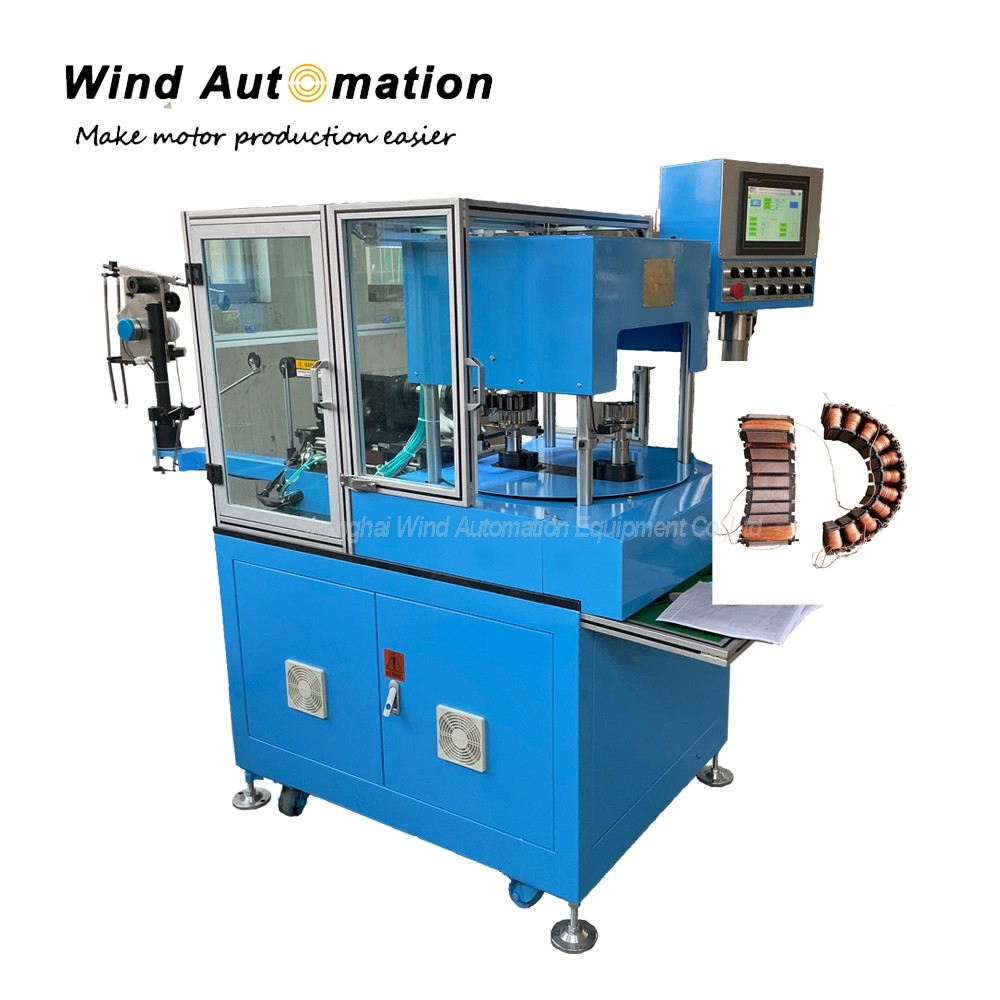

Segment Coil Winding for External Rotor Stator

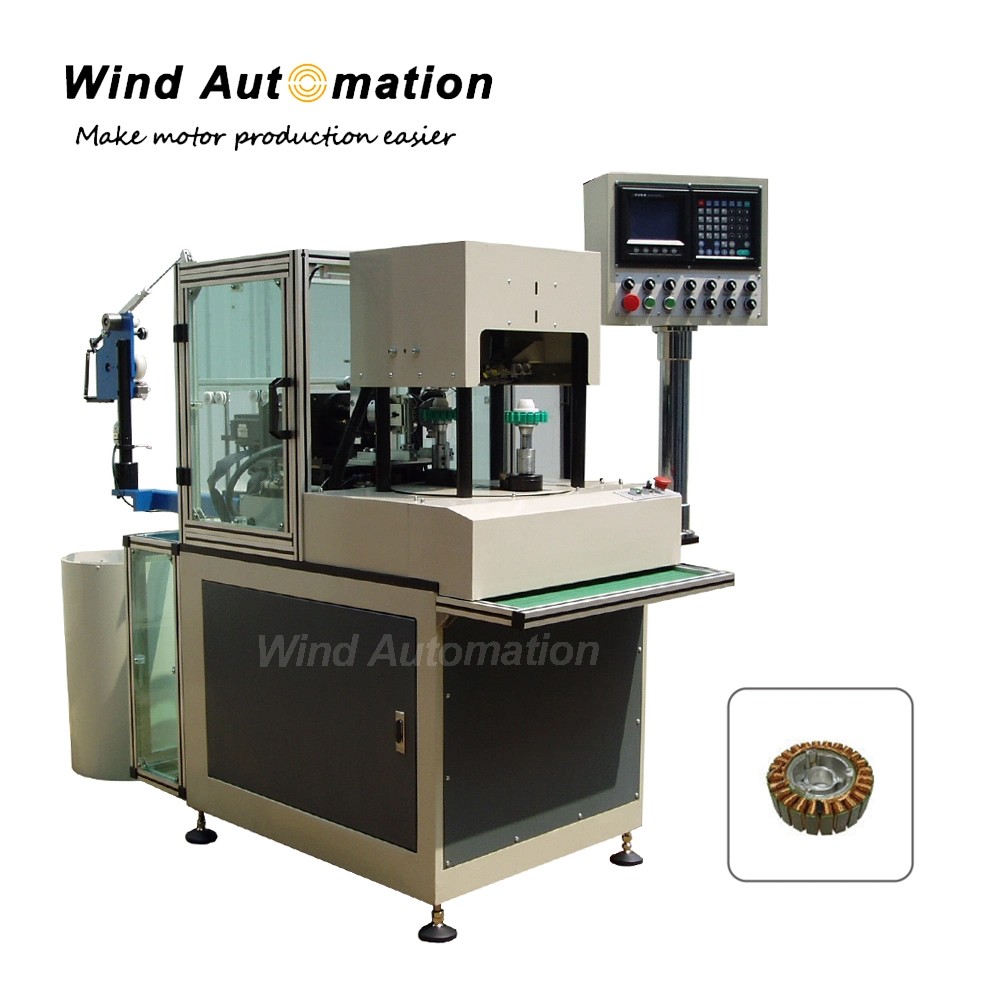

This wheel motor winding machine is designed for the electric bike, the winding machine is controlled by servo system and HMI. It can automatic wire feeding, muti-diameter wire winding, automatic indexing, slot-skipping, you can check the output on touch screen,

Wire diameter: 0.2~1.0mm
Stator diameter: 150~300mm

Litz wire number: 1~9pcs
Stator height: 15~35mm
Power supply: 220V, 50HZ, 1.5KW
Weight: Around 400KGS
Dimension: 1300*800*1500mm

Application:

High Slot Filling Rate Burshless Stator



Advantages:



1. Japan design, Made in China



2. Flyer winding Fast



3. Wire displament neat and tidy



4. Two head ensure loading/unloading don't effect winding



Technical Data:



Wire diameter: 0.15~1.5mm



Stator ID: 15~260mm



Stator stack height:7~60mm



Turns no.:0~99999



Winding speed:0~1500rpm



Mode: Step/Auto



Airsource:5~7KG/cm2



Machine power: 2.5KW



1phase AC 220V 50~60Hz



Weight: about 600KGS



Dimension:1150*2350*1500mm





Main Configuration:





Control  system



Taiwan Hust H6D CNC system or PLC





Servo    system



Taiwan Delta servo system





Pneumatic system



Airtac cylinder









Most of the early EPS motors used brush motors. With the advancement of technology, more and more



motor manufacturers use more advanced and reliable brushless motors. However, the brushless motor



has a great difficulty in stator production. In order to ensure the circularity of the inner diameter of the

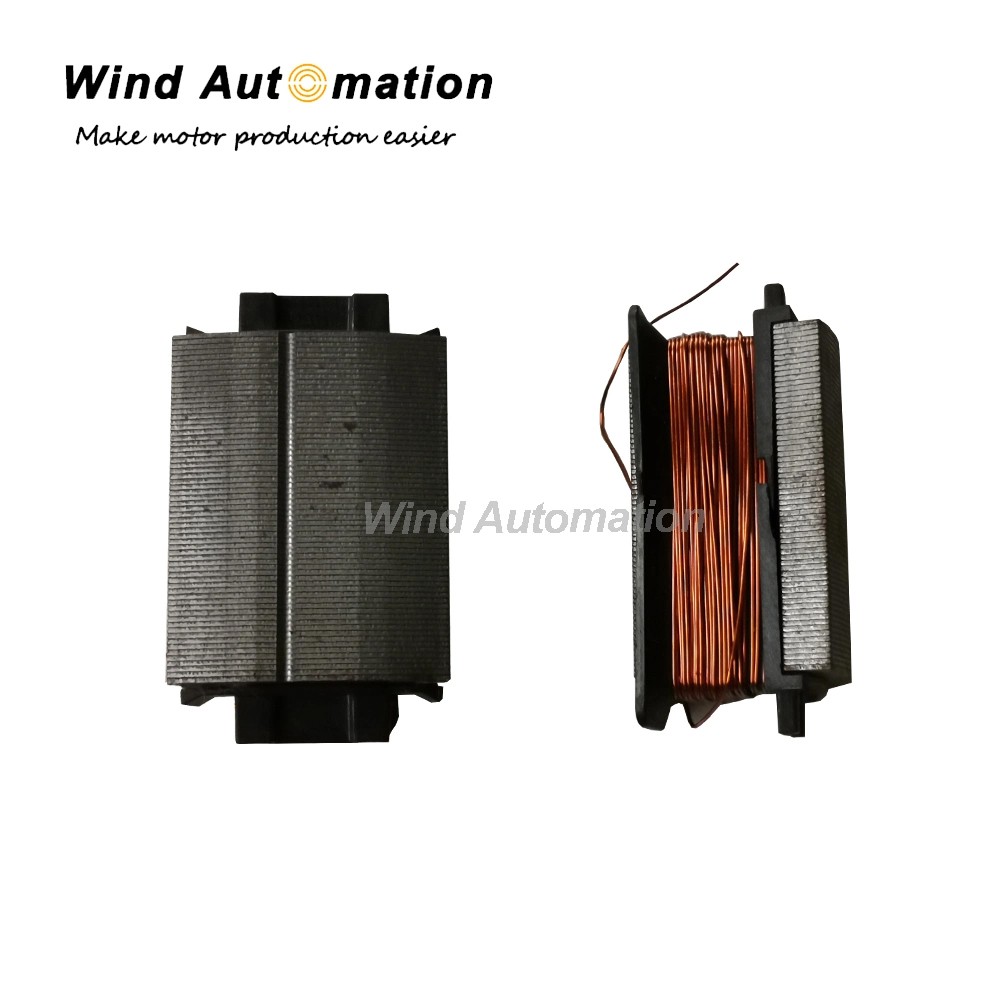

stator and simultaneously increase the slot filling rate of winding, the stator core of the stator segment



core block becomes a necessary process for almost all brushless EPS motor manufacturers.



Following photo shows a briefly describes the stator production process of EPS brushless motor

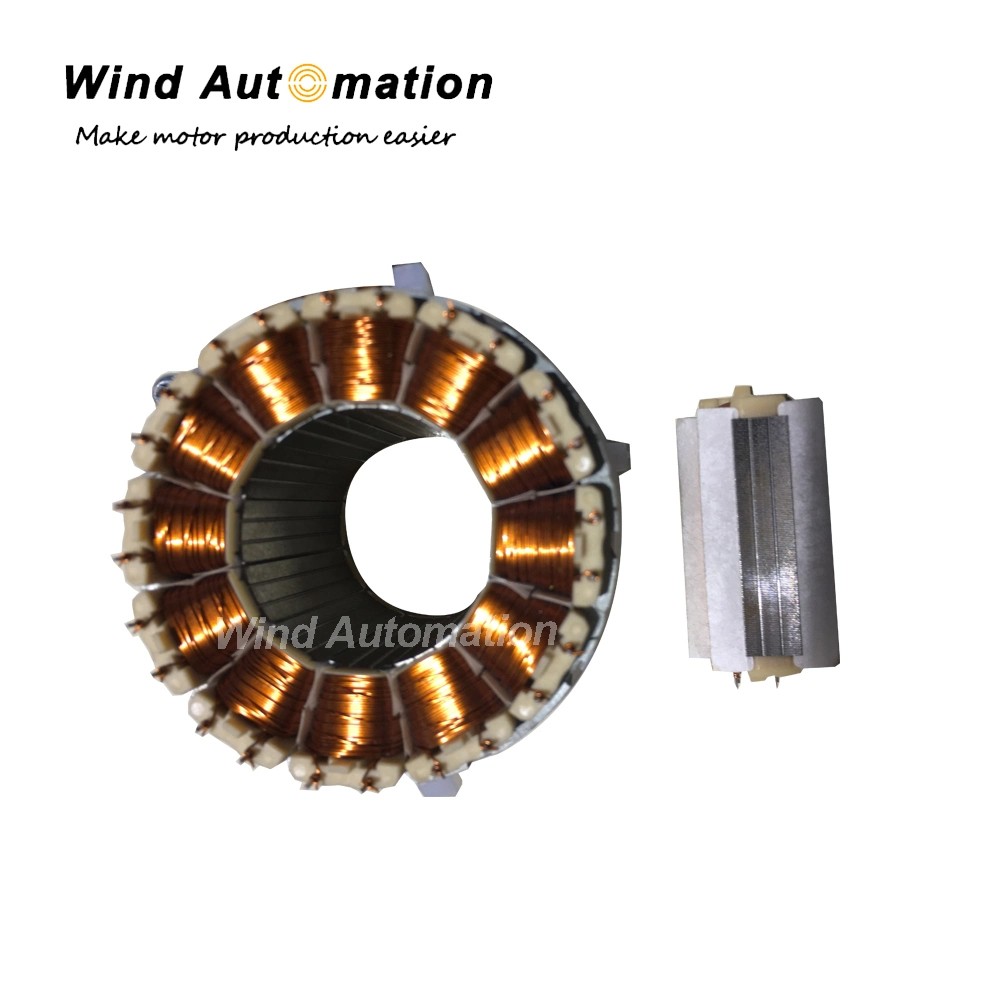

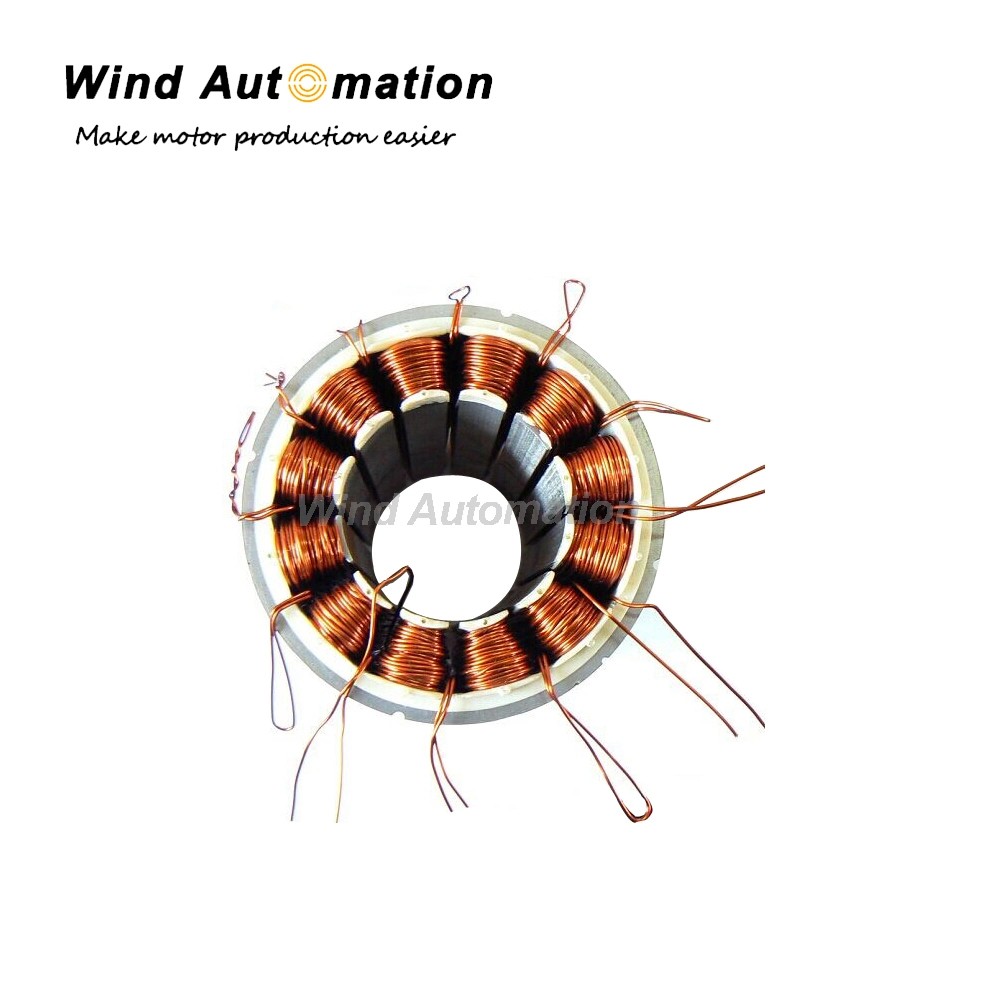

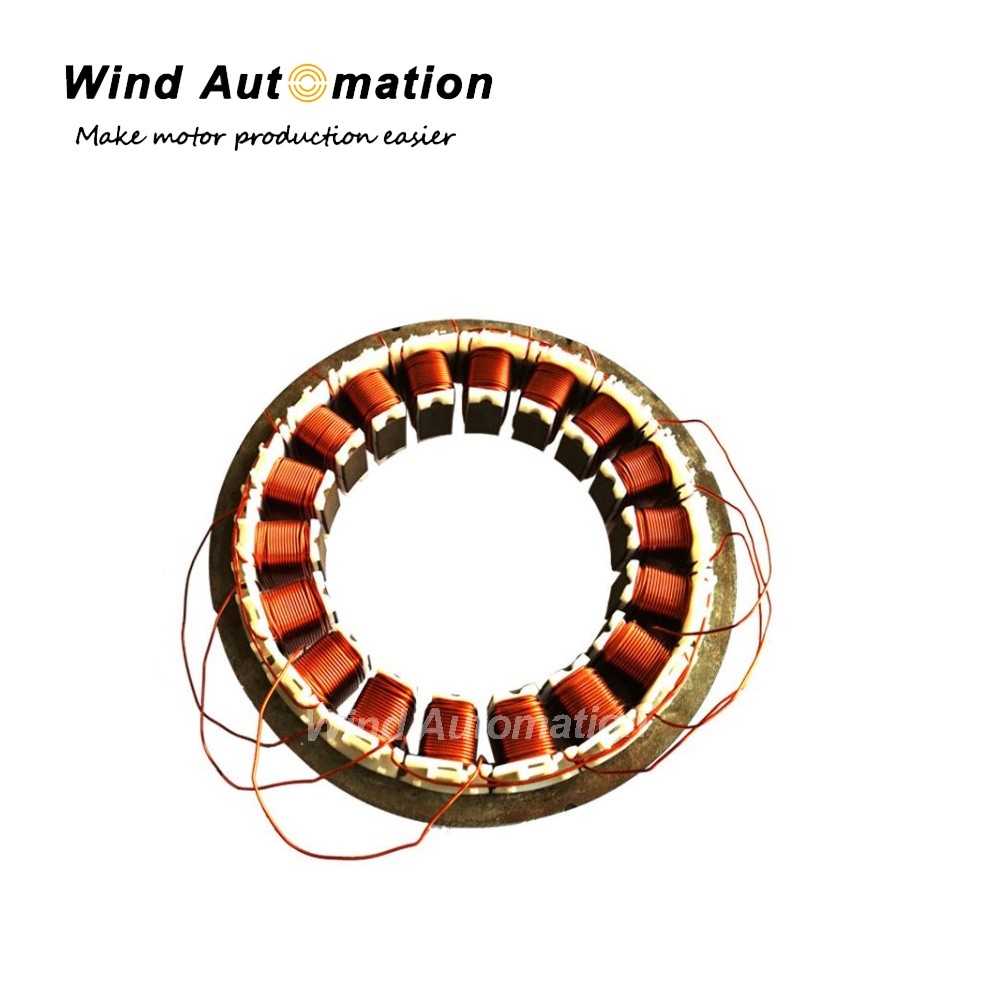

The stator of the motor manufactured by the segment-type process has excellent consistency and product



accuracy. In the actual mass production applications, the roundness of the inner circle can be controlled



to 0.03 mm or less. At the same time, because of the direct winding method, the resistance and



inductance balance of each winding of the motor are controlled to an excellent level. The high quality of



the stator determines the EPS motor's excellent performance in terms of response time, as well as



cogging torque and torque ripple. The segment stator technology is becoming the mainstream of high-



precision motor production process.
