4-Working-Stations-Stator-Coil-Winding-Machine

Basic Info.

Model NO.

WIND-400-VW

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

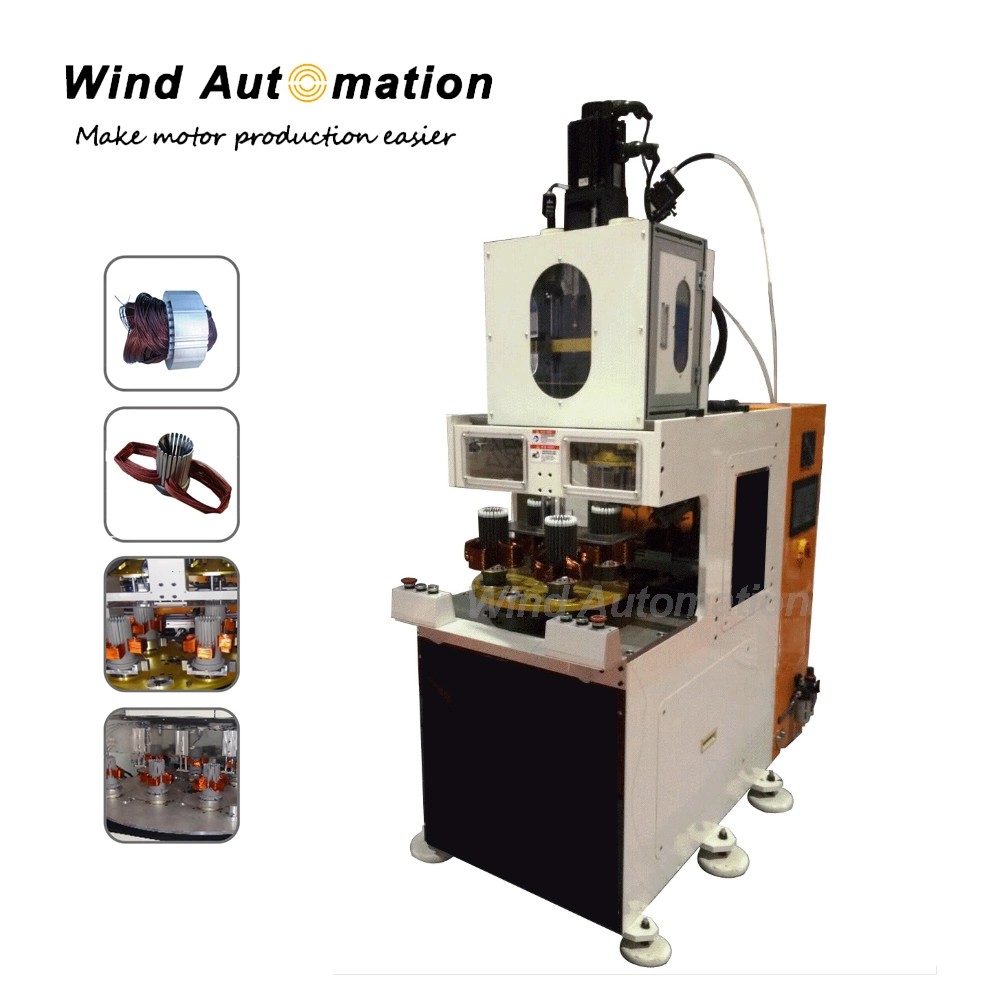

4 Working Stations Stator Coil Winding Machine

4 Working Stations Stator Coil Winding Machine

This machine is an high automation machine for stator coil winding. It is special design for stators with high production capacity requirement.


(1) Specification

Wire diameter0.19~1.2mm
Winding head2
Station4
Max stator OD120mm
Core length65mm
Min stator ID400mm
Winding SpeedMax 2500r/min
Air pressureMin 0.5Mpa
Power supply380V  1.5KW
WeightAbout 4500kgs
Dimension2400x1900x2250mm



(2) Feature
2 winding head 4 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system

No distinct vibration or noise during winding
Automatically stop if wire is run out

All winding parameter programmable on touch screen

(3) Application
This machine is suitable for mass production of 2 poles, 4 poles and 6poles coils winding.


4 Working Stations Stator Coil Winding Machine4 Working Stations Stator Coil Winding Machine
4 Working Stations Stator Coil Winding Machine
