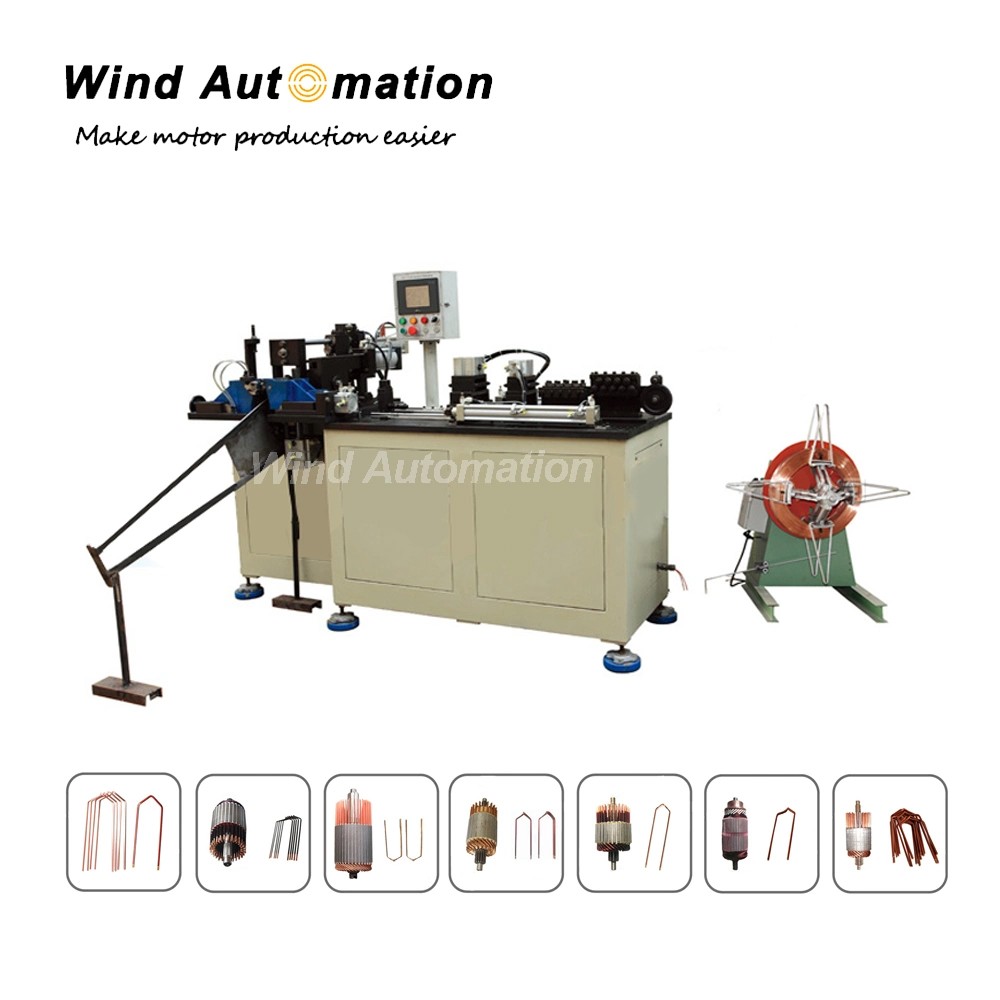

Wire Shaping Machine For Starter Armature Coils

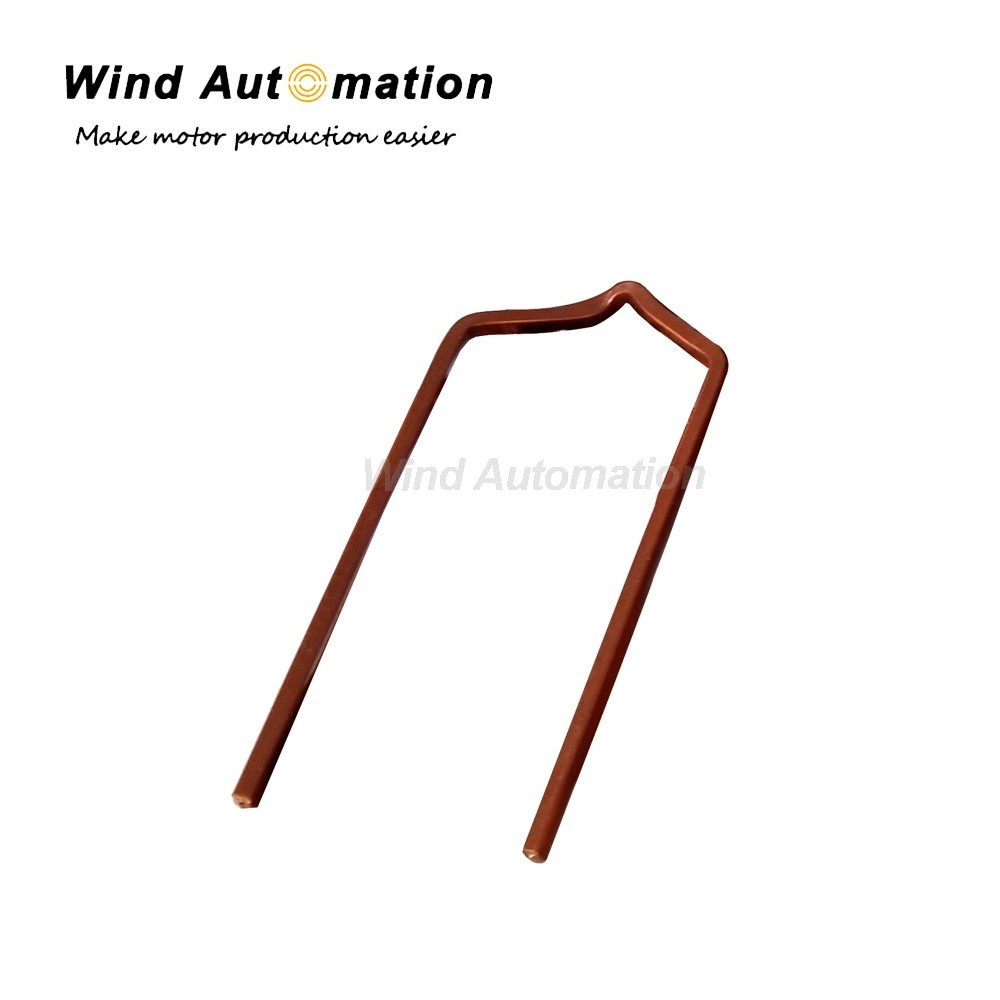

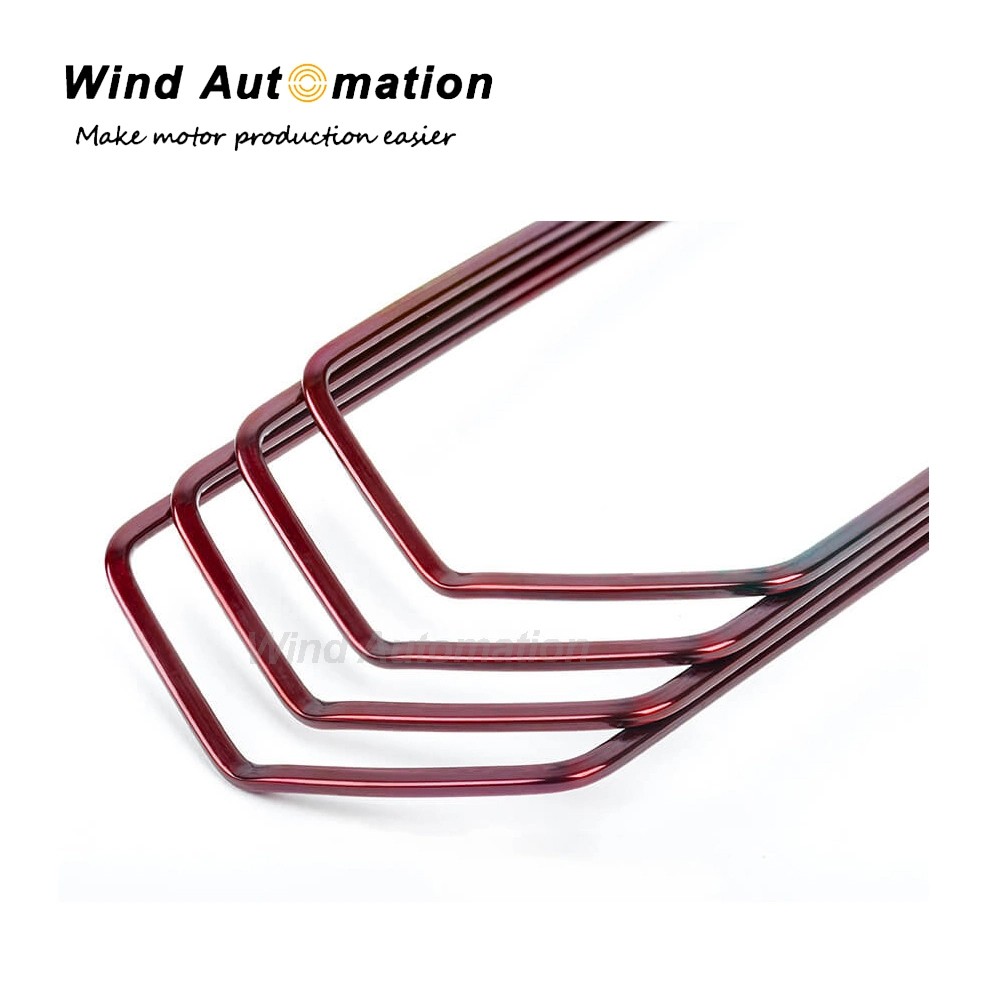

This wire shaping machine is suitable for starter armatures with a long stack length to do hairpin coil forming. It can do automatic wire feeding, wire straightening, wire cutting, wire forming.
(1) Features
Suitable for flat wire
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
(2) Specification
| Power Supply | AC220V±10% 50Hz |
| Air Pressure Supply | ≥0.5Mpa |
| Rated Capacity | 800W |
| Feeding Length | 0~350mm |
| Productivity | 3s/pc |
| Weight | 1000KG |
| Dimension | 2000x700x1600 |
(3) Application

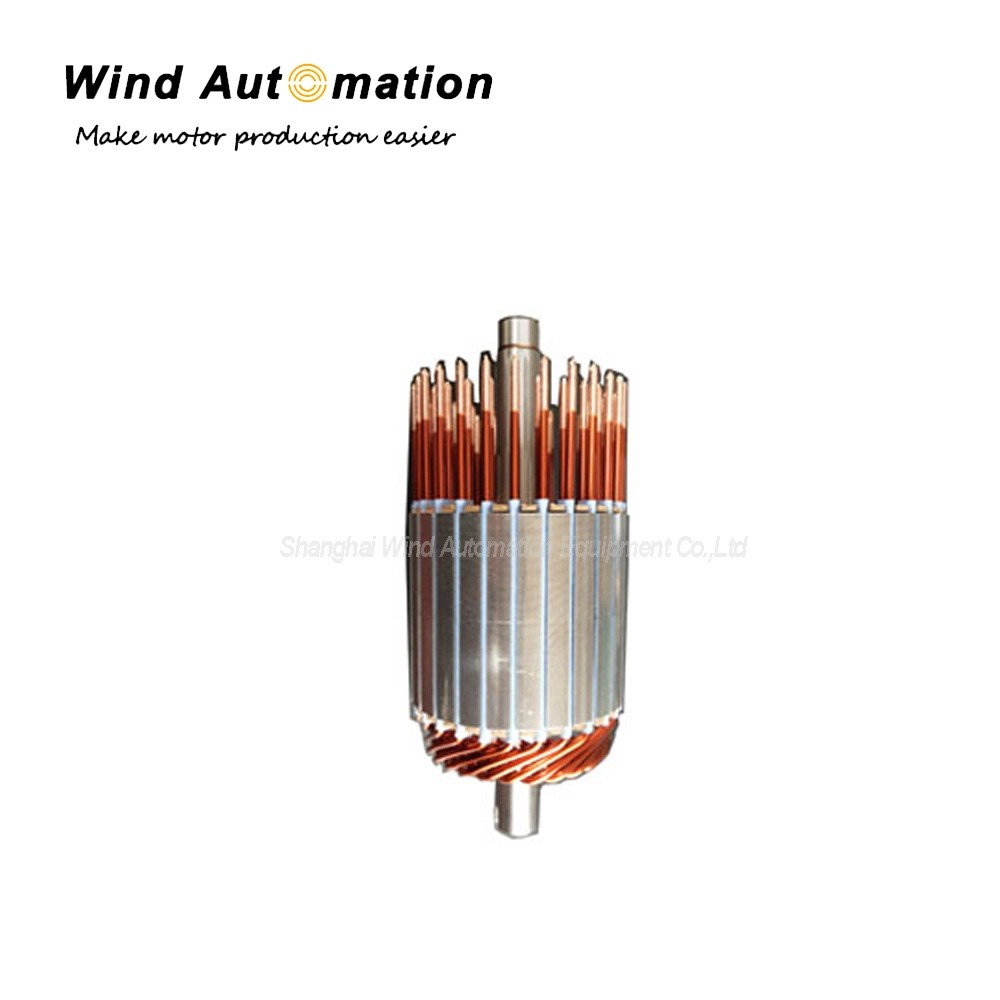

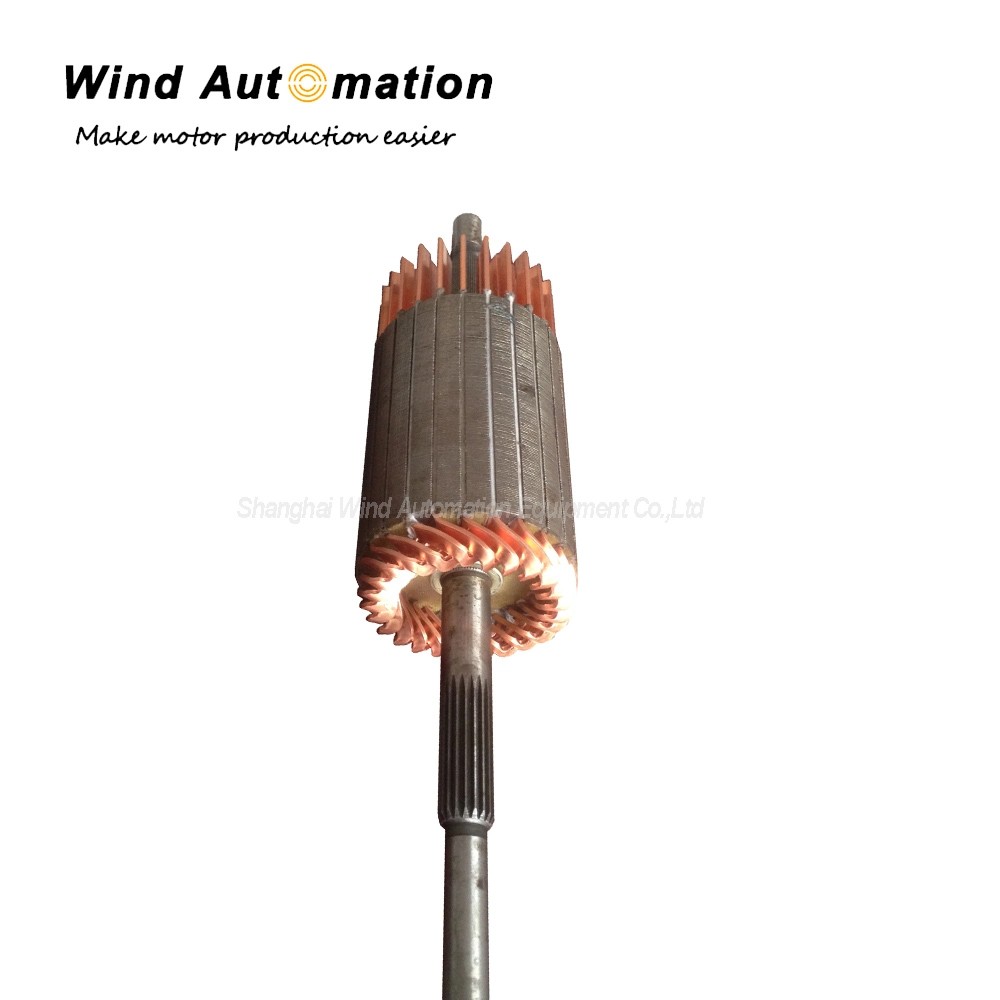

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.
