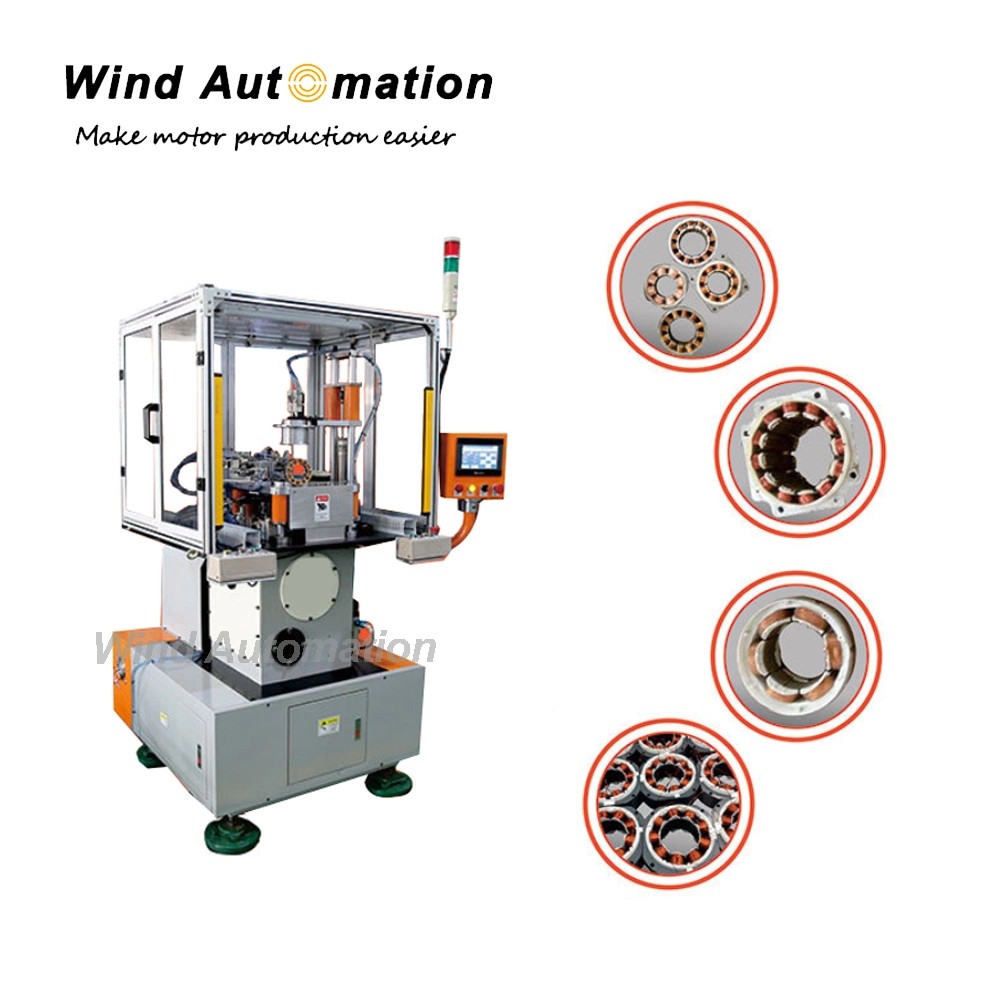

Stator Needle Winding Equipment with Latest Technology
This machine is suitable for inslot concentrated winding variable frequency BLDC motor in the fields of automobile, home appliance, air and so on, like servo motor, fan motor, washing motor, compressor motor and stepper motor etc. The machine functions with auto winding, arraying, indexing, hooking and cutting wires and fault diagnosis and display.
(1)Specification
| Stator OD | Max 180mm |
| Stator ID | Min 40 mm |
| Stack length | Max 110mm including plastic frame |
| Needle number | 1~3 |
| Wire range | 0.2~1.2mm |
| Loading speed | Max 600r/min |
| Power | 5.5KW |
| Machine dimension | 760x1250x2350mm |
| Machine weight | 1250Kg |
(2)Application

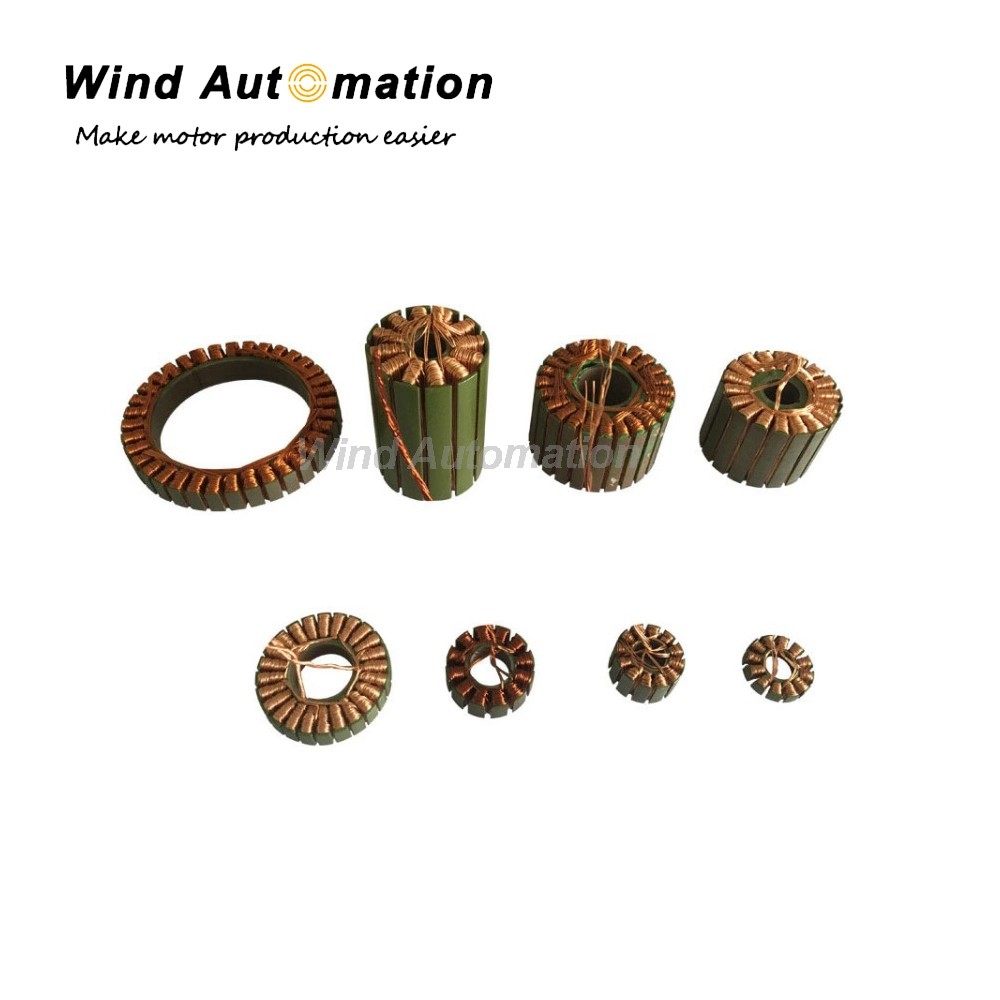

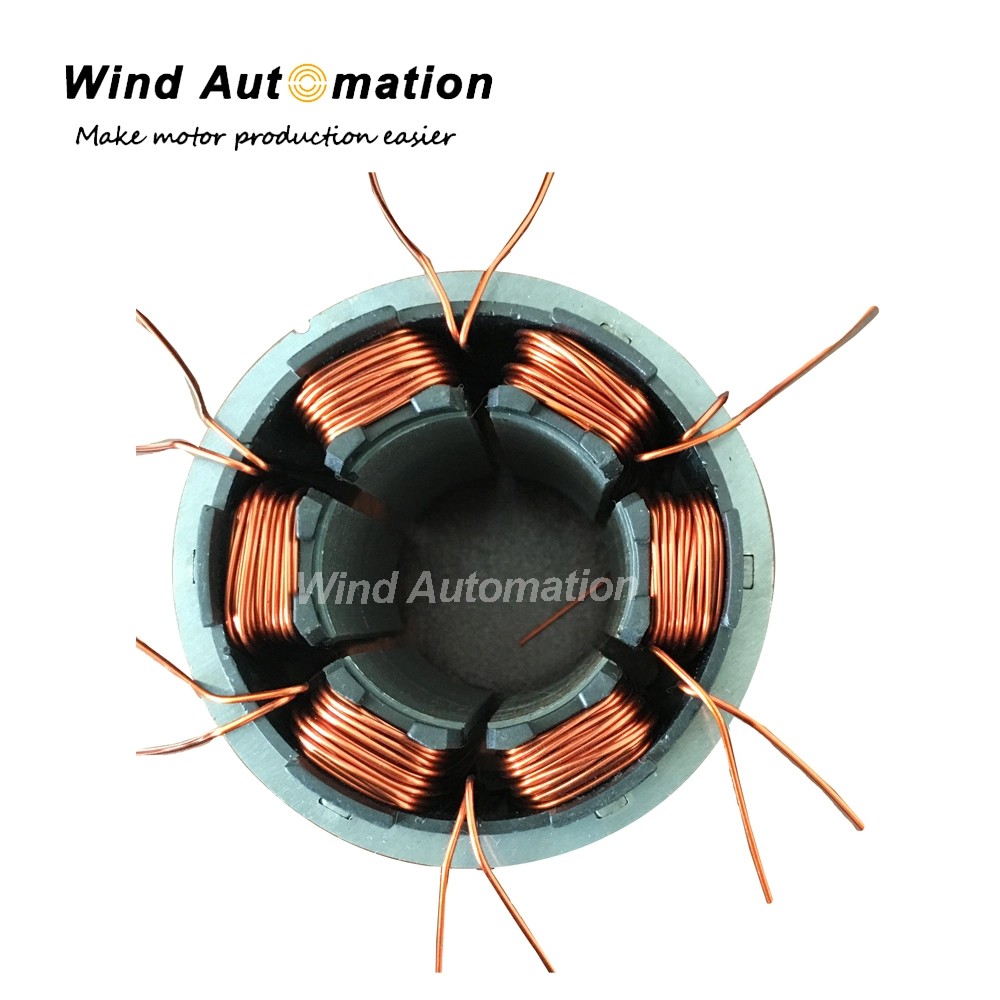

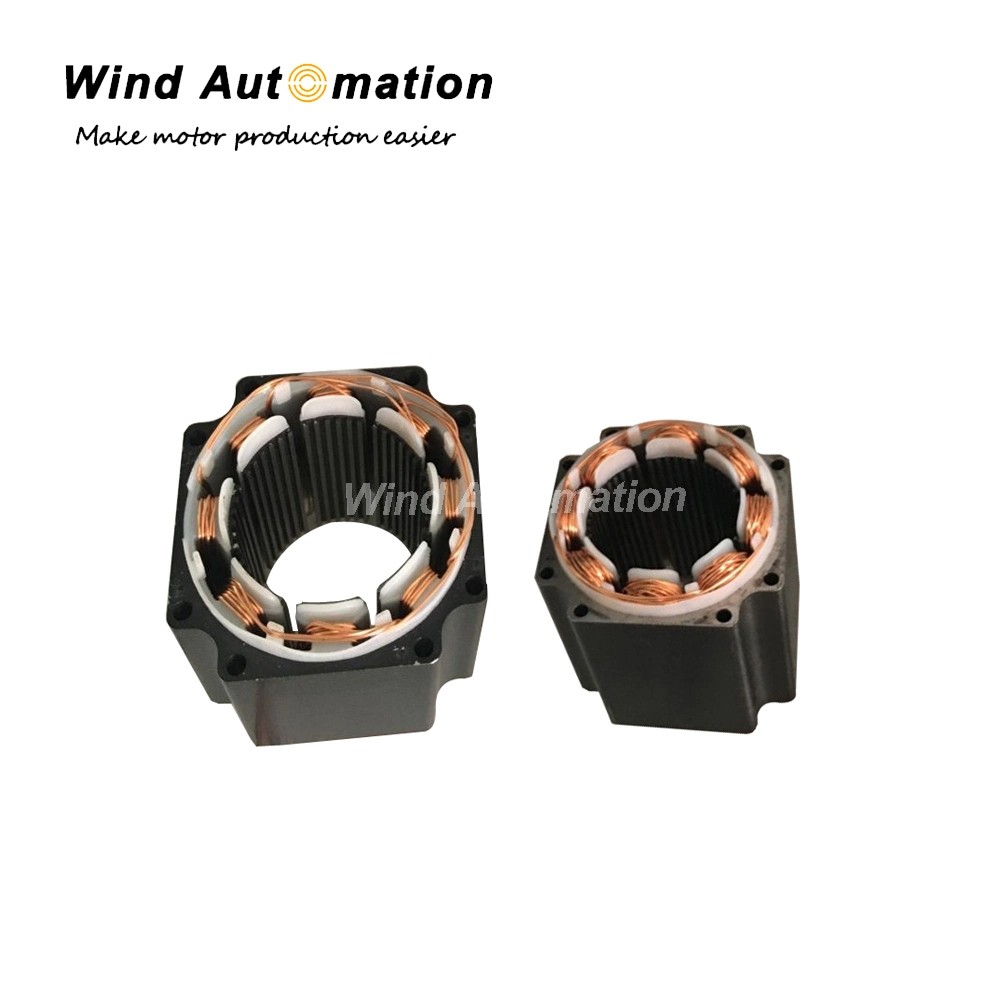

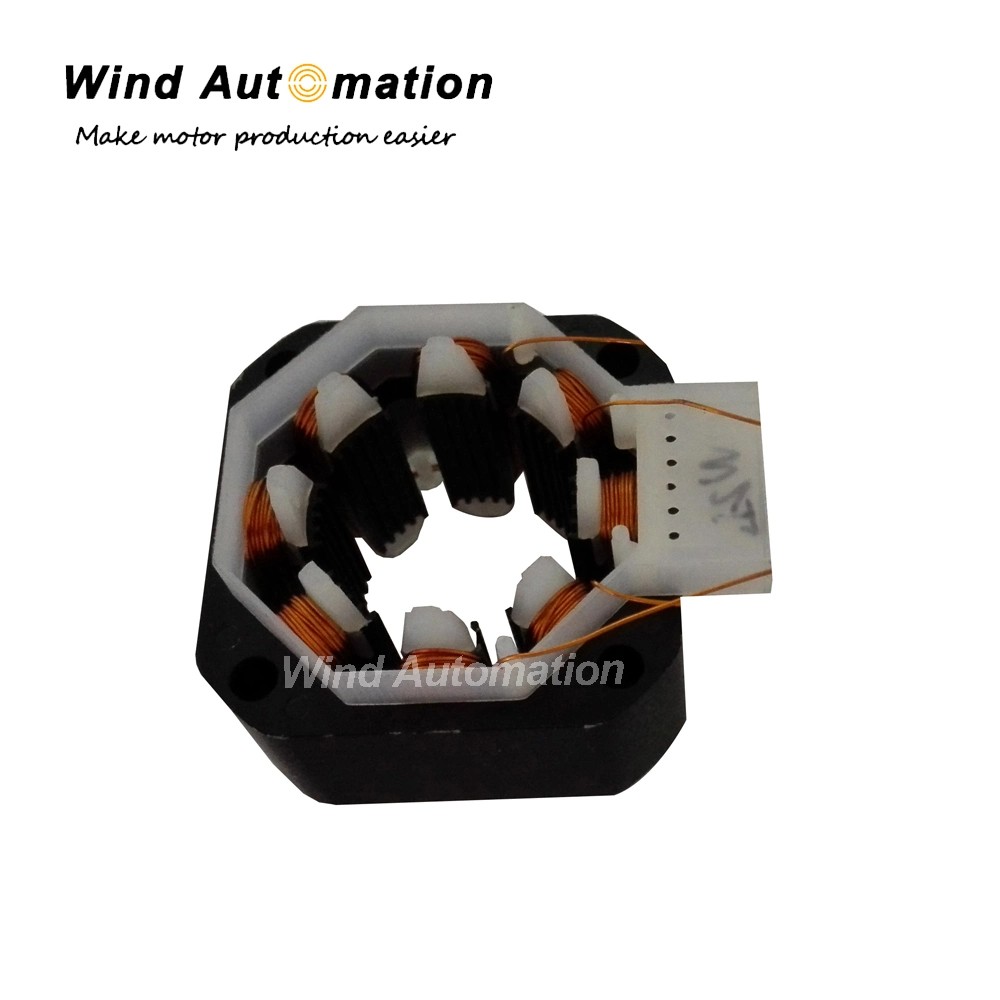

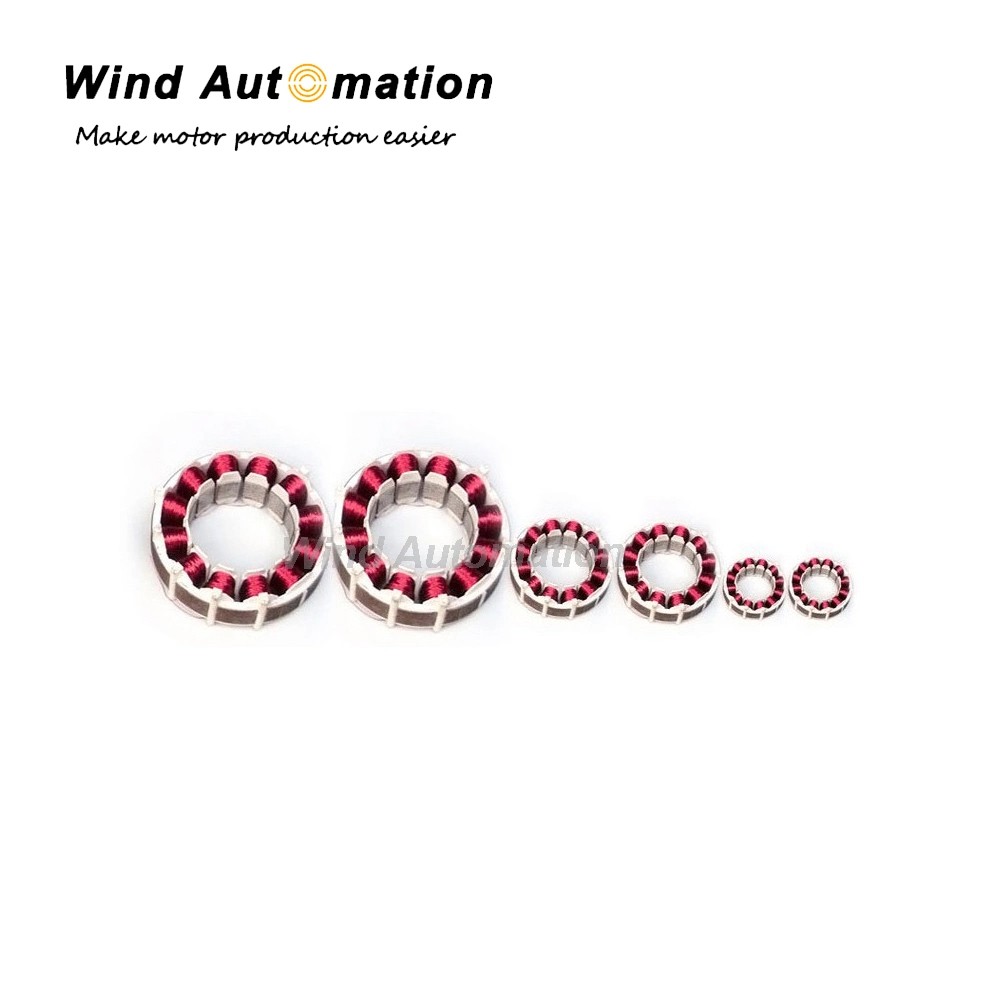

suitable for various types BLDC stators.
(3)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Precision performance of needle winding
Winding parameter adjustable according to different stators
