Product Description

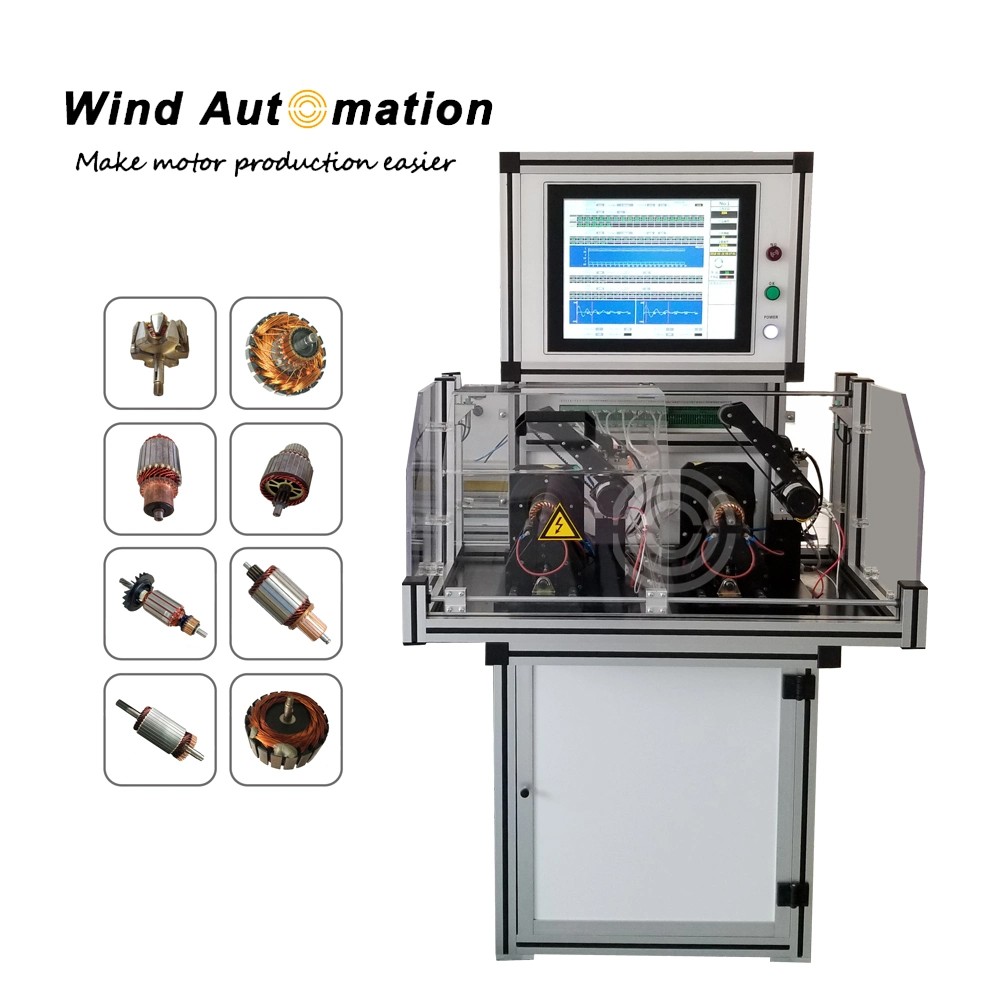

Meat Grinder Welding Resistance Testing Machine for Armature

Meat Grinder Welding Resistance Testing Machine for Armature

The voltage applied in the high voltage test is automatically generated by voltage regulation, which is stable and convenient.

(1) Testing item

Test Items	Test Description	Accuracy
Bar to Bar resistance	0.001Ω~1000Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Welding resistance	0.001mΩ-10mΩ	±10μΩ
Cross resistance	0.01Ω-1000Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Surge	100-2000Vpp (Max 3sets waveform)	±2.5%
Isolation resistance	DC 500V/1000V	0.1-500MΩ ≤±2.5% Full scale
Hipot	AC 100-2000V	0-20mA ≤±2.5% Full scale

(2) Application
Suitable for various types of DC motor armatures to do performance testing.

(3)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation.
