Product Description

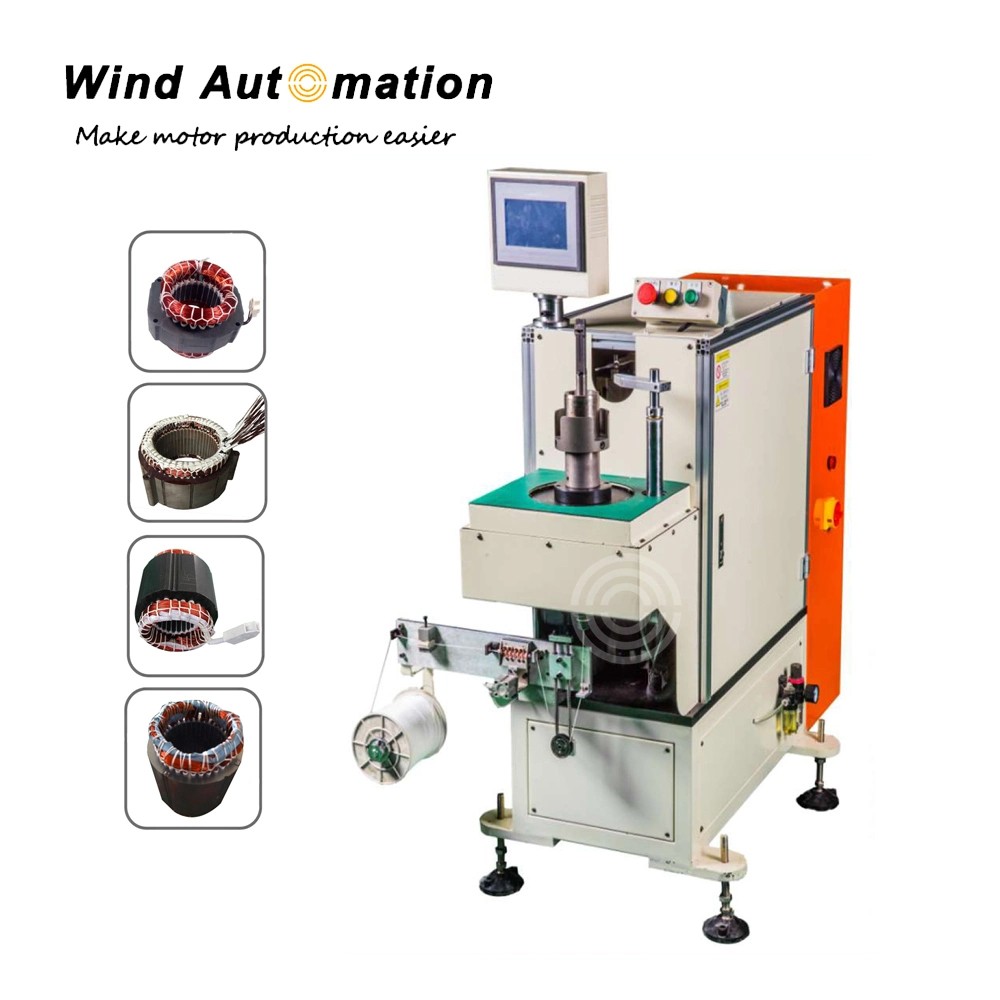

Single Side Coli Lacing Machine For Induction Motor Stator

This machine is used to do stator coil lacing. Several lacing modes are applicable, such as lacing slot by slot, interval slot, jump slot and fancy slot.


(1) Specification

(2) Application
This type of machine is suitable for small-sized AC motor, induction motor stators.

(3) Feature
Manual loading and unloading
Several lacing mode applicable
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Easy for operation, No skilled operator required



Stator coils lacing is the process of tightly securing the field coil ends of an electric motor stator with a stitched cord,

also called motor stator coil braiding.

Lacing is typically used on long-life-expectancy or high-efficiency motors such as some induction motor where the cost of failure is high. Generally, low-cost "throwaway" motors are not laced.

Stator Coil Knot machine Application:

For generator,Deep water pump,three phase motor insulation

 Advantages:

1. Use  the stator Inner side Diameter  to do positioning,  easy to change tooling

2.  Three servo motors ensure the easy adjustment of machine and smooth lacing,

      One Delta servo motor control the stator indexing

      One Delta servo motor control the nozzle movement (the nozzle guide the stitched cord)

      One Delta servo motor control the mechanical movement of the whole machine

3. One of the top sold machine during induction motor manufacturing machines,

    Upgrade every year per local user motor manufacturer's feedback
