Model NO.
WIND-400-VW
Specification
Middle Size
Trademark
Wind Automation
Origin
China
HS Code
8479811000
Production Capacity
100 Sets/Year

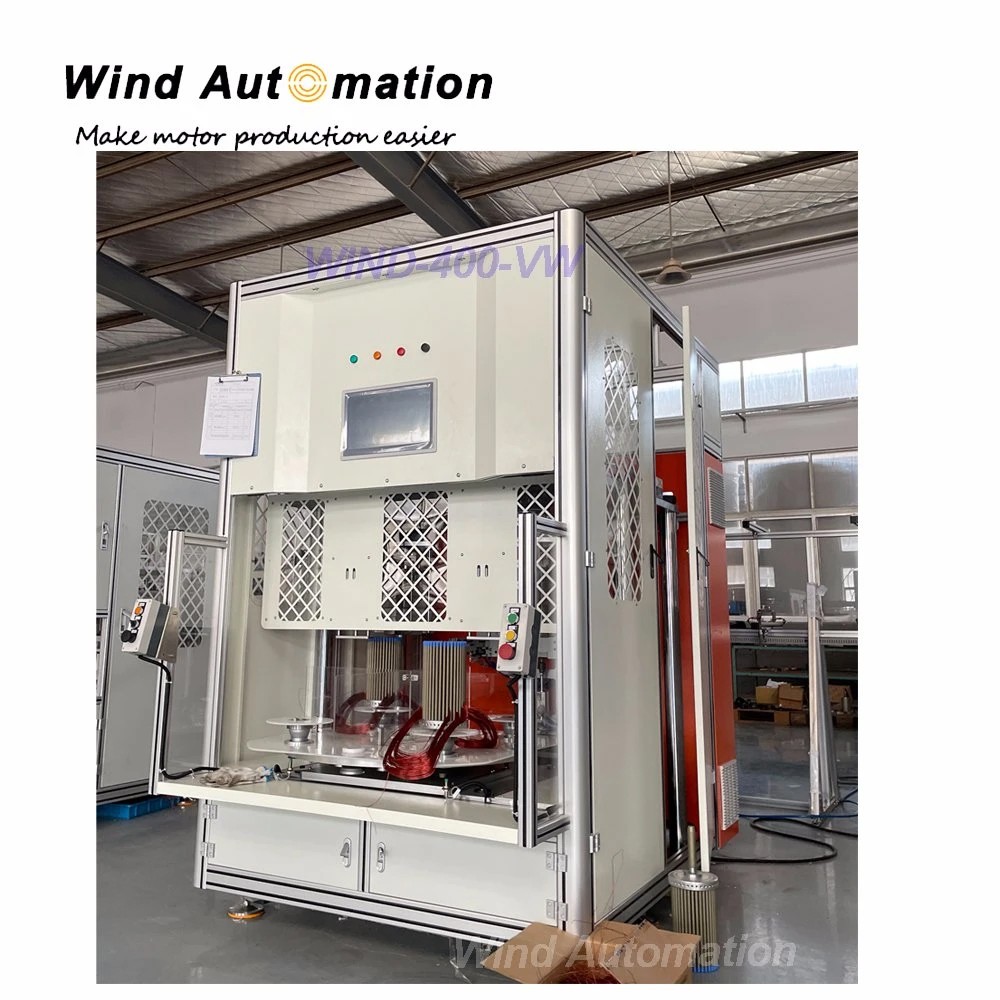

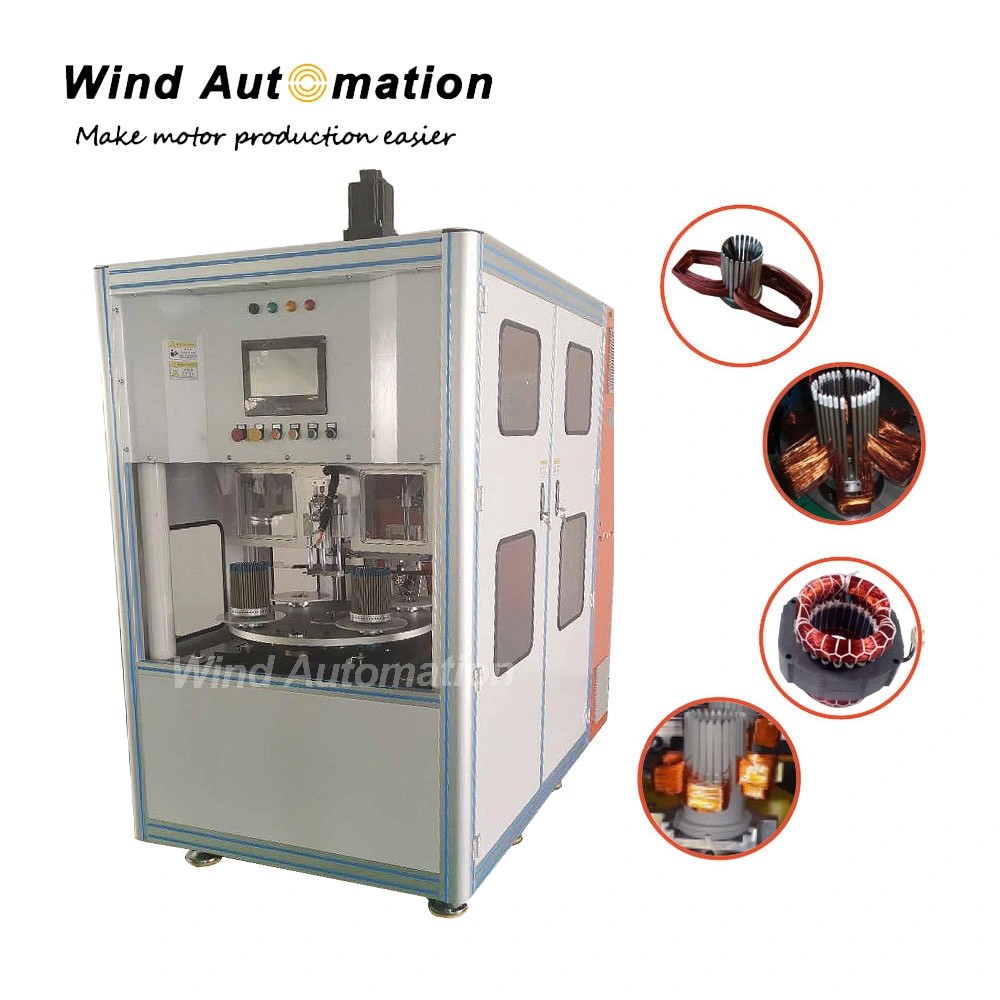

Small Notch Stator Shed Winding Machine
This machine is an high automation machine for stator coil winding. It is special design for stators with high production capacity requirement.
(1) Specification
| Wire diameter | 0.19~1.2mm |
| Winding head | 2 |
| Station | 4 |
| Max stator OD | 120mm |
| Core length | 65mm |
| Min stator ID | 400mm |
| Winding Speed | Max 2500r/min |
| Air pressure | Min 0.5Mpa |
| Power supply | 380V 1.5KW |
| Weight | About 4500kgs |
| Dimension | 2400x1900x2250mm |
(2) Feature
2 winding head 4 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system
No distinct vibration or noise during winding
Automatically stop if wire is run out
All winding parameter programmable on touch screen
(3) Application
This machine is suitable for mass production of 2 poles, 4 poles and 6poles coils winding.
