Turning-Lathe-for-Motor-Armature-Servo-Control

Basic Info.

Model NO.

WIND-3A-PL

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

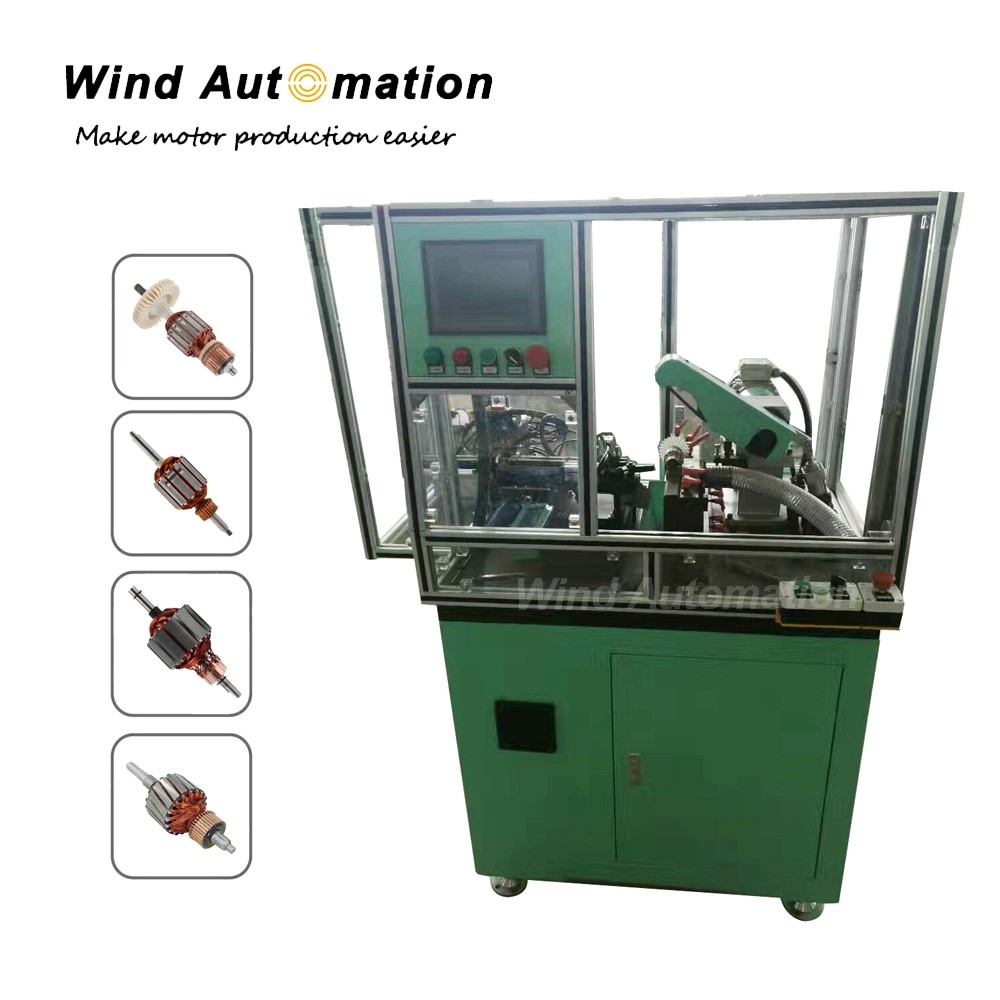

Turning Lathe for Motor Armature Servo Control

The turning tool is diamond material, also the tool holders and inserts can be custom made for lathing special material other than copper, aluminum .


(1) Specification

(2)Feature
1.Precise with three axis servo device control
2. Smallest commutator handled by lathed commutator precise turning machine :
     Turned window lifter small armature commutator OD 7mm, Shaft OD 3.0mm
3. This turning machine can work with two cutters if required for different turning direction
4. The turning tool is diamond material, also the tool holders and inserts can be custom made for lathing special material other than copper, aluminum


(3)Main configuration
Z Axis Mitsubishi Servo system (Turning length)
X Axis Mitsubishi Servo system (Turning depth)
Y Axis Mitsubishi Servo system (Press Arm)
Touch screen: Mitsubishi
Taiwan TBI Ball screw rod
Taiwan Airtac cylinder



Air pressure: 4~6kg/cm2

Fixture: diamond V shape journal

Total power: 2.5KW

Machine power: 50/60Hz AC220V±10%(single phase)

Burring removing machine power: 50/60Hz AC230V±10%(single phase)

Vacuum cleaner power: 1.5KW,50/60Hz AC380V±10%(three phase)

Weight: about 1,100Kg

Machine dimension: 1,300mm x 900 mm x 1600mm3
