Product Description

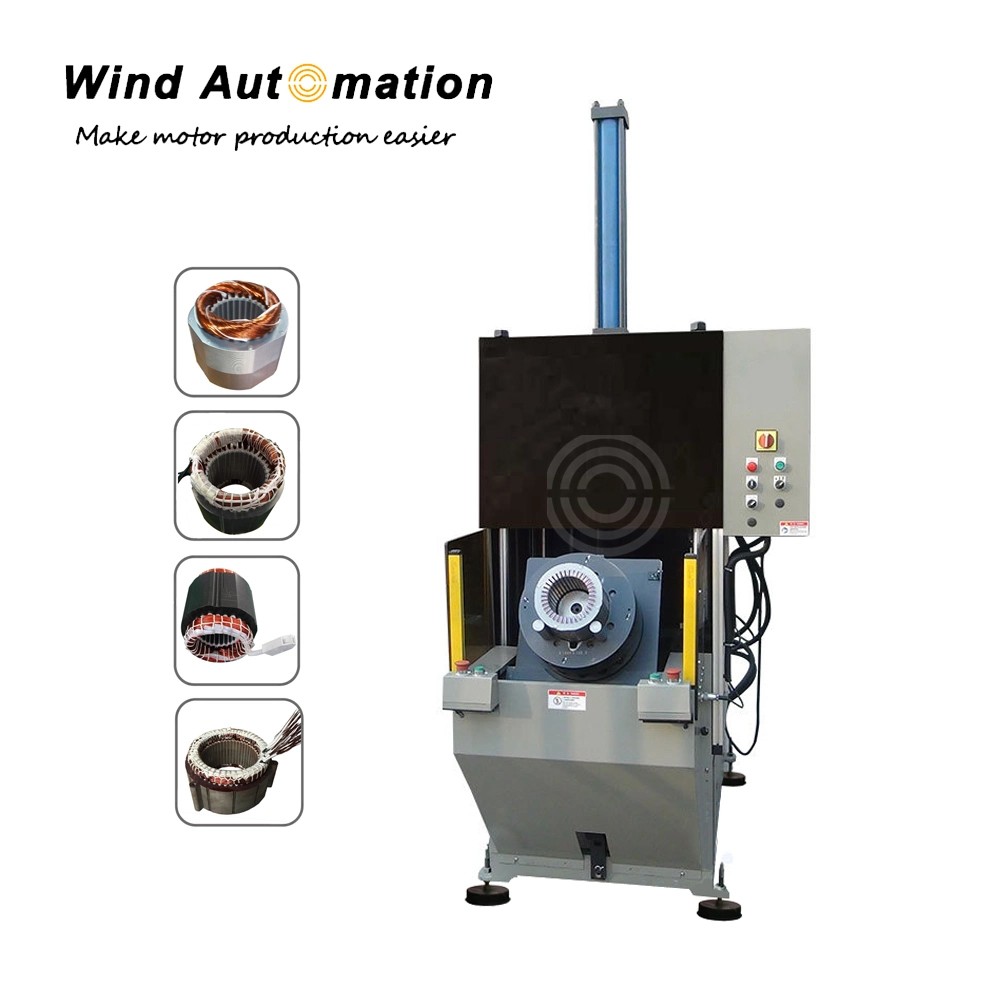

Stator Winding Forming Machine Coil Shaping Machine

Stator Winding Forming Machine Coil Shaping Machine

(1) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly

Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required


(2) Specification

Stack length16~100mm
Stator ID30~100mm
Stator ODMax 160mm
Oil pump displacement20F
Power supply380V 50HZ
Weight1000KG
Dimension1200x750x2500mm


(3) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.

Stator Winding Forming Machine Coil Shaping Machine
Stator Winding Forming Machine Coil Shaping Machine
Stator Winding Forming Machine Coil Shaping Machine


Stator Winding Forming Machine Coil Shaping Machine
