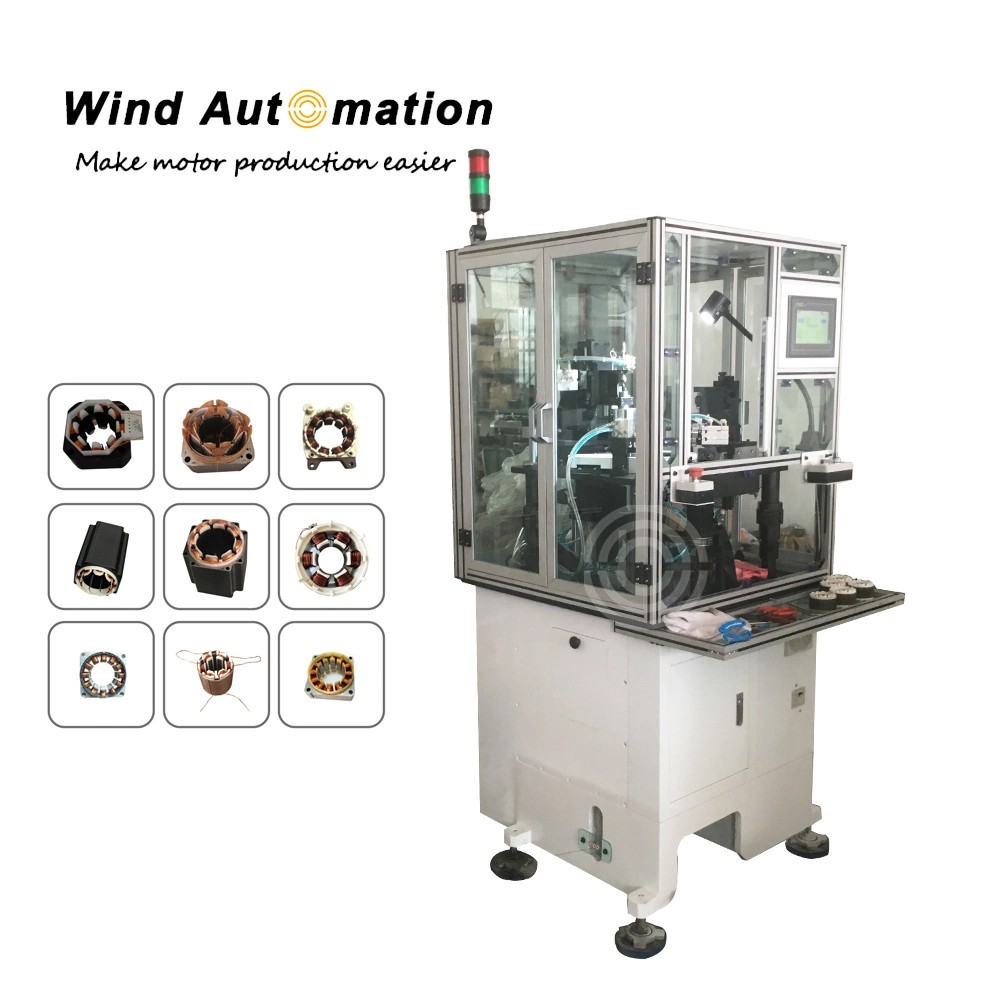

18 Slot Brushless Motor Stator Shroud Coil Winding Machine
This type of shroud winding machine is designed to produce multi poles stator. Its winding track is in square shape. It does wires arraying automatically.
(1)Specification
| Wire diameter | 0.08~1.2mm |
| Stator ID | 19~65mm |
| Stack length | 7~110mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,9,12,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 750KG |
| Dimension | 1600x1100x1400mm |
(2)Application
suitable for various types stators with narrow slot width but high slot filling rate.
(3)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system
(5)Machine working station
