Automatic-Two-Needles-Stator-Coil-Lacer-for-AC-Motor

Product Description

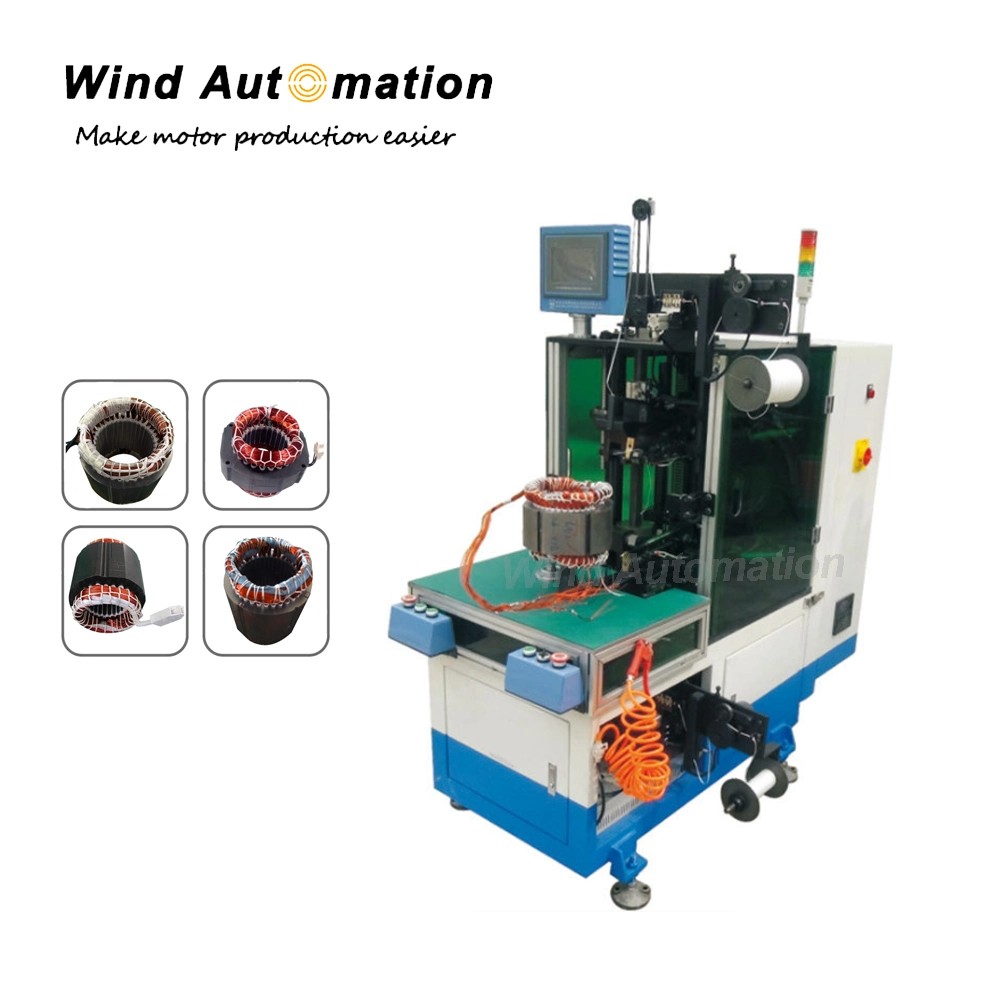

Stator End Coil Lacing Machine For Cooler Motor Coil Manufacturing

This machine is designed to do stator coil lacing. There are lots of lacing modes available, such as slot-by-slot lacing, slot-skipping lacing or fancy lacing.

(1) Specification

(2) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.

(3) Feature
Double side lacing
High quality level of the lacing process
Manual loading and unloading
Several lacing mode applicable
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
The entire working cycle is fully automatic excluding manual loading and unloading
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
Different lacing modes available, slot-by-slot lacing, slot-skipping lacing or fancy lacing
