Air-Conditioner-Coil-Winder-Compressor-Stator-Winding-Machine

Product Description

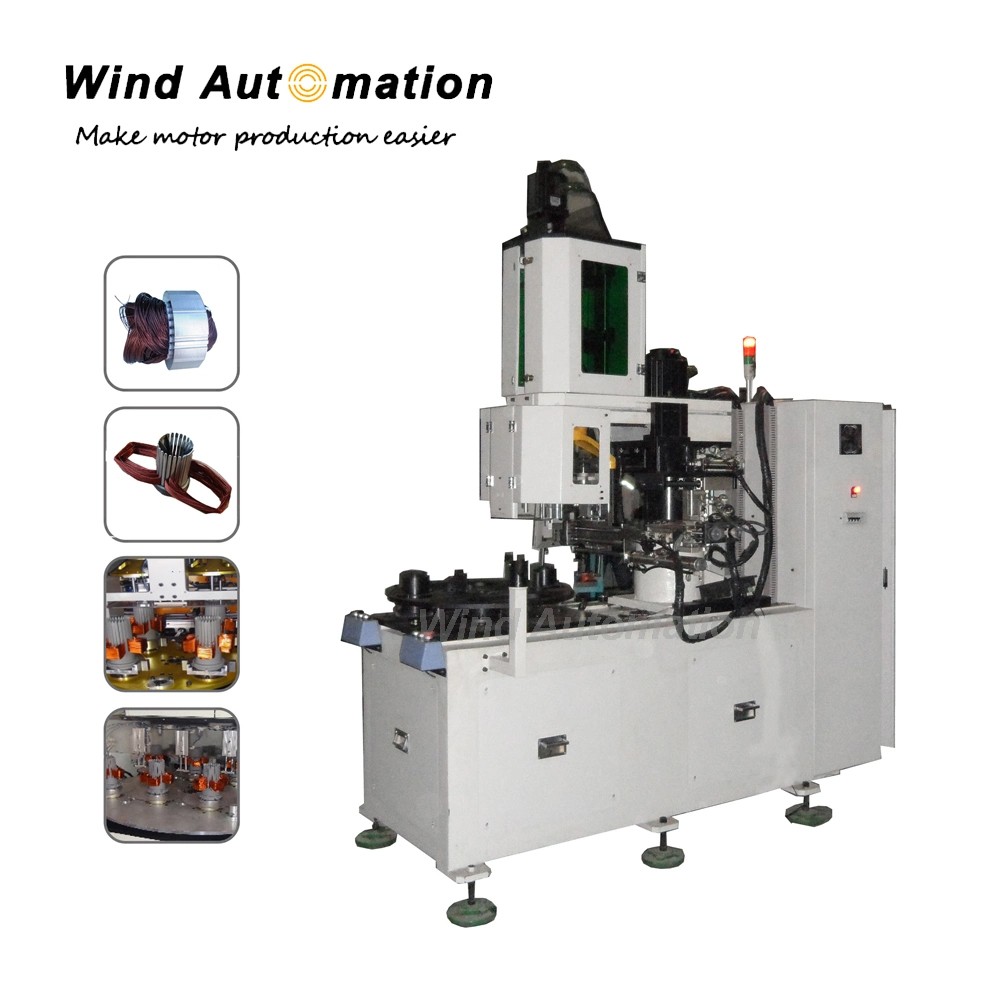

Air Conditioner Coil Winder Compressor Stator Winding Machine

This winding machine can automatically put the coil into transfer former orderly for the succeeding coil inserting process.

(1) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(2) Specification

(3) Feature
Manual unloading coils after winding
Single winding head two working stations
All winding parameter programmable on touch screen
Rotation and indexing controlled by servo system
Tooling change and software adjustment within 15min
No distinct vibration or noise during winding
Automatically stop if wire is run out

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.
