Submersible-Motor-Stator-Insulation-Paper-Inserting-Machine

Basic Info.

Model NO.

WIND-450-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

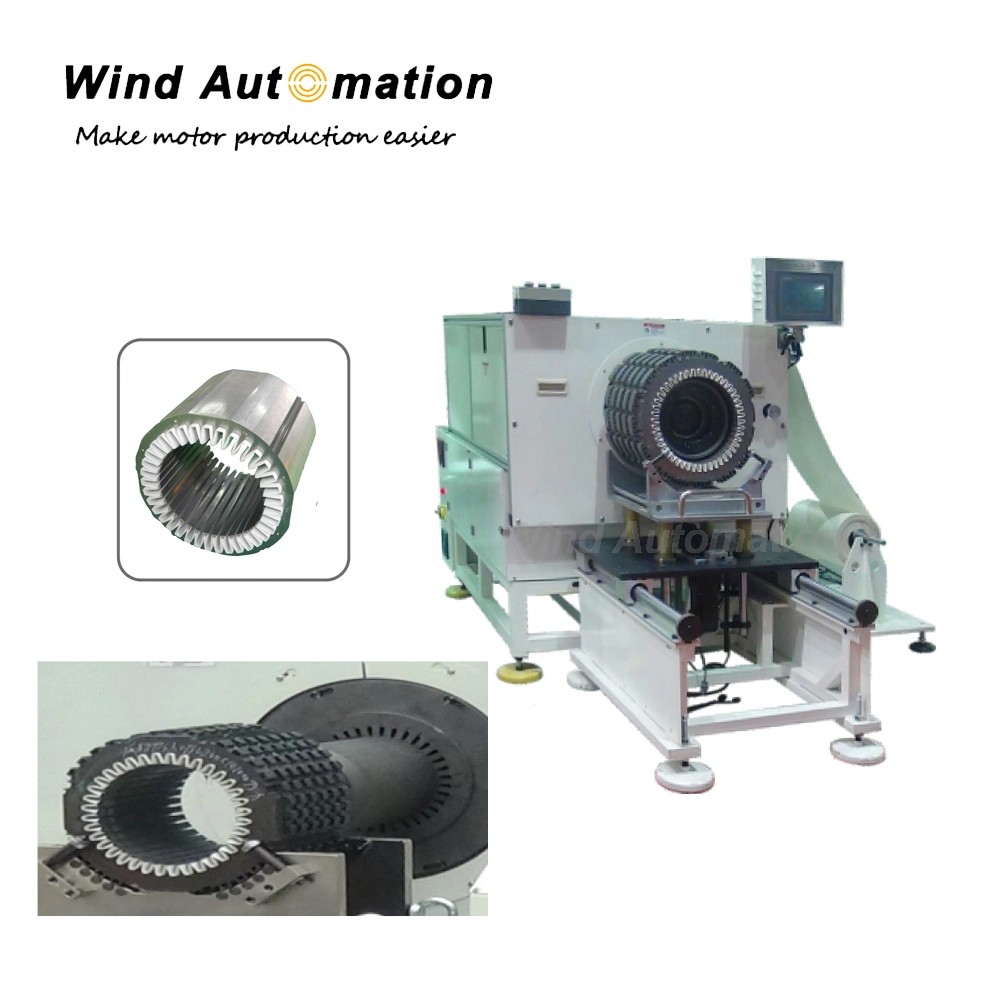

Submersible Motor Stator Insulation Paper Inserting Machine

Submersible Motor Stator Insulation Paper Inserting Machine

This type of stator paper inserter is suitable for large and medium-sized motor stators with a low volume but a high mix of production. Modular design enable the tooling changeover within 30min. Machine structure is mainly controlled by servo system, instead of mechanical transmission.

(1) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency

Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process


(2) Specification

Stack lengthMax 350mm
Stator IDMax 350mm
Stator ODMax 450mm
Cuff height4~7mm
Paper thicknessMax 0.35mm
Cycle time2.5 s/slot
Power supply380V 50/60HZ
Air pressure 0.5MPa
Weight1150KG
Dimension2630x1150x1500mm


(3) Application
This type of stator paper inserter is suitable for large and medium-sized motor stators with a low volume but a high mix of production.

Submersible Motor Stator Insulation Paper Inserting Machine Submersible Motor Stator Insulation Paper Inserting Machine
Submersible Motor Stator Insulation Paper Inserting Machine
