Hybrid-Car-Motor-Hairpin-Forming-Production-Hairpin-Coil-Wire-Winding-Machine

Packaging & Delivery

Package Size

150.00cm * 120.00cm * 100.00cm

Package Gross Weight

1200.000kg

Product Description

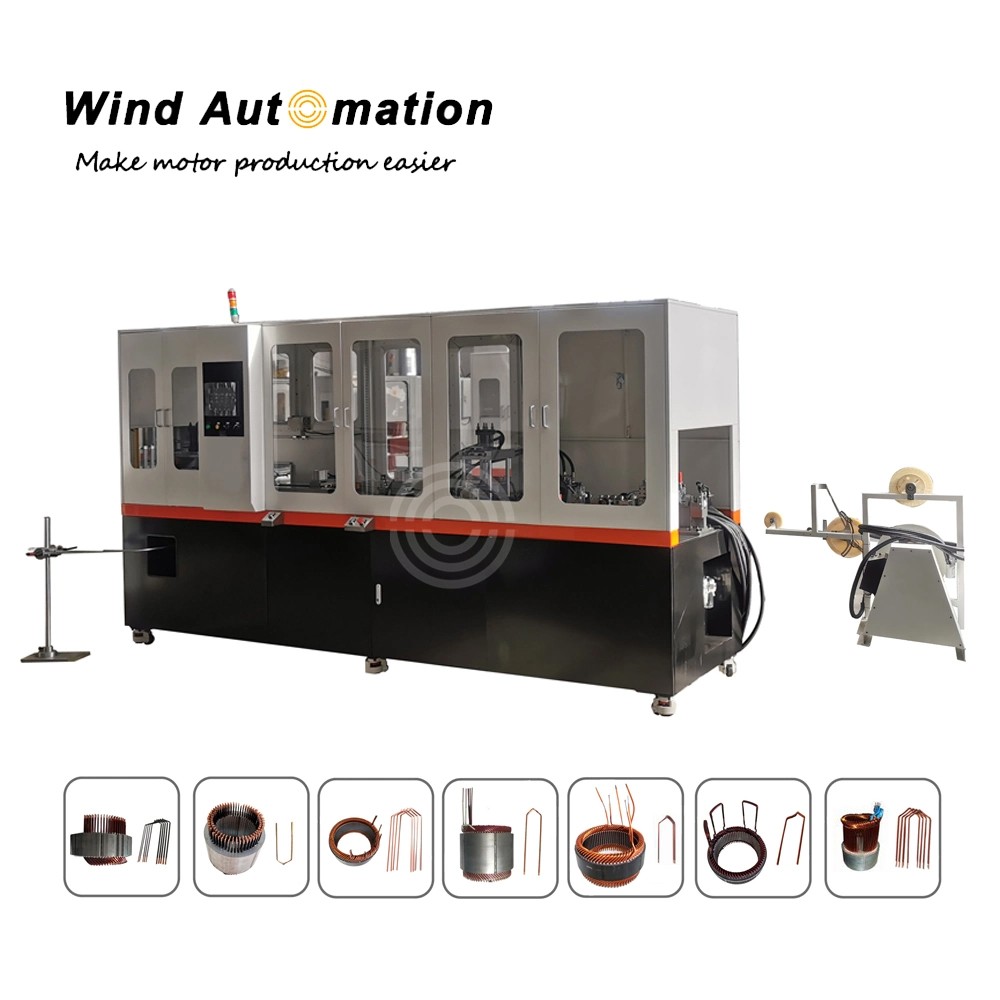

Hybrid Car Motor Hairpin Forming Machine Hairpin Coil Wire Winding Machine

This Hairpin Coil Forming Machine can automatically turn single rectangle bare copper wire into haripin shape coil. During forming, one operator is quite enough to operate this machine.

(1)Specifications

(2) Application
This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
