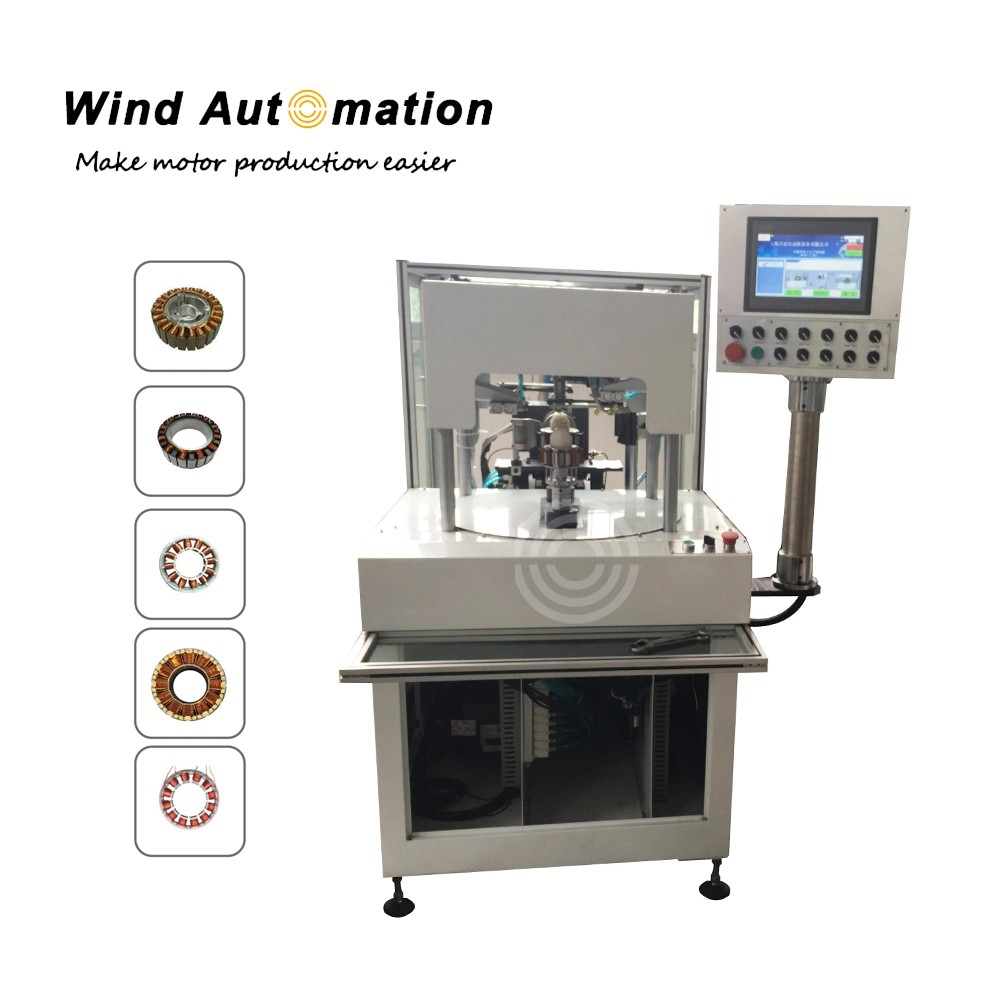

Magneto Motorcycle Winding Solution Outer Stator Winding Machine
This stator winding machine has two movement, stepping and auto. It covers a wide wrie diameter from 0.15mm to 1.5mm. It can wind both odd and even slot number stators.
(1) Specification
| Wire diameter | 0.15~1.50mm |
| Rotor O.D | 15~260mm |
| Slot number | Multi poles |
| Turn no | 0~99999 |
| Movement | Stepping / Auto |
| Stack height | 7~60mm |
| RPM | Max 1500RPM |
| Voltage | 220v/50Hz |
| Power | 2.5 KW |
| Air source | 5~7kg/m3 |
| Weight | 600Kg |
| Dimension | 1150X2350X1500mm |
(2) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
(3) Application

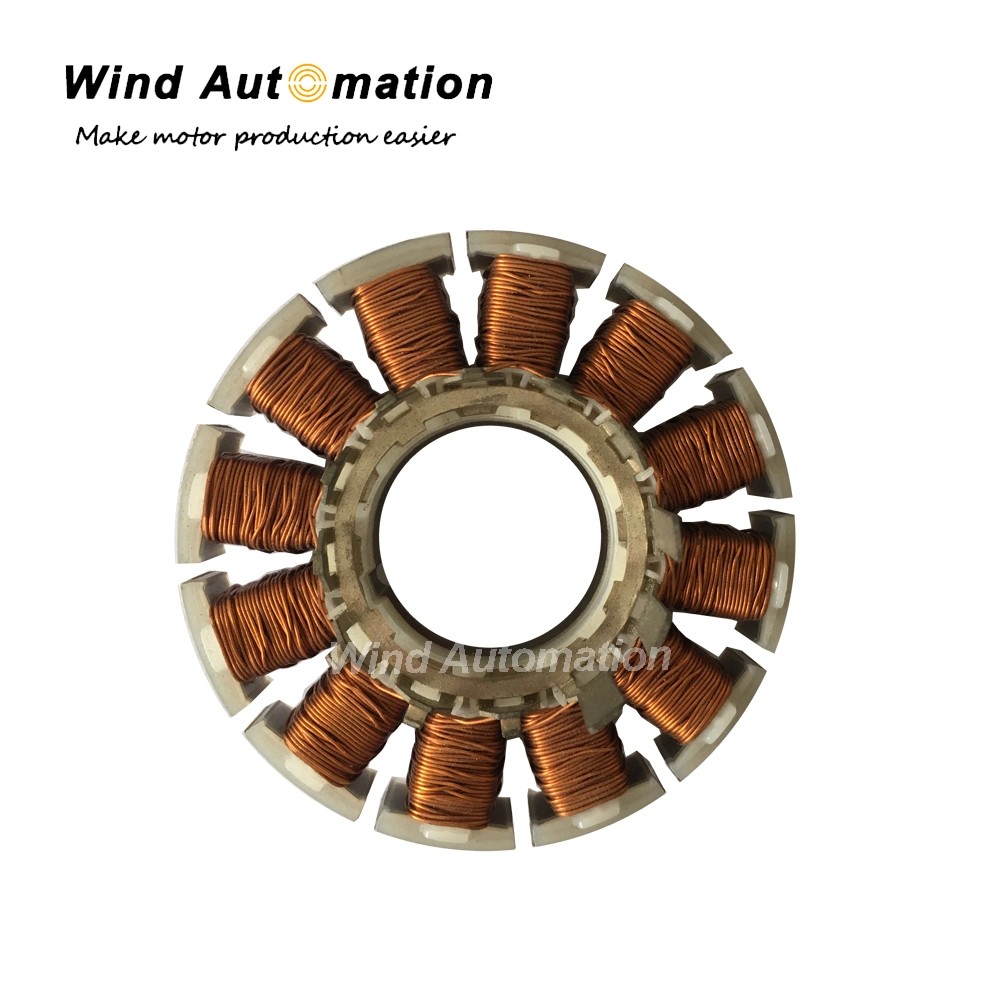

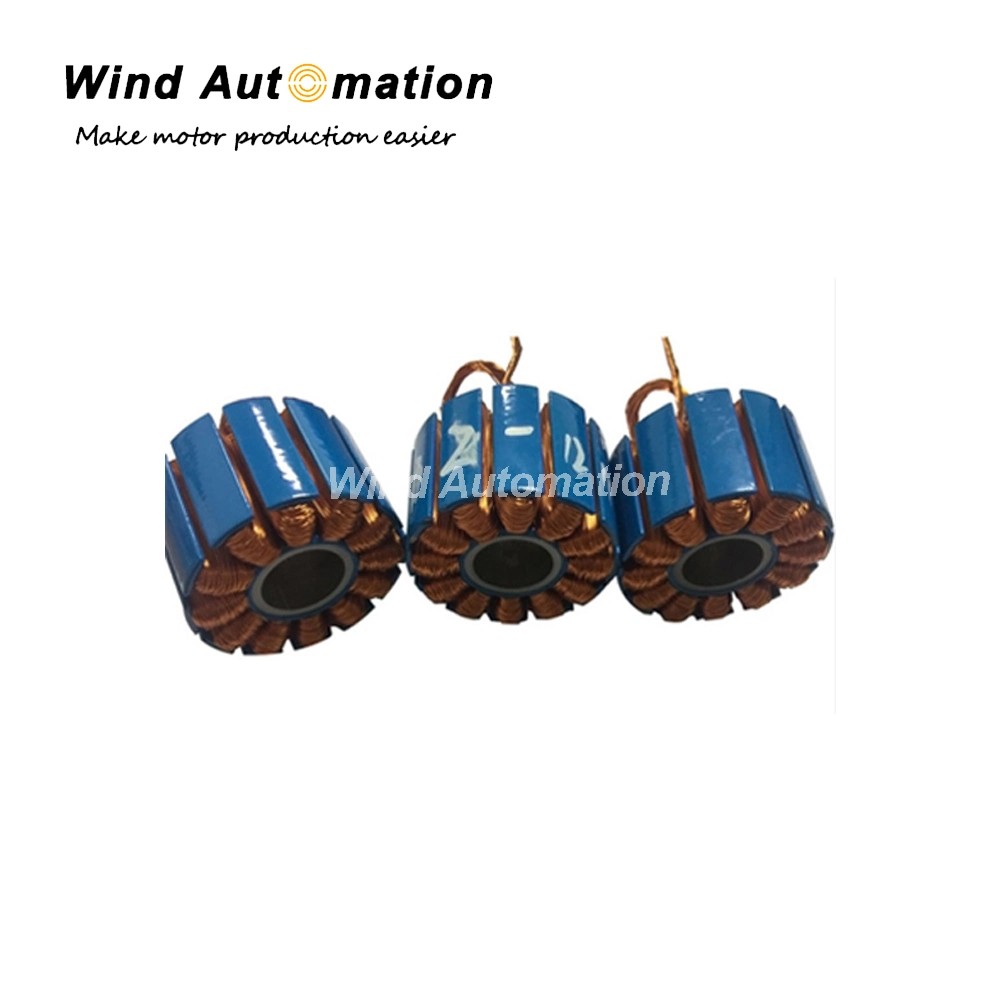

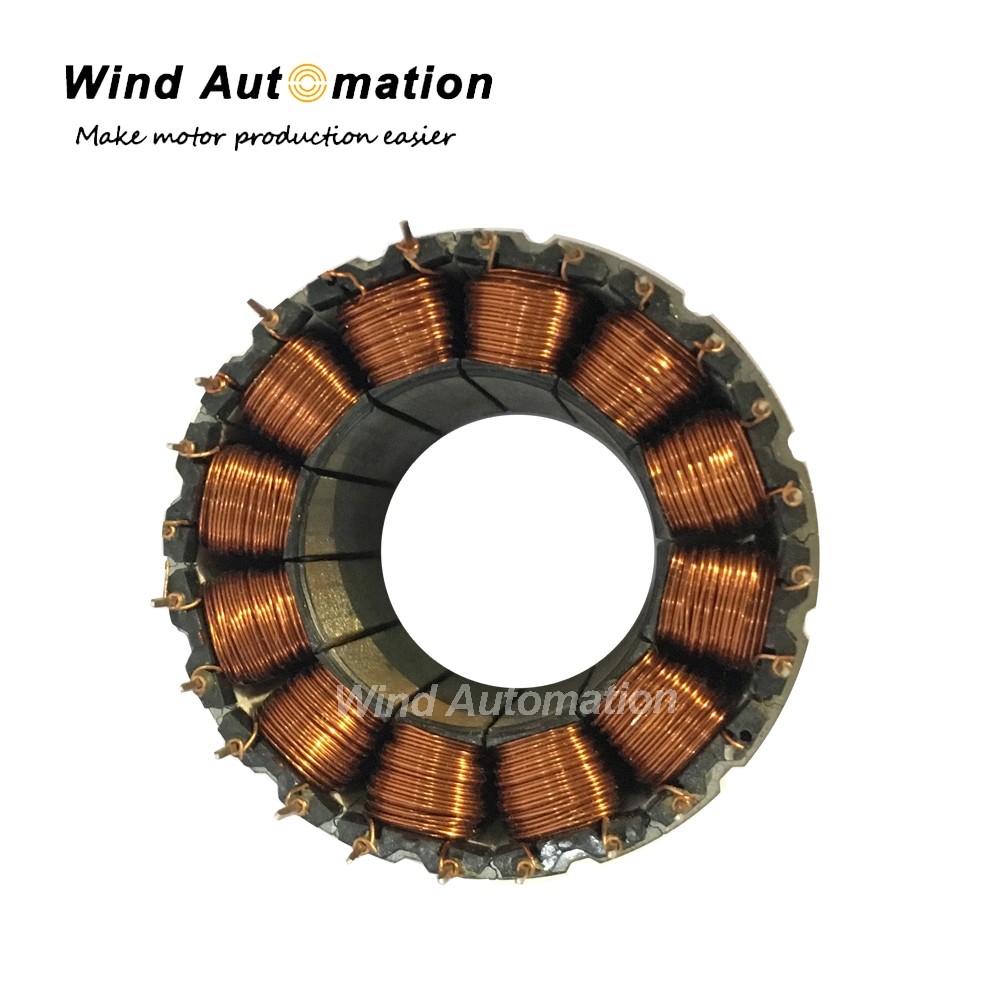

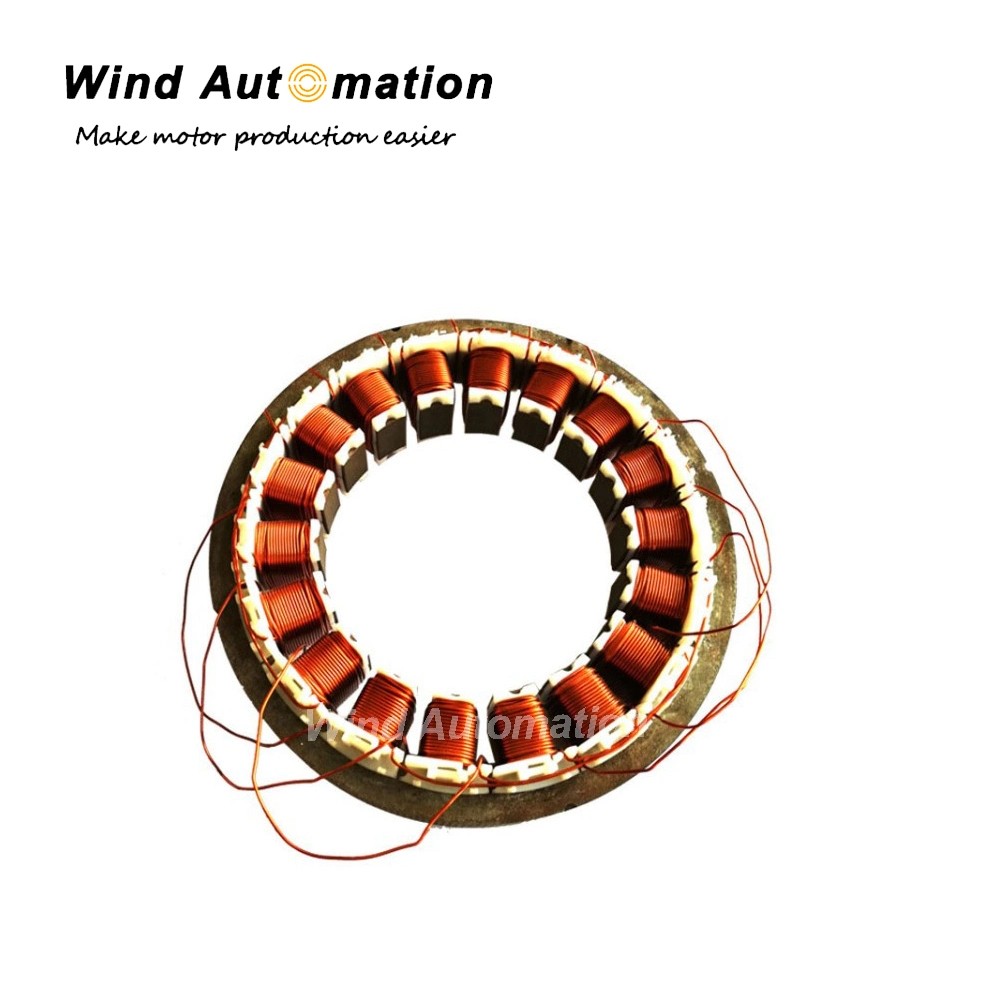

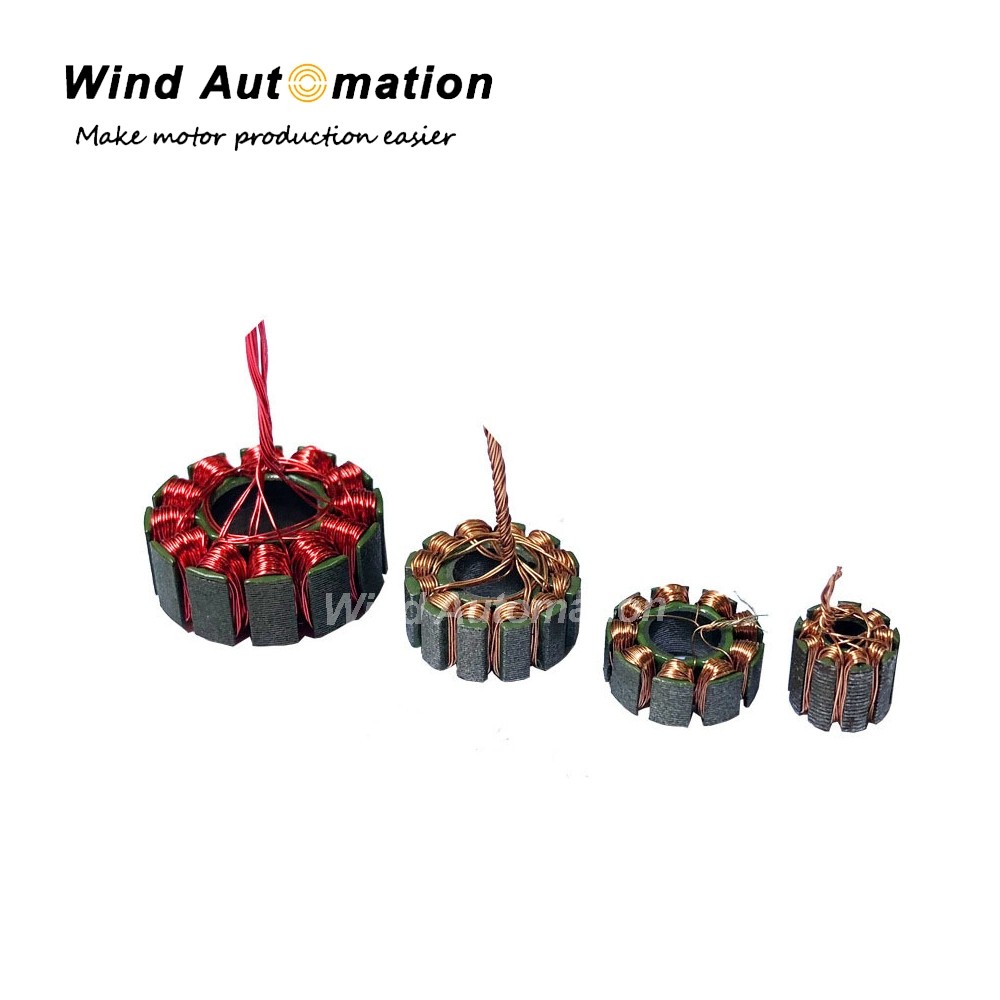

Suitable for magnetic motor, digital generator, washing machine motor, air conditioner motor.
