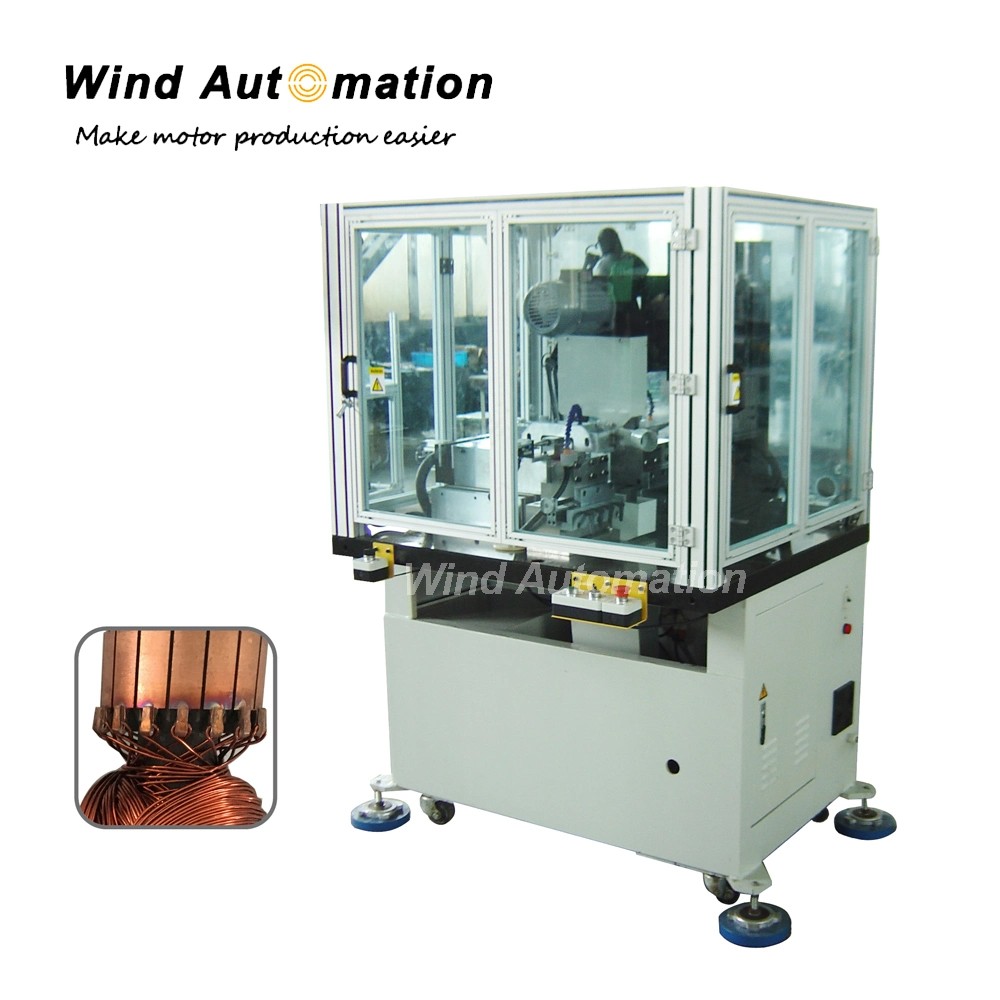

Vacuum Cleaner Motor Rotor Automatic Commutator Spot Welding Machine
Under auto mode, press emergency stop. Machine will stop immediately. Switch stop button, press running preparation on the touch screen, then press start button. Machine will work again.
(1) Specification
| Wire diameter | 0.1mm-1.2mm |
| Armature OD | 10mm-50mm |
| Shaft OD | 5mm-15mm |
| Commutator OD | 15mm-40mm |
| Bar No. | ≤36 |
| Commutator type | both hook type and raise type |
| Current range | 0.5-50KA |
| Welding voltage range | 0.1-9.99V |
| Welding power range | 1.00-99.99KW |
| Cooling method | Water cooling |
| Air source | 4~6kg/cm2 |
| Power supply | AC380V 50HZ |
| Machine weight | 800KG |
(2) Features
Suitable for both riser and hook type commutator
Three welding method and four powder control method
PLC control
Quick change-over of tooling
Provide customized service
Integrable in a production line
(3)Maintenance
1)Injecting the grease to moving parts of the machine 1 time per 12-15 days to keep machine running smoothly and extend the machine life.
2)Inject anti-corrosive oil regularly under humid environment.
3)Avoid fierce knocking of machine framework
4)Keep the machine clean
5)Check water tank and water pipe connector regularly.
