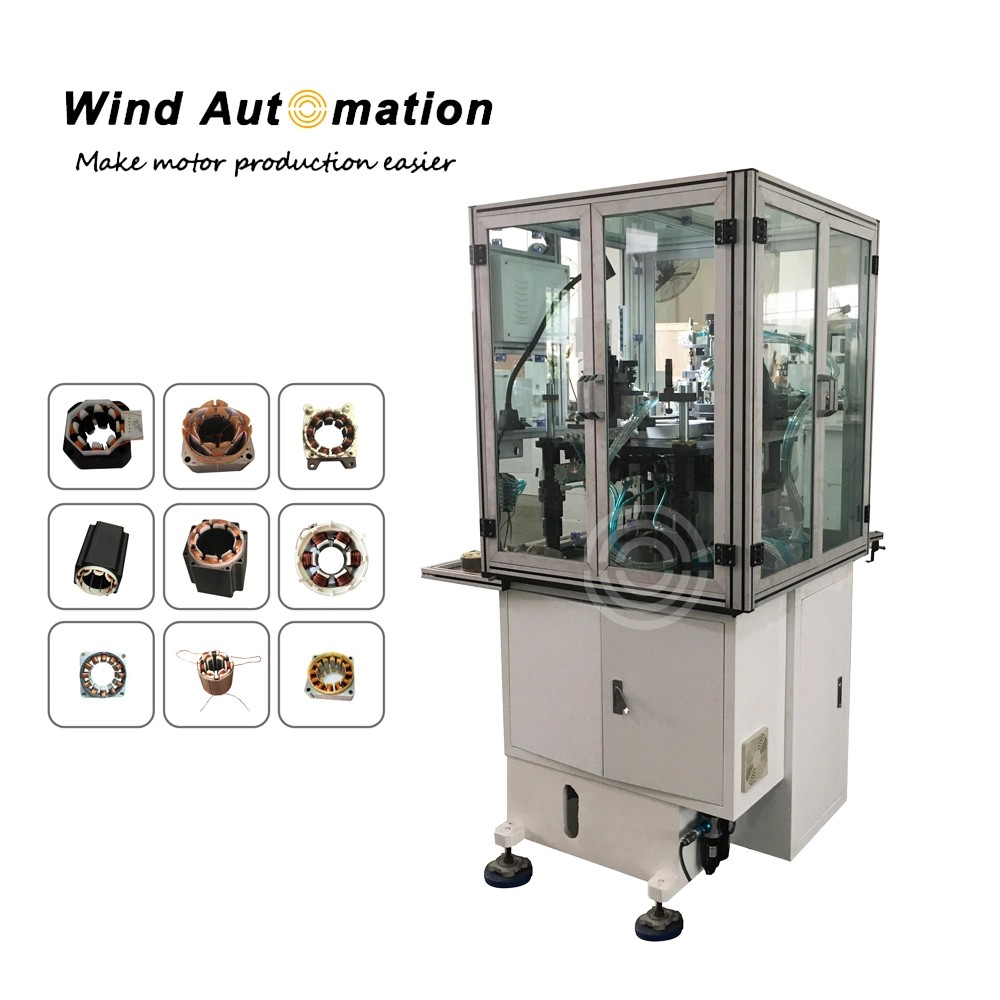

Three Needles Muti-Poles Stator Inslot Winding Machine
This type of inslot winding machine has 3 needles to do coil winding. It can do widning, arraying, cutting, demoulding automatically. The winding track is in square shape.
(1)Specification
| Wire diameter | 0.08~1.2mm |
| Stator ID | 19~65mm |
| Stack length | 7~110mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,9,12,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 750KG |
| Dimension | 1600x1100x1400mm |

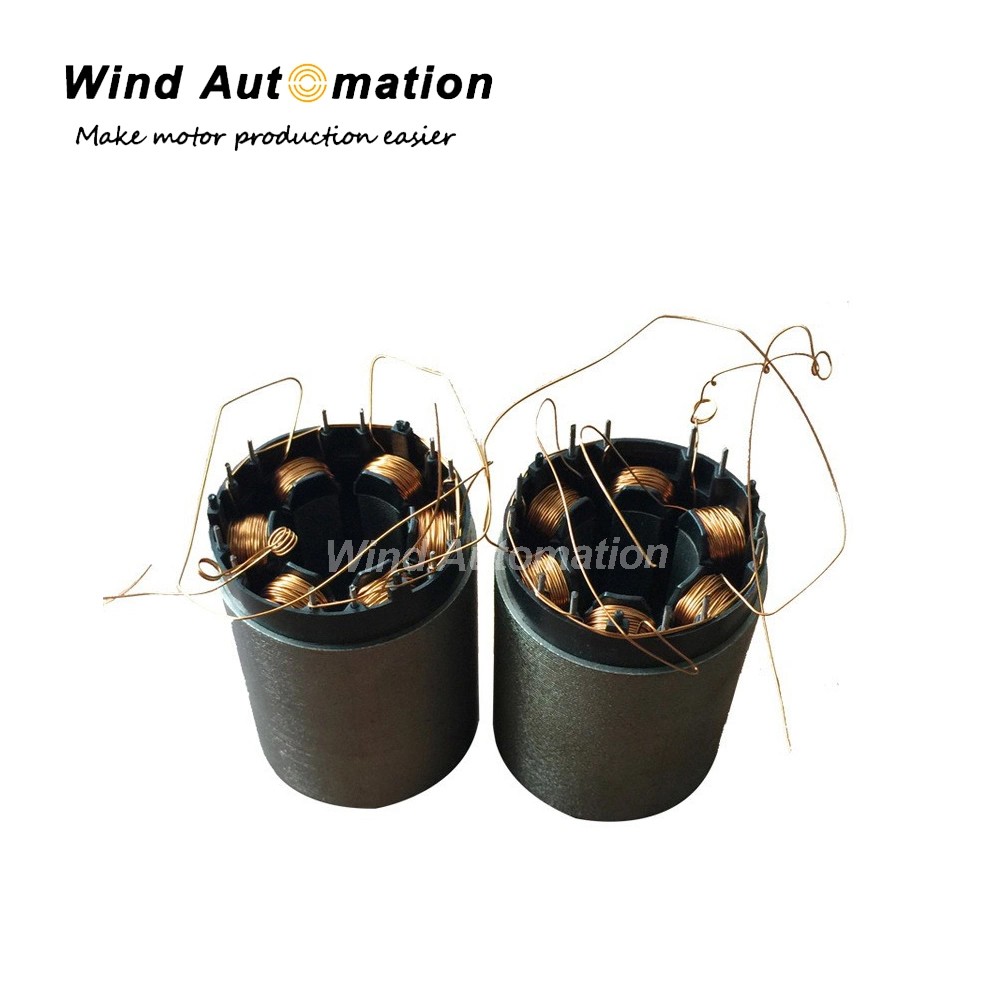

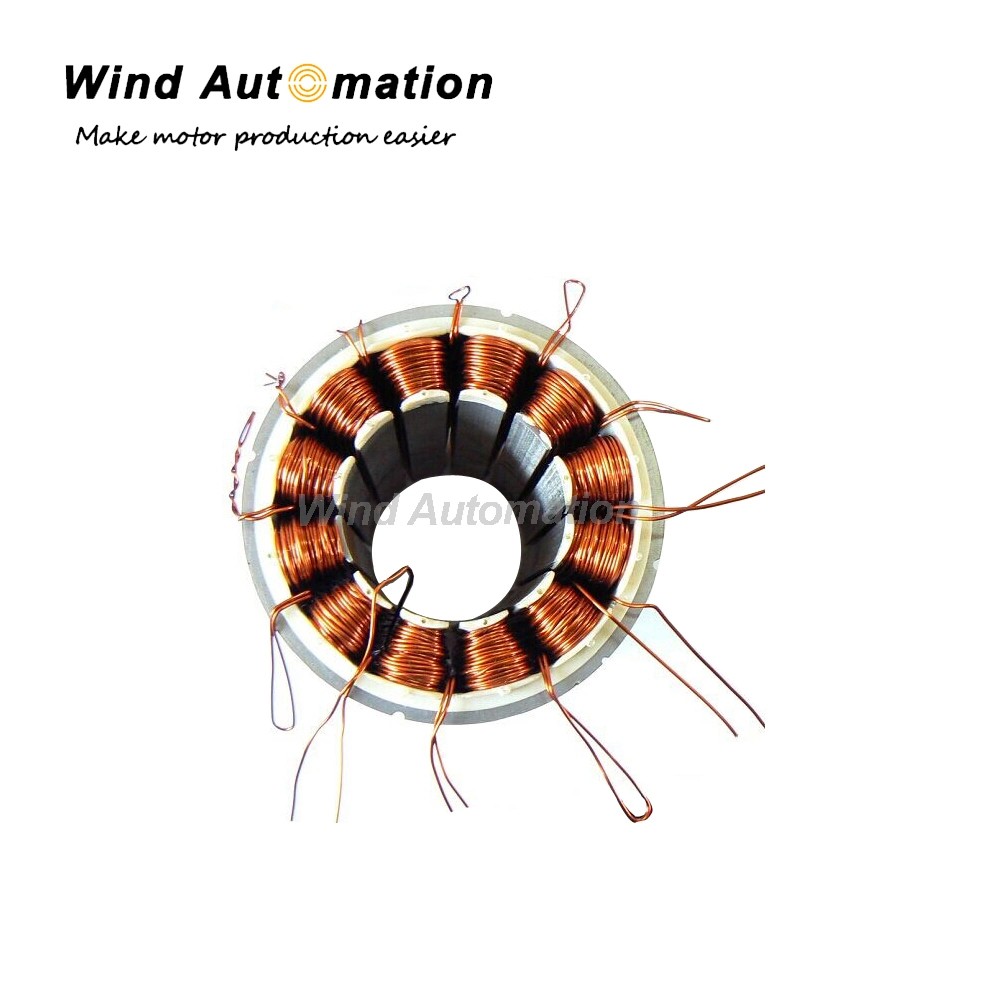

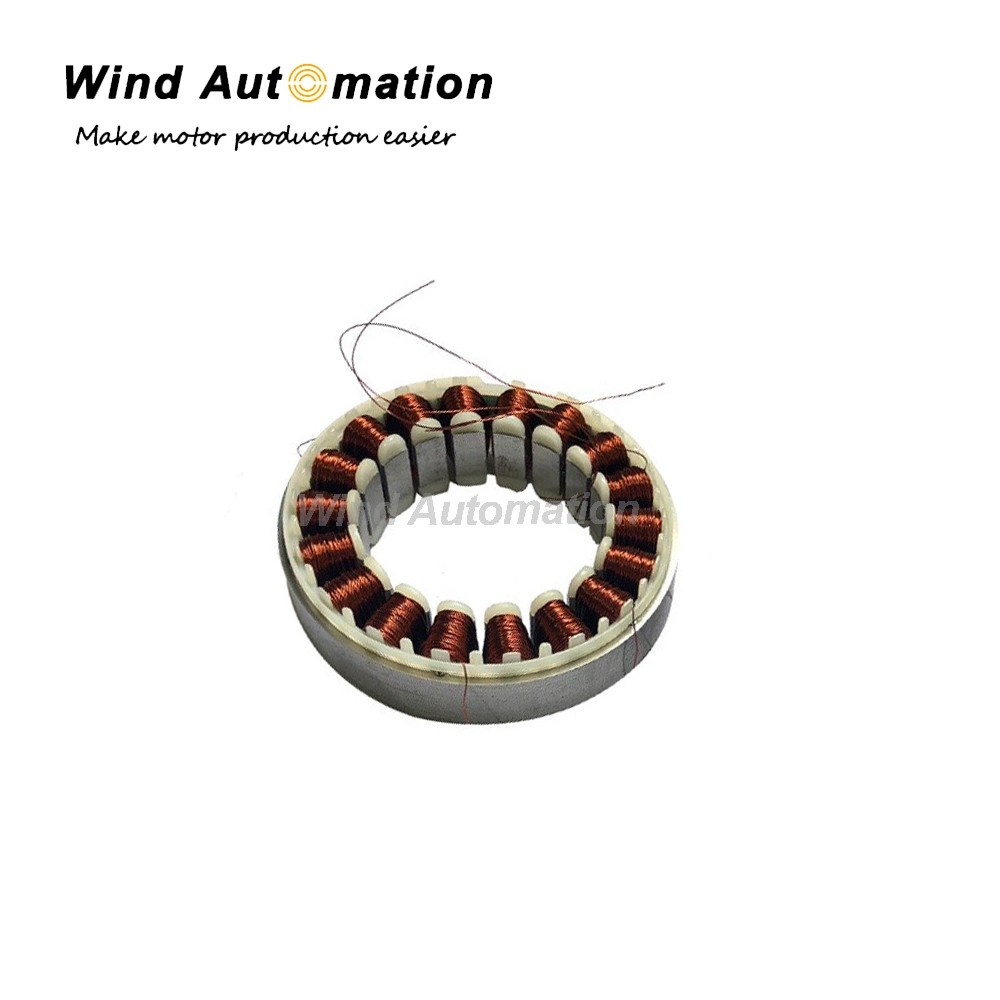

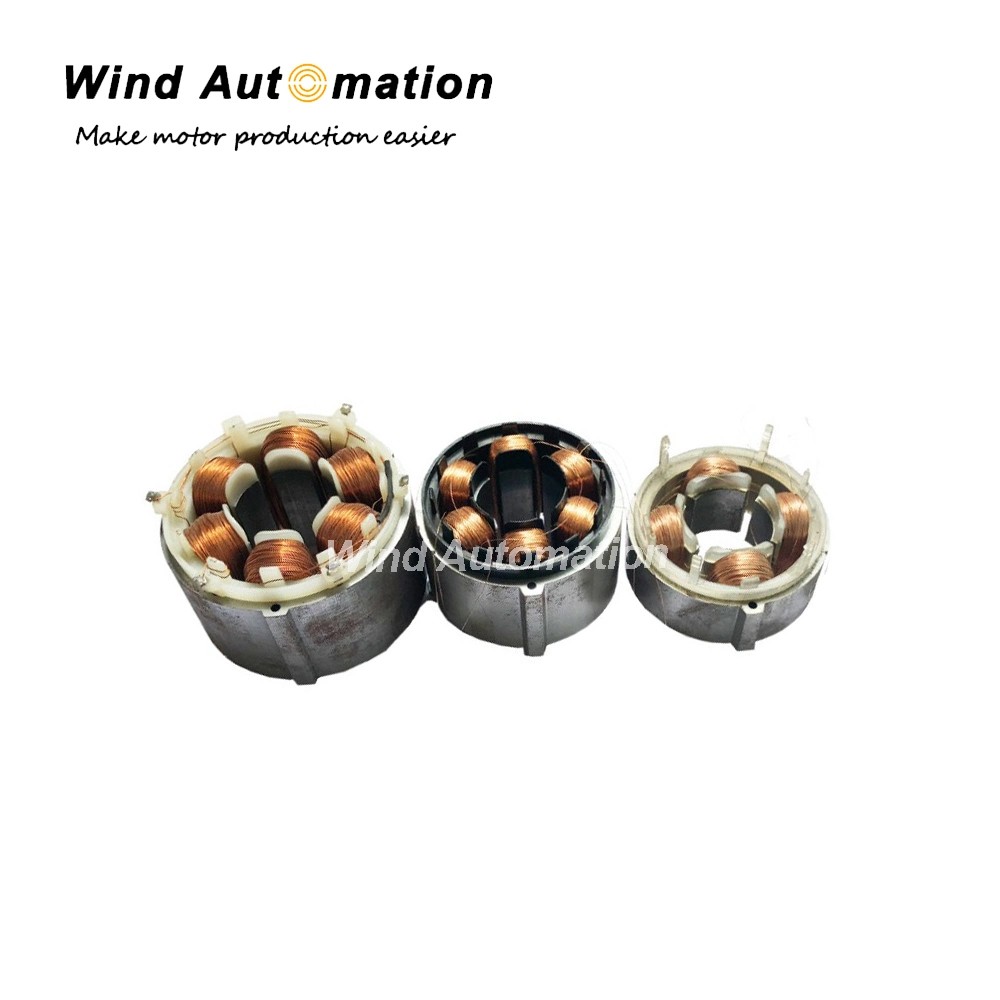

(2)Application
suitable for various types stators with narrow slot width but high slot filling rate.
(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system
(4)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

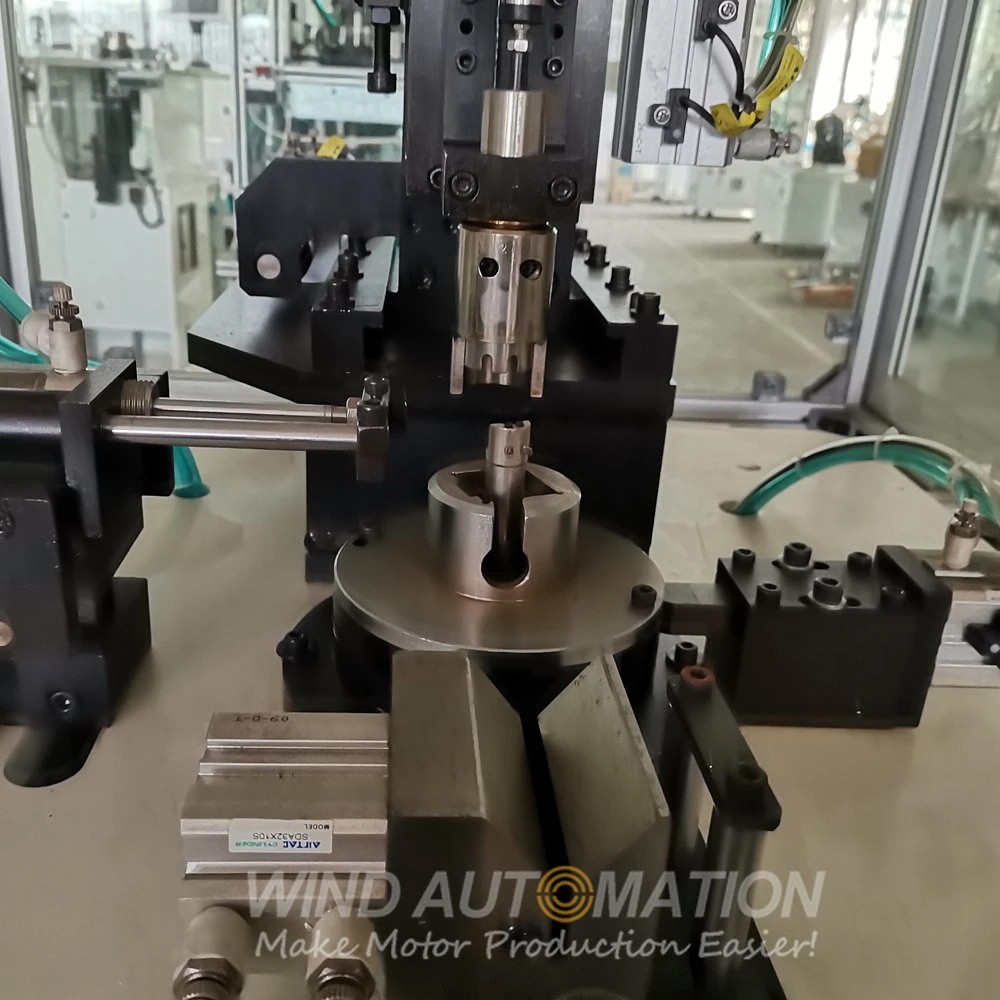

(5)Machine working station
