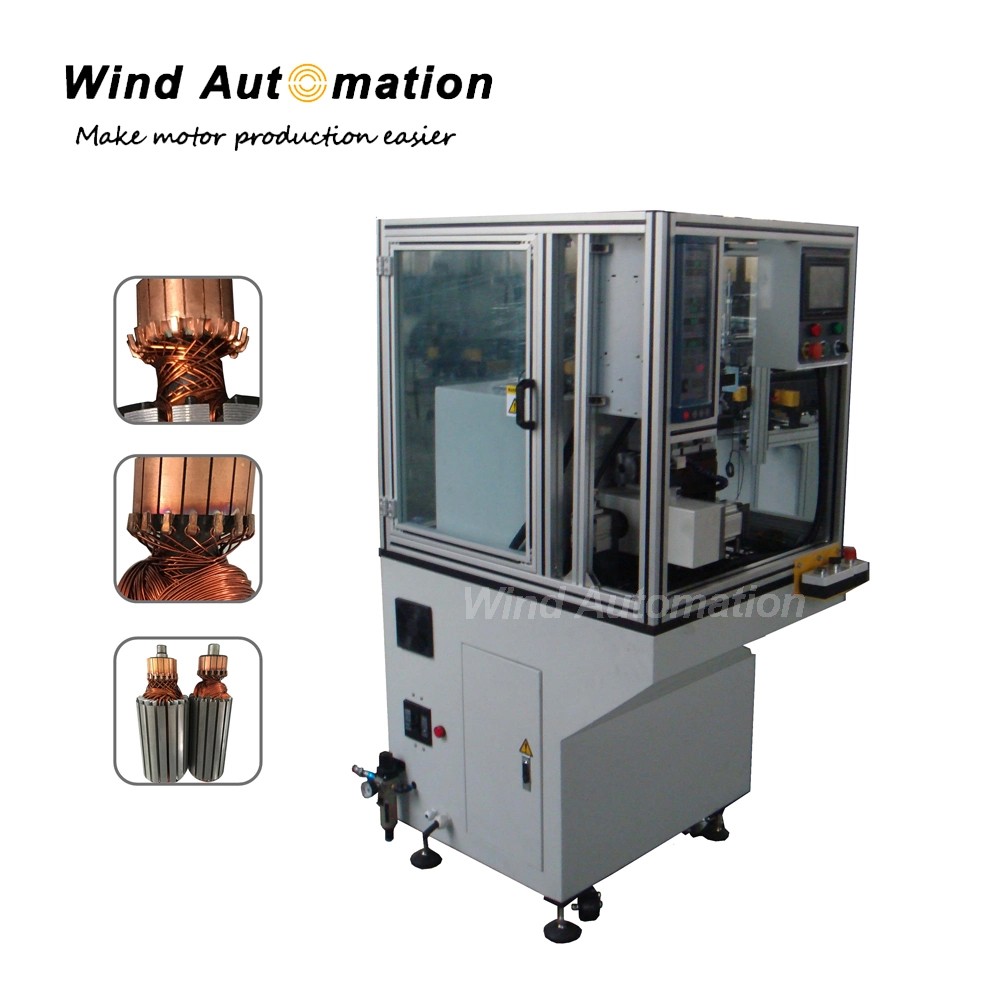

Automatic Commutator Welding Machine For Refrigerator
This type of Commutator hot-stacking machine is able to weld armature commutator. It can be applied as a stand-alone machine or integrated into a production line.
(1) Features
Suitable for both riser and hook type commutator
Three welding method and four powder control method
PLC control
Quick change-over of tooling
Provide customized service
Integrable in a production line
(2) Specification
| Wire diameter | 0.1mm-1.2mm |
| Armature OD | 10mm-50mm |
| Shaft OD | 5mm-15mm |
| Commutator OD | 15mm-40mm |
| Bar No. | ≤36 |
| Commutator type | both hook type and raise type |
| Current range | 0.5-50KA |
| Welding voltage range | 0.1-9.99V |
| Welding power range | 1.00-99.99KW |
| Cooling method | Water cooling |
| Air source | 4~6kg/cm2 |
| Power supply | AC380V 50HZ |
| Machine weight | 800KG |
(3) Application
This machine is applied to DC motor and universal motor.
