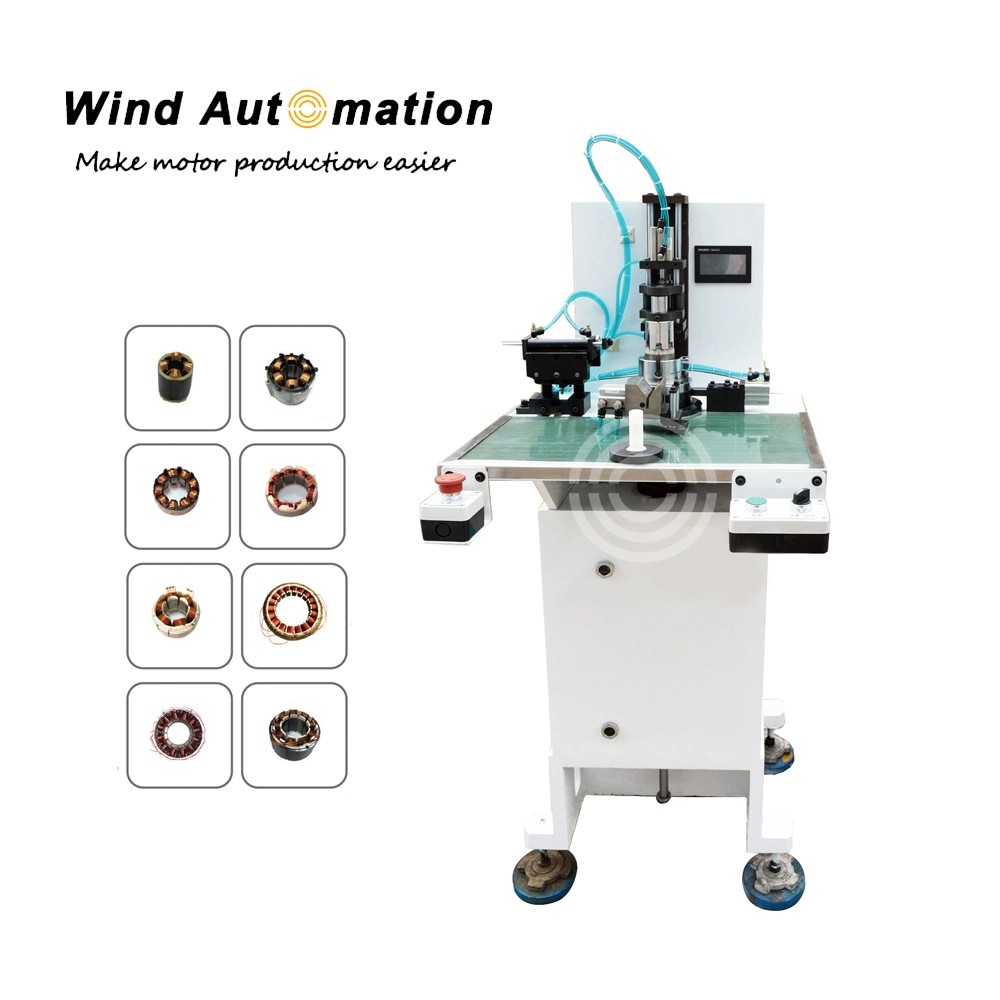

12 Slots Stator Coil Needle Winding Machine

12 Slots Stator Coil Needle Winding Machine

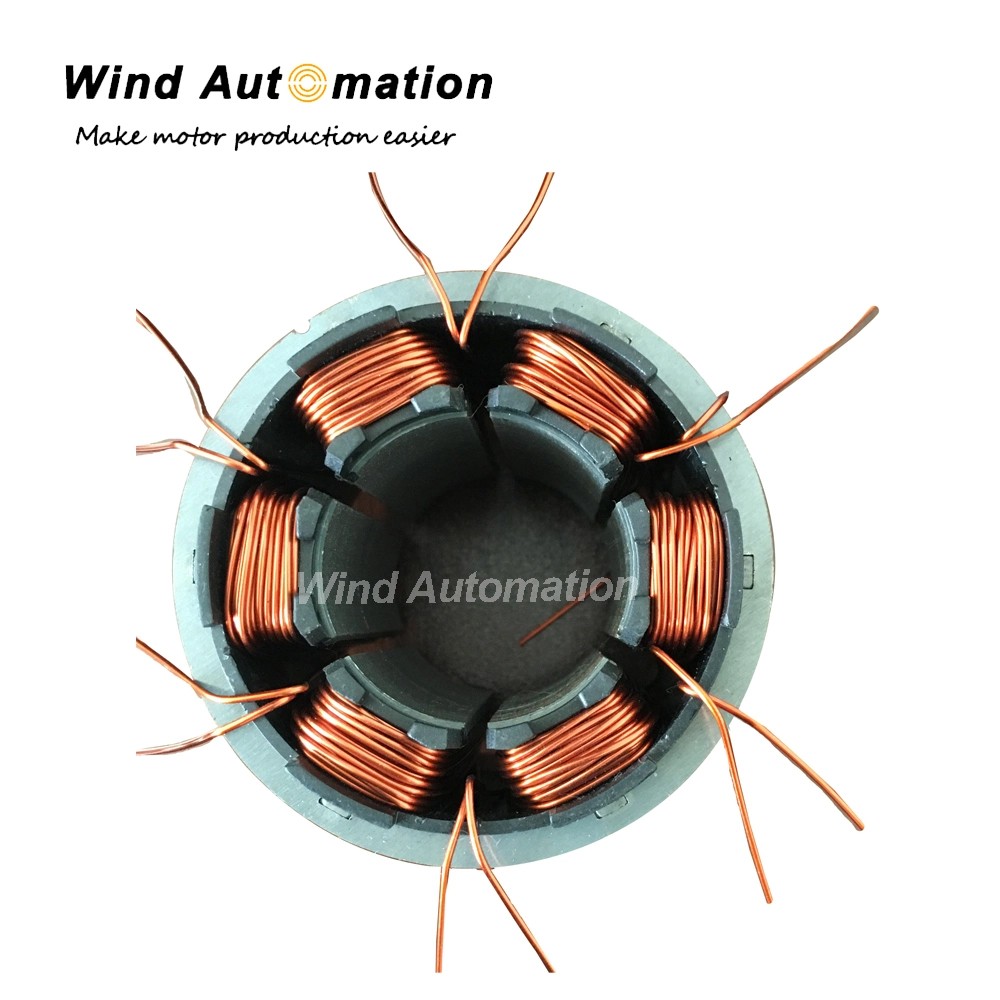

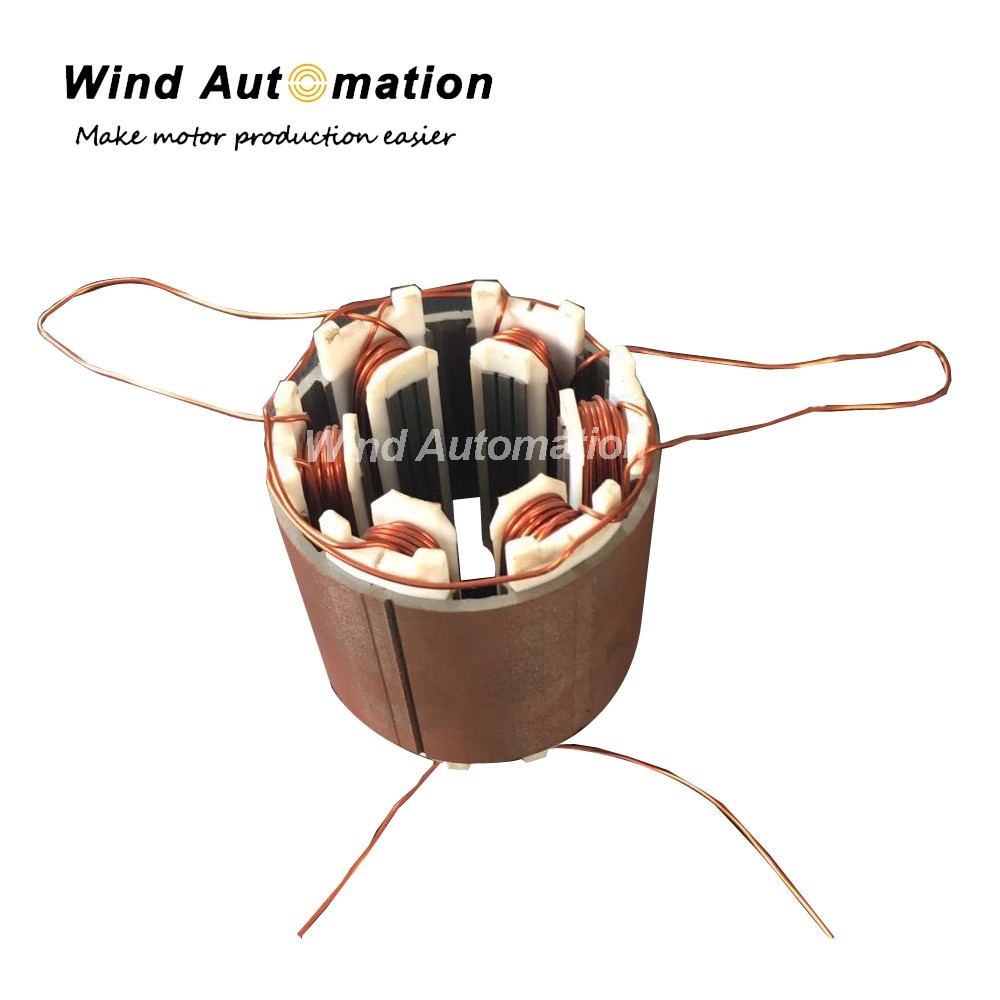

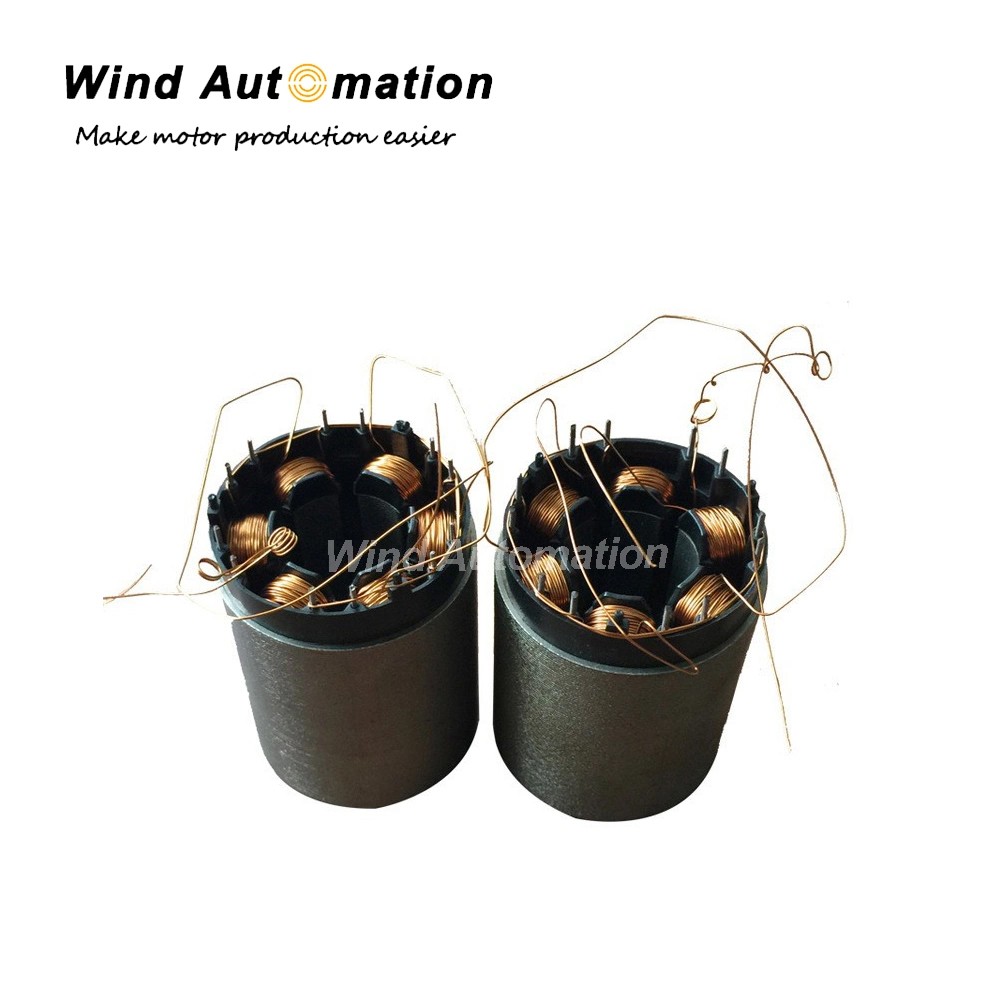

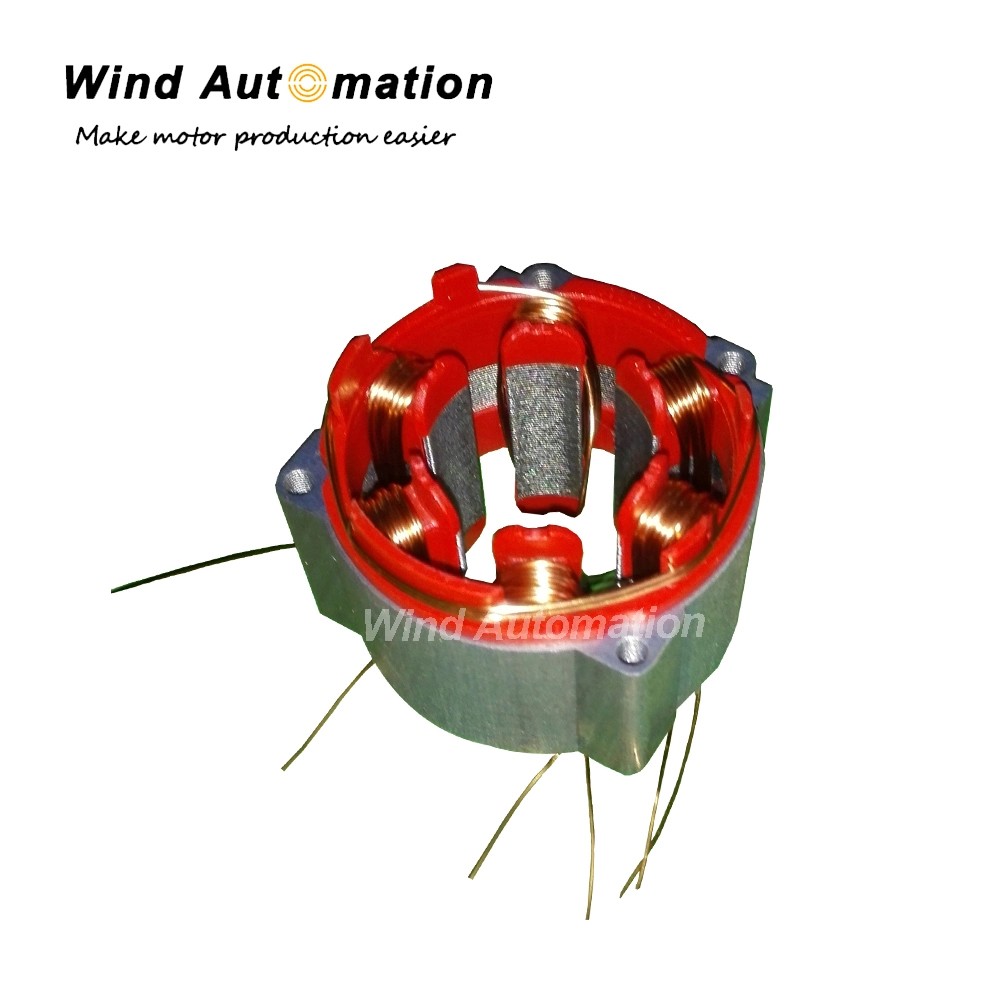

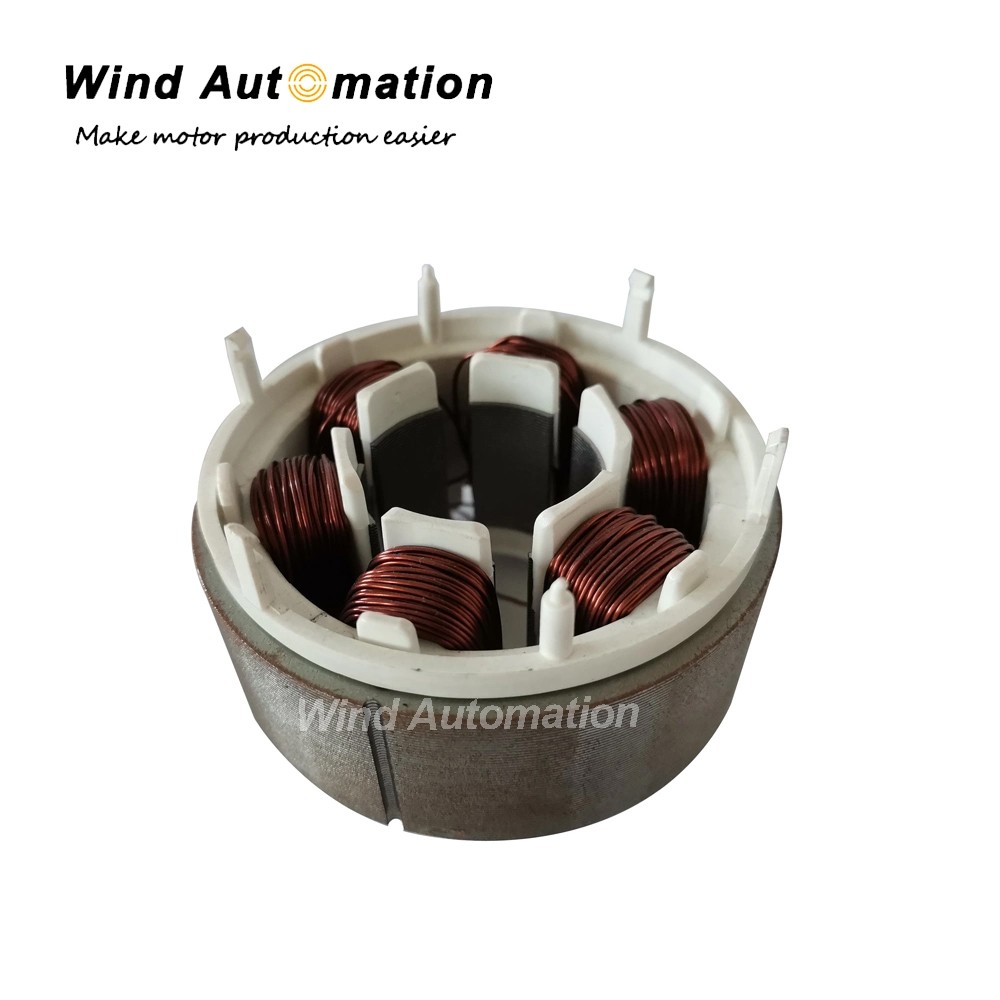

Besides 12 slots stator, this needle winding machine can also winding 6 slots, 8 slots, 9 slots, 14 slots and other slots number stators. It covers a wide wire range from 0.08mm to 1.2mm.

(1)Features
High quality level of the winding process
Wide application and model types
Quick change-over of tooling
Provide customized service
Automatic winding, indexing, layering and terminating

(2)Specification

Wire diameter0.08~1.20mm
Stator ID15~65mm
Stack length7~115mm
Turn No.0~9999
MovementStepping/Auto
Slot number6,8,9,10,12,14,18(customized)
Air source5~7kg/cm3
Power1KW
Power supplyAC 220 V, 50/60HZ
Weight350KG
Dimension1550x900x1450mm


(3)Application
Suitable for various types of multi-poles stators, stepping motor, BLDC motor regardless of wire diameter.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system


12 Slots Stator Coil Needle Winding Machine
12 Slots Stator Coil Needle Winding Machine
12 Slots Stator Coil Needle Winding Machine
