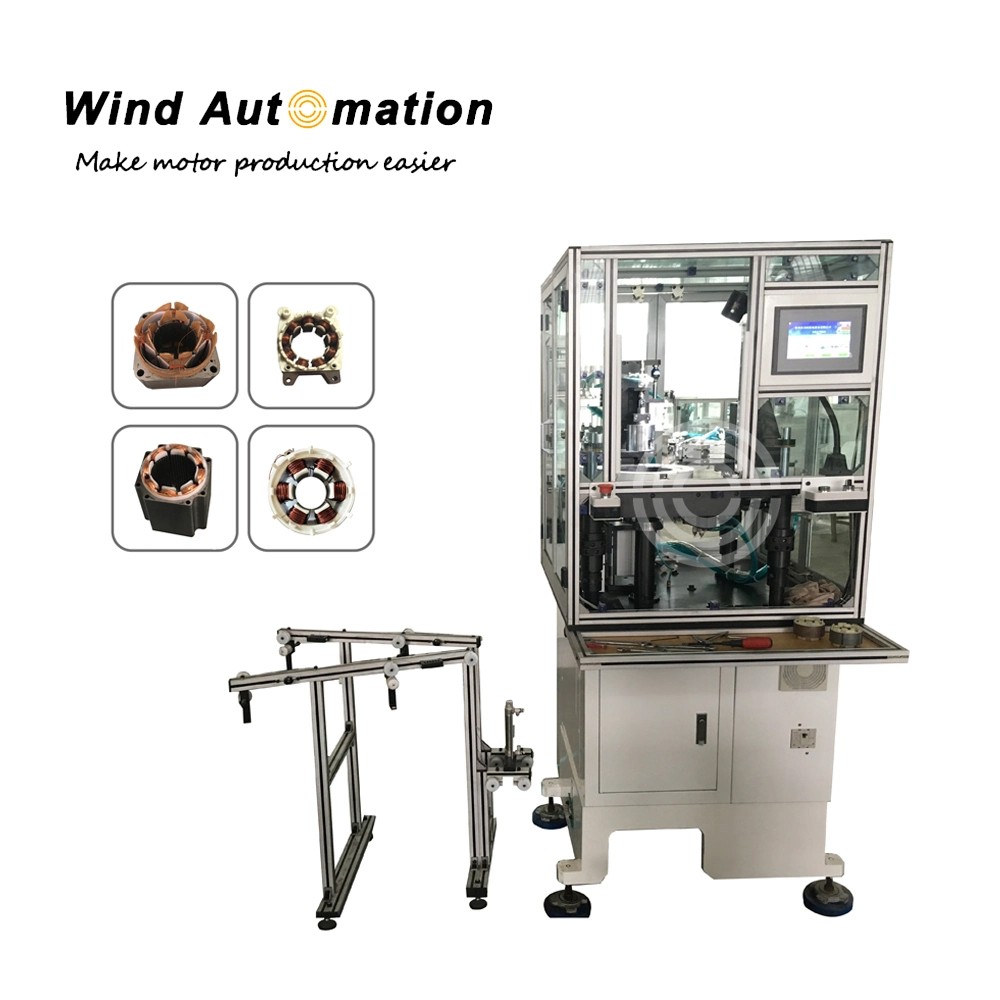

Outside Slotted Stators Tooth Winding Machine

Outside Slotted Stators Tooth Winding Machine
Except for auto arraying, this tooth winding machine can do automatic winding, indexing, layering and terminating. It can meet high winding requirements. Tooling change-over is fast and esay.

(1)Specification

Wire diameter	0.08~1.2mm
Stator ID	19~65mm
Stack length	7~110mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	6,9,12,18(customized)
Air source	5~7kg/cm3
Power	2KW
Power supply	AC 220 V, 50/60HZ
Weight	750KG
Dimension	1600x1100x1400mm

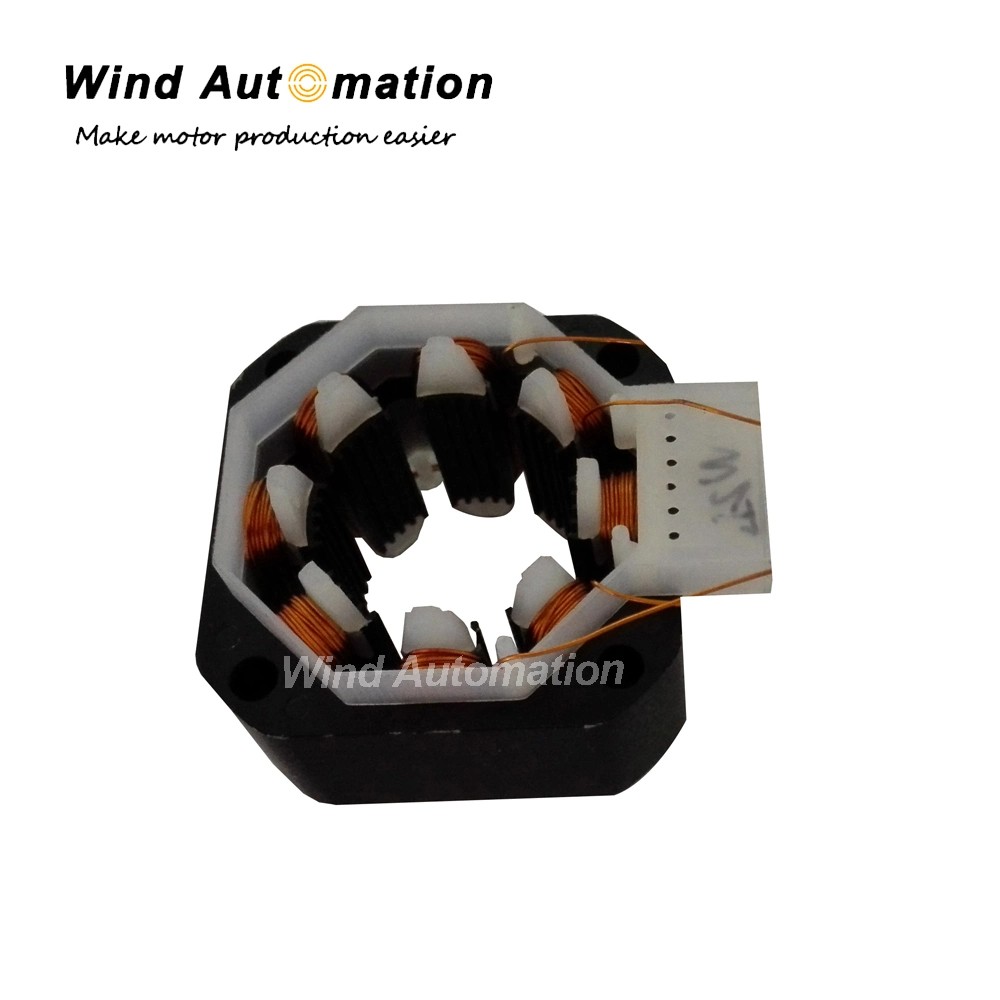

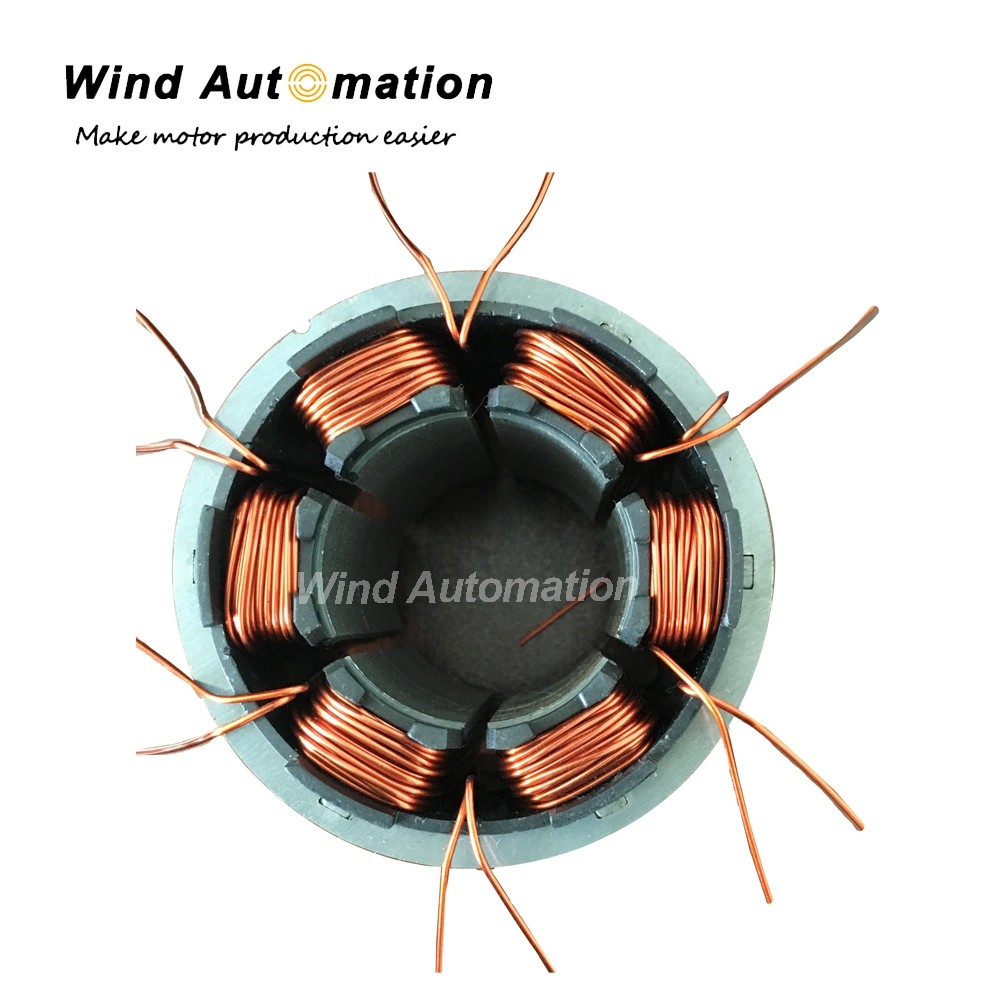

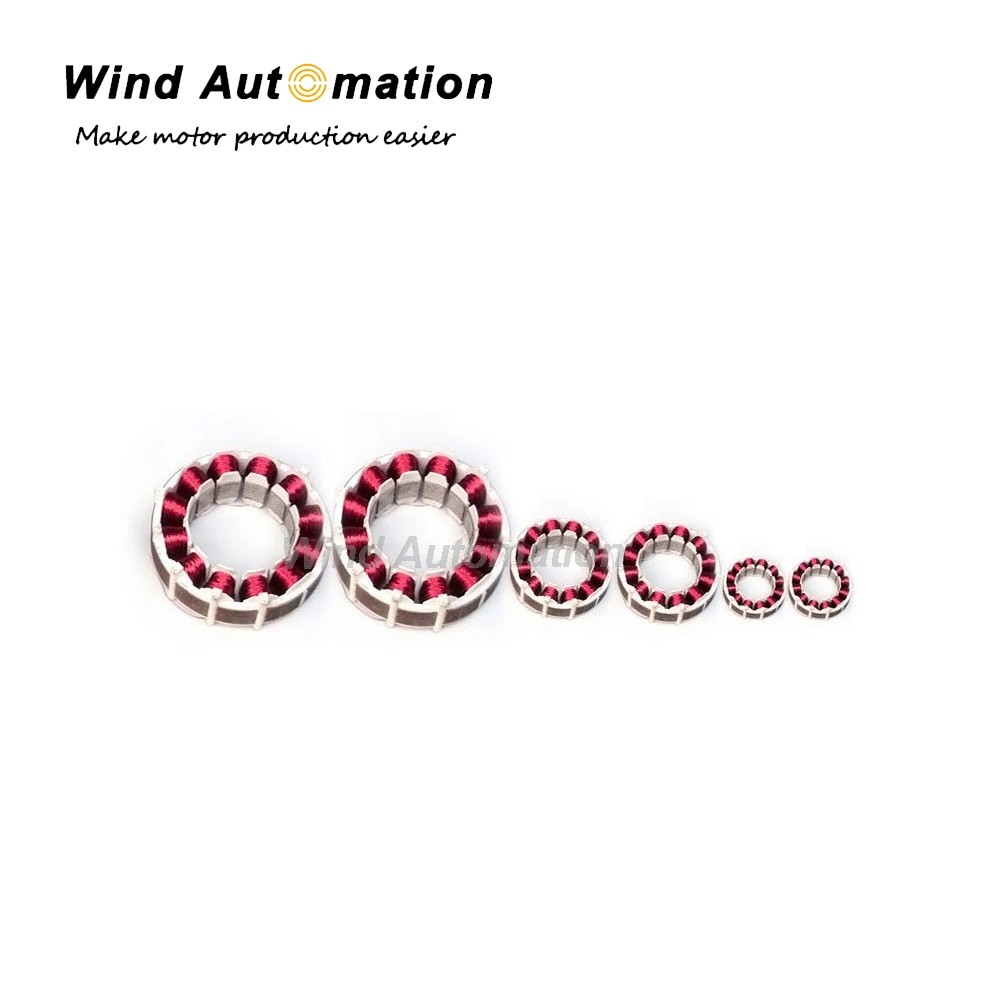

(2)Application
suitable for various types stators with narrow slot width but high slot filling rate.

(3)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Winding parameter adjustable according to different stators

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

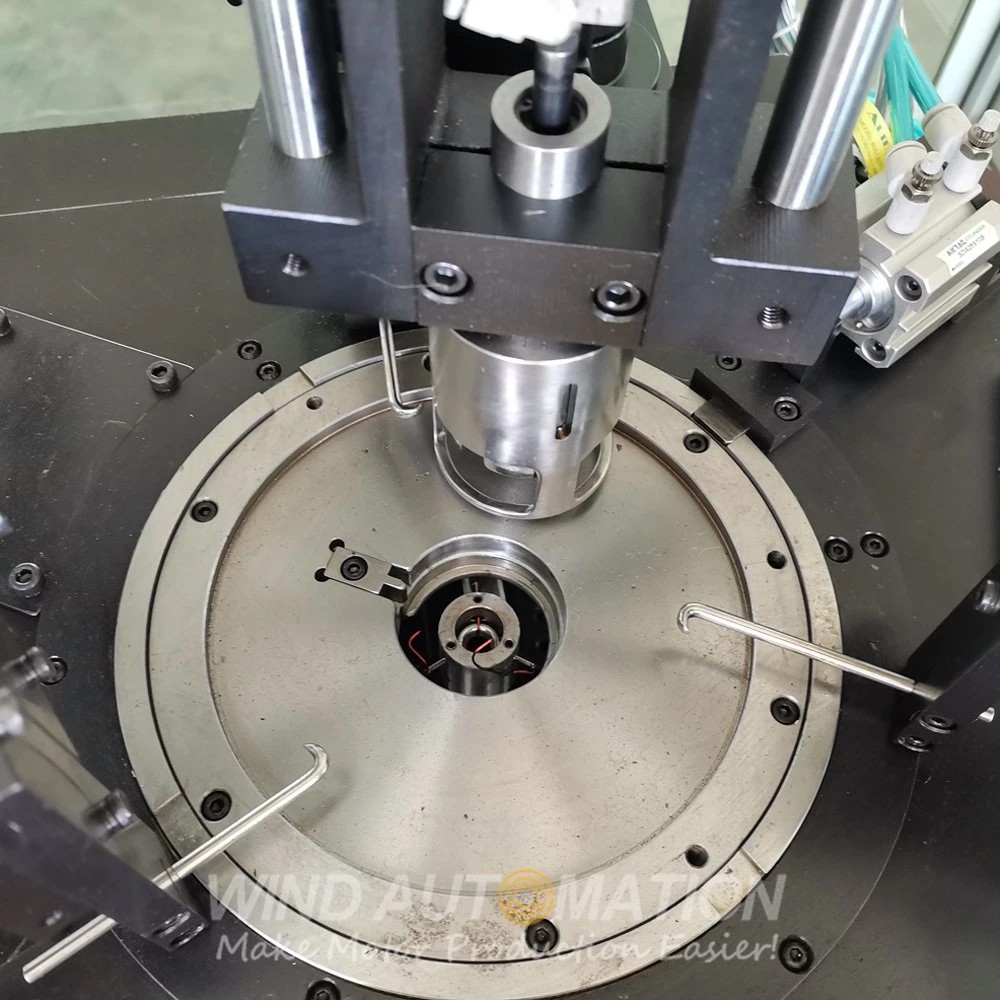

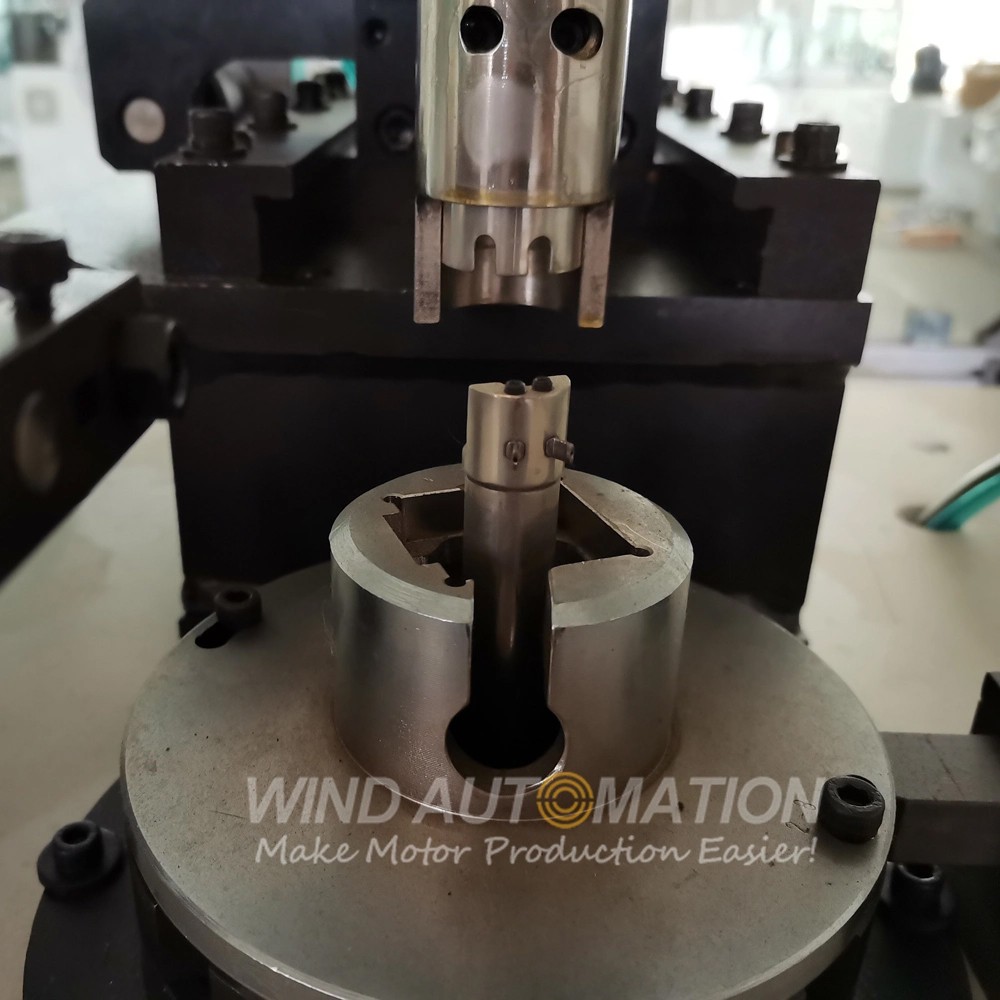

(5) Machine working station Outside Slotted Stators Tooth Winding Machine
