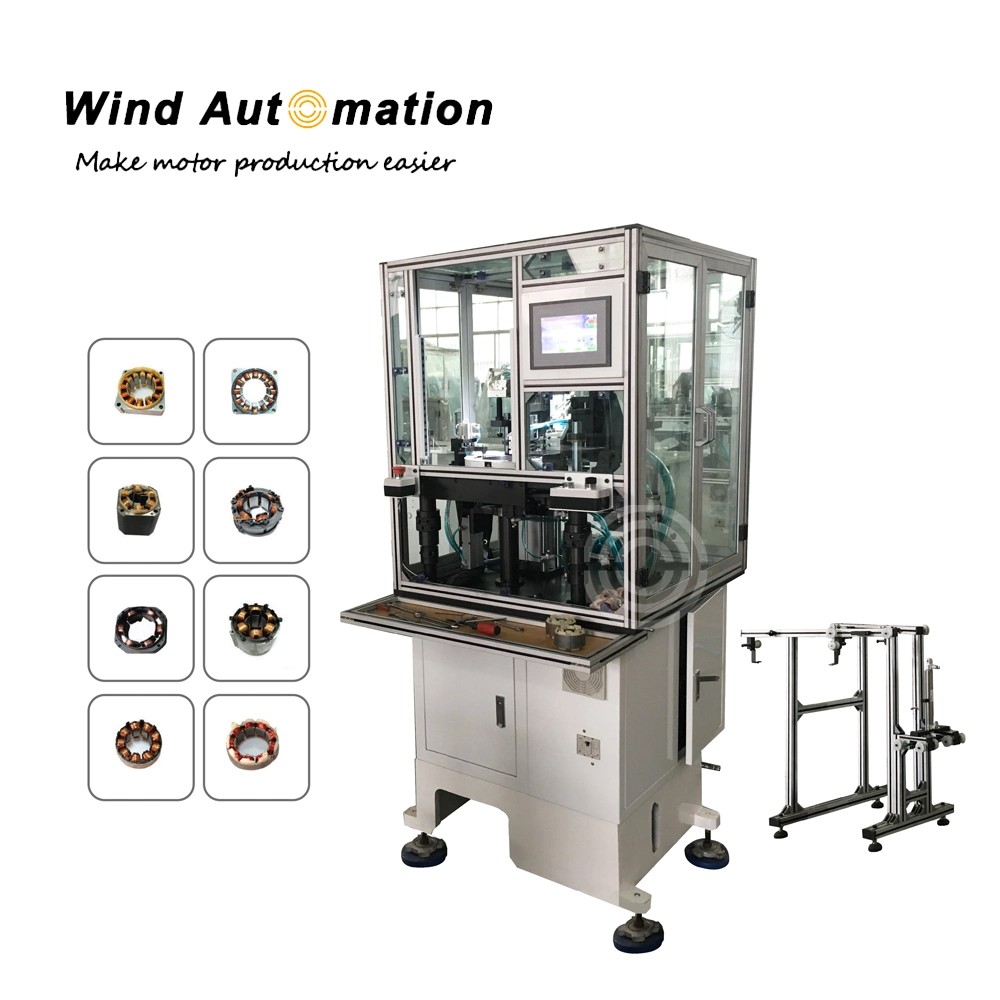

12 Slot Stepping Motor BLDC Motor Stator Needle Winder
This needler winder is special designed for BLDC motor to do coil winding. Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.
(1)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Winding parameter adjustable according to different stators
(2)Specification
| Wire diameter | 0.08~1.2mm |
| Stator ID | 19~65mm |
| Stack length | 7~110mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,9,12,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 750KG |
| Dimension | 1600x1100x1400mm |
(3)Application
suitable for various types stators with narrow slot width but high slot filling rate.
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

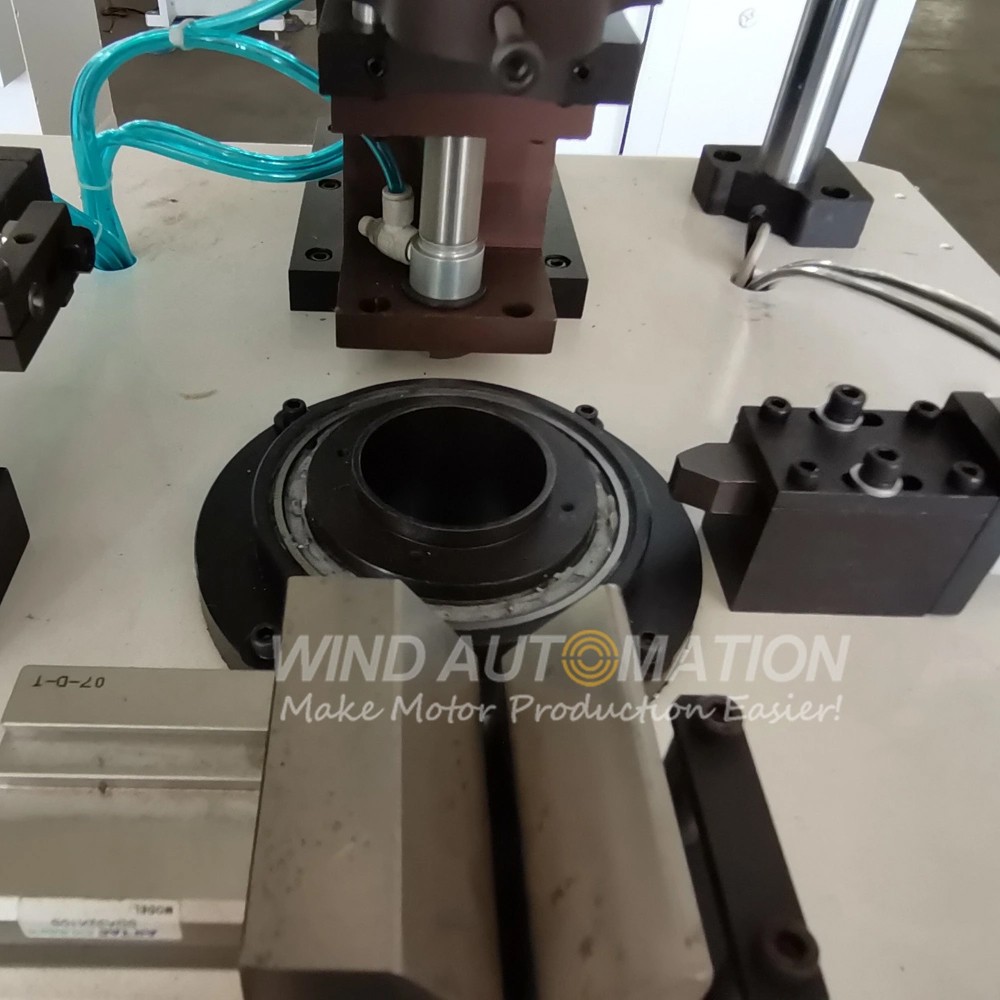

(5)Machine working station
