Hairpin-Coil-Shaping-Machine-for-New-Energy-Motor

Product Description

Hairpin Coil Shaping Machine for New Energy Motor

This hairpin coil shaping can turn flat shape wire into hairpin coils. Machine is easy to operate, one operator is quite enough.

(1) Application

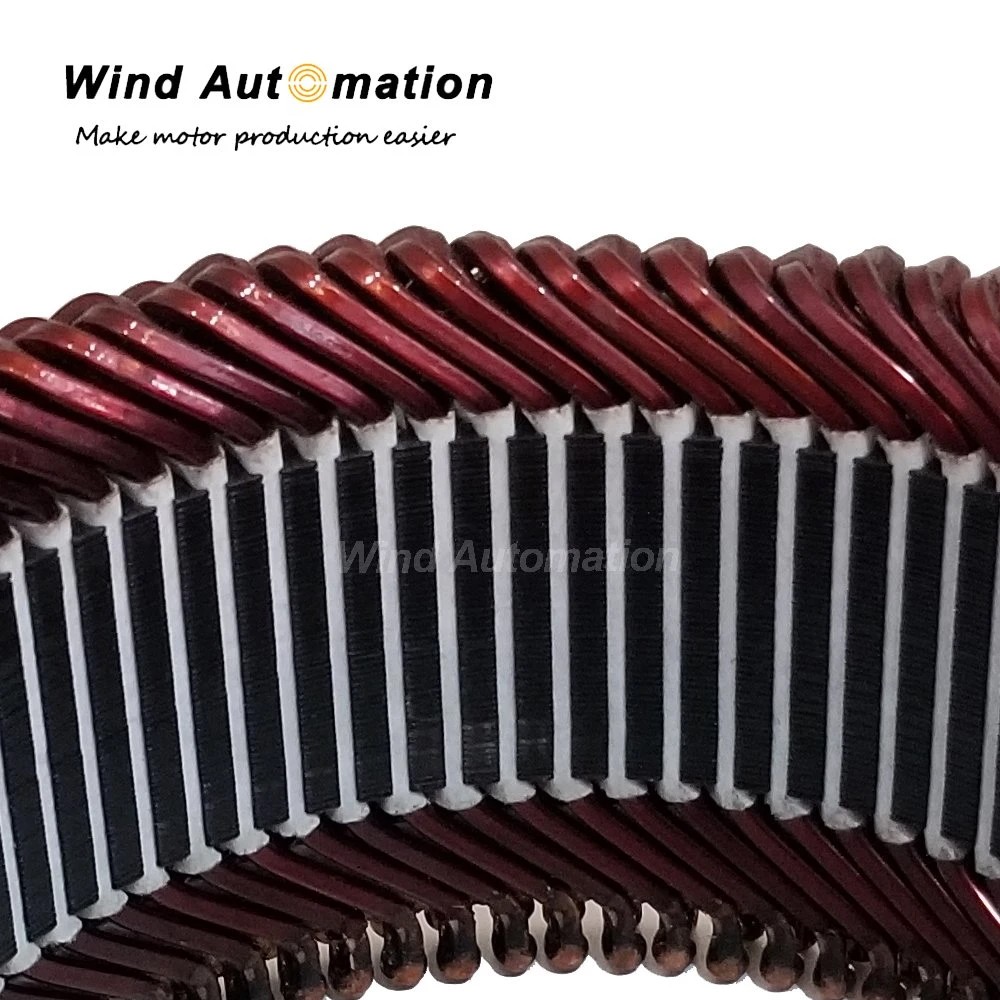

This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(2)Specifications

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
