How to Do Coil Forming by Stator Coil Shaping Machine

Before and after lacing, stator coils needs to do coil forming, so as to better do lacing and final motor testing.

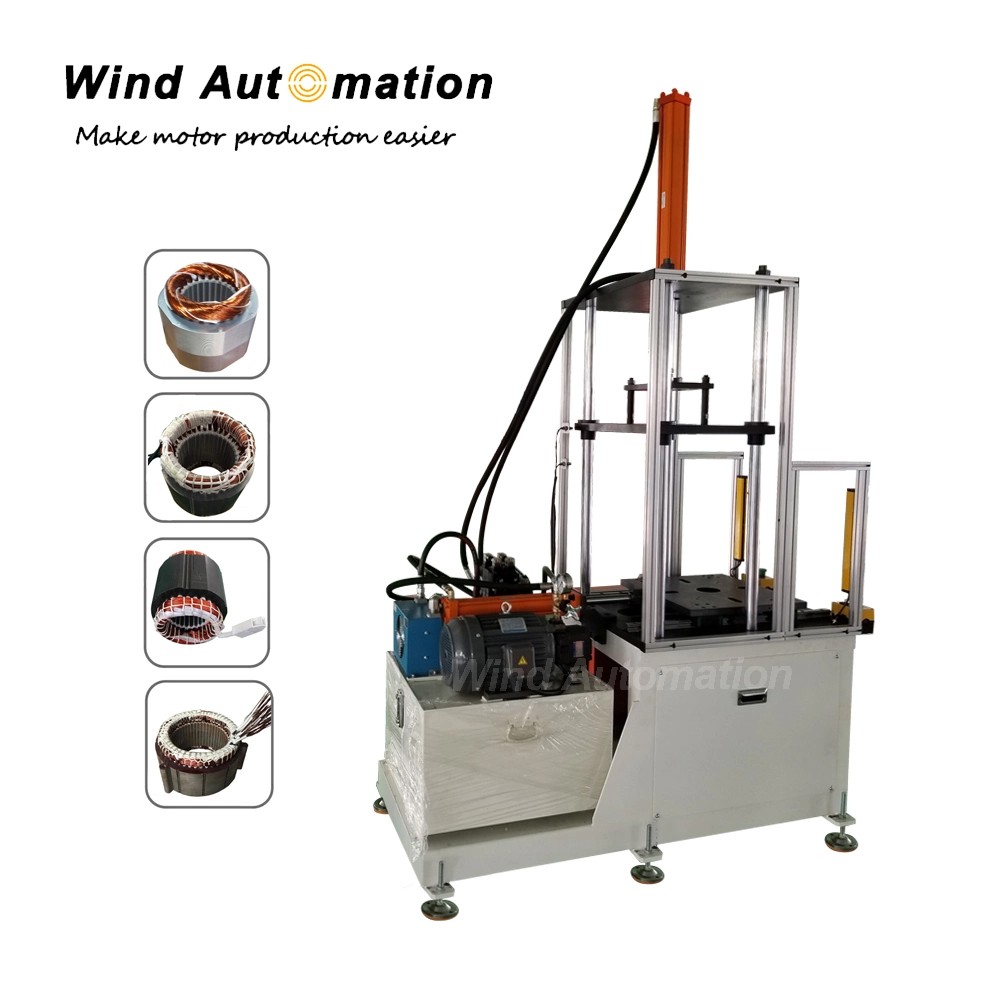

This machine is mainly driven by the hydraulic system, controlled by PLC. 5 pieces individual cylinder execute external wrapping, internal expansion, overhanging end forming. It is of fast tooling change and extensive compatibility property.

(1) Specification

(2) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required

(3) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.
