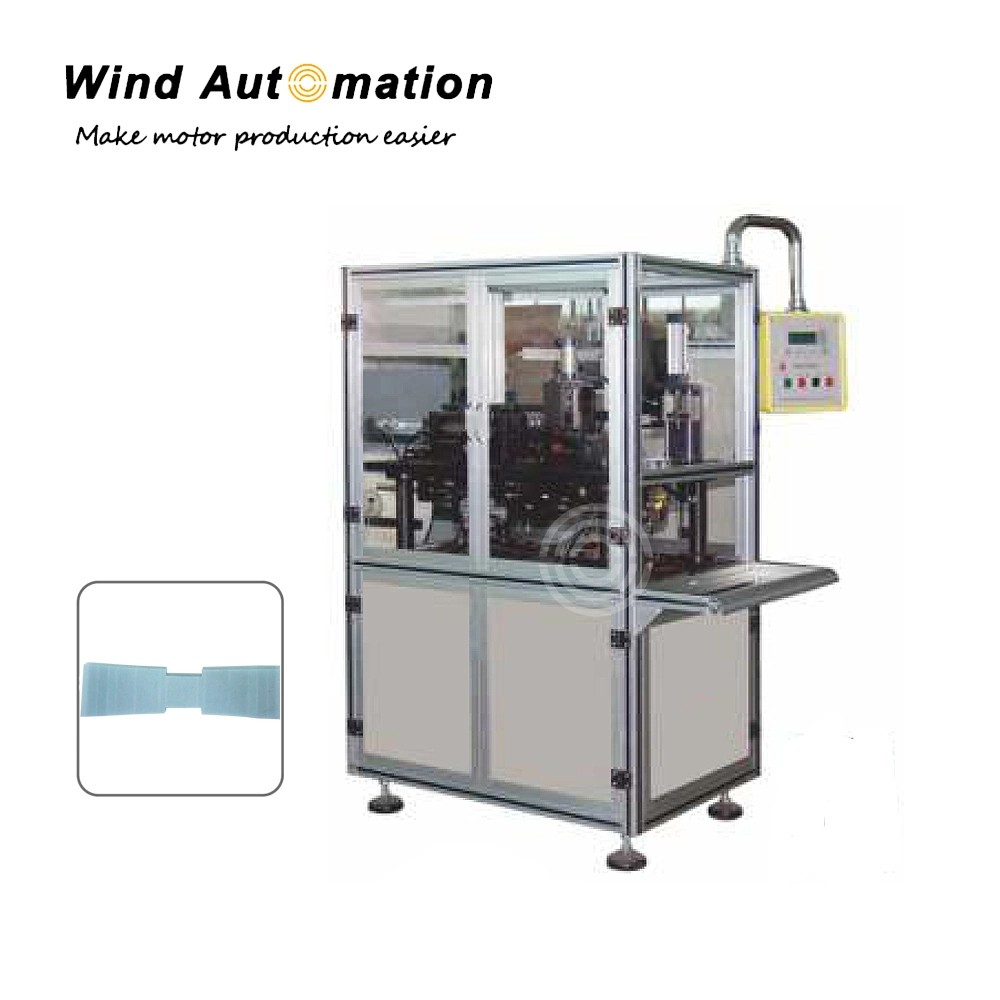

Two Poles Stator Slot Insulation Paper Inserting Machine

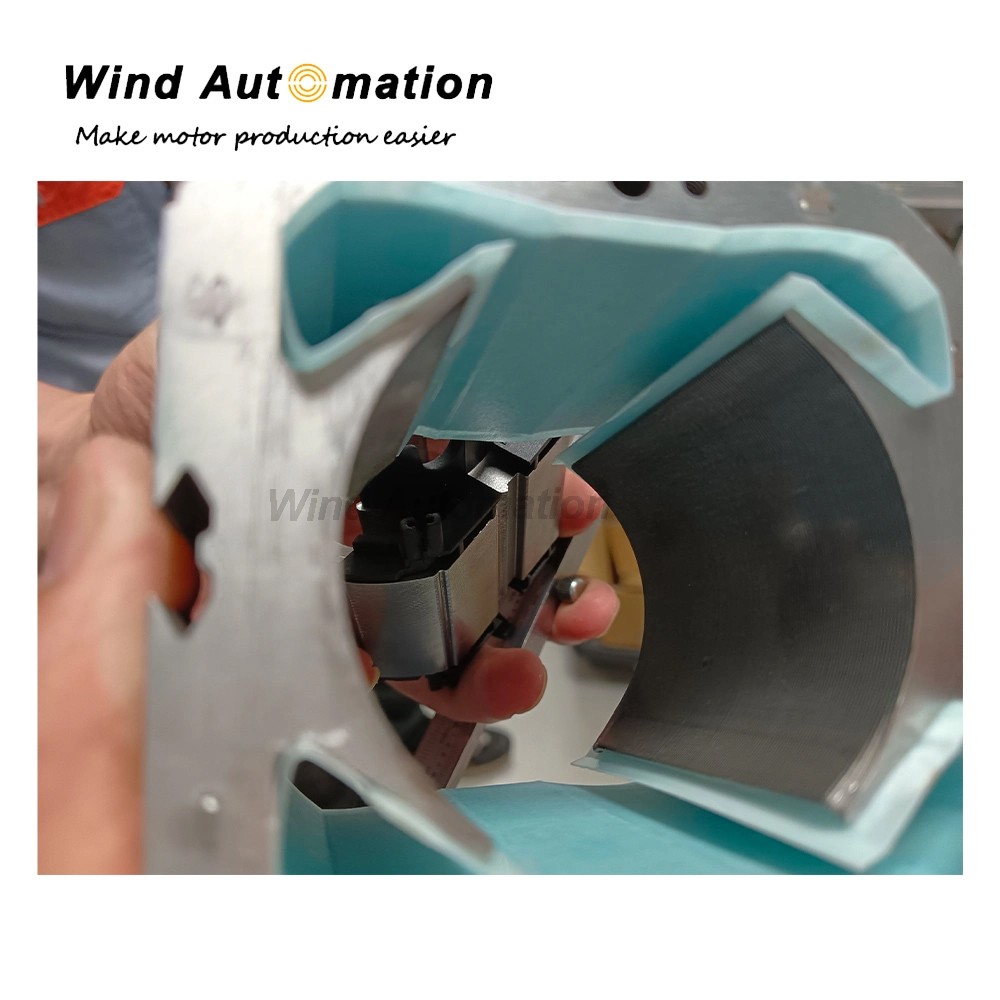

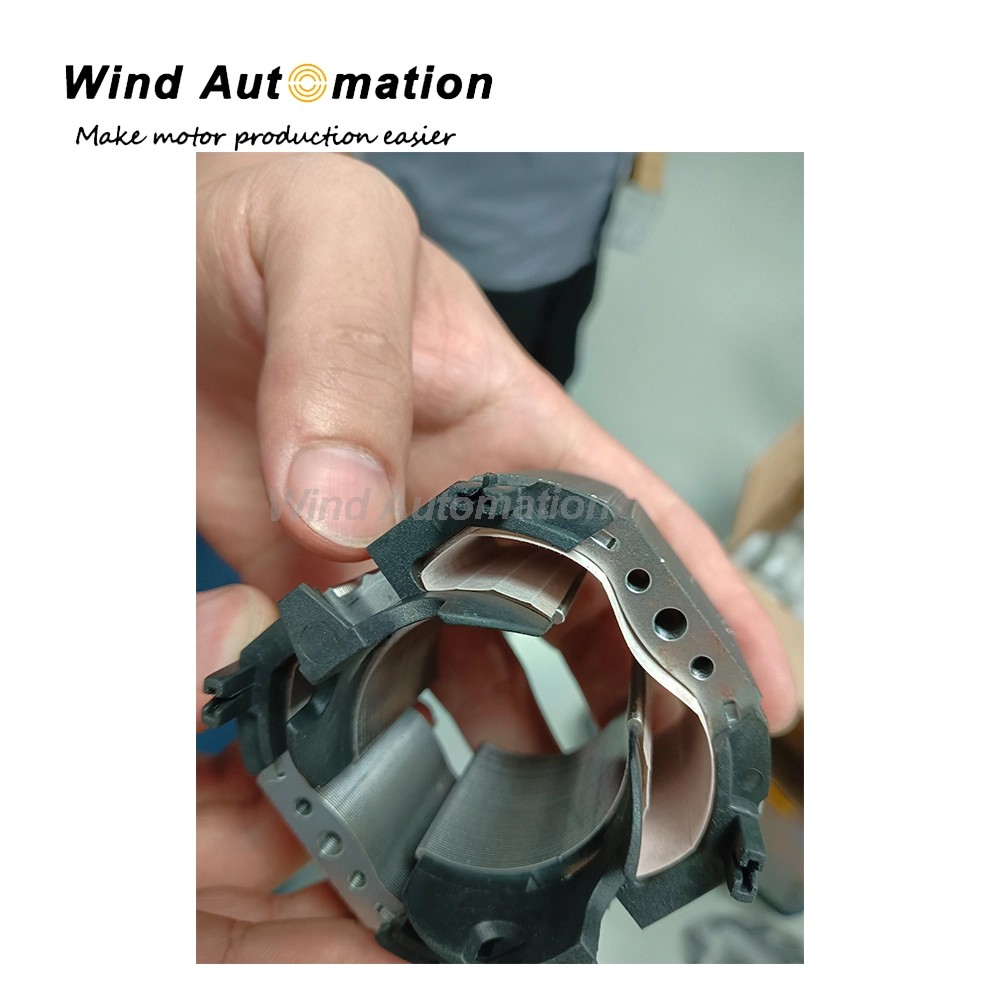

This machine is specially designed for two-poles series motor, shaded pole motor, power tool motor stator to do paper insertion. It can do automatic paper cutting, forming and inserting.
(1)Specification
| Power supply | AC 220V |
| Air pressure | 0.5~0.7MPa |
| Total power | 2KW |
| Stator OD | 50~95mm |
| Stator ID | 30~55mm |
| Stack length | 15~80mm |
| Slot number | 2 |
(2)Application

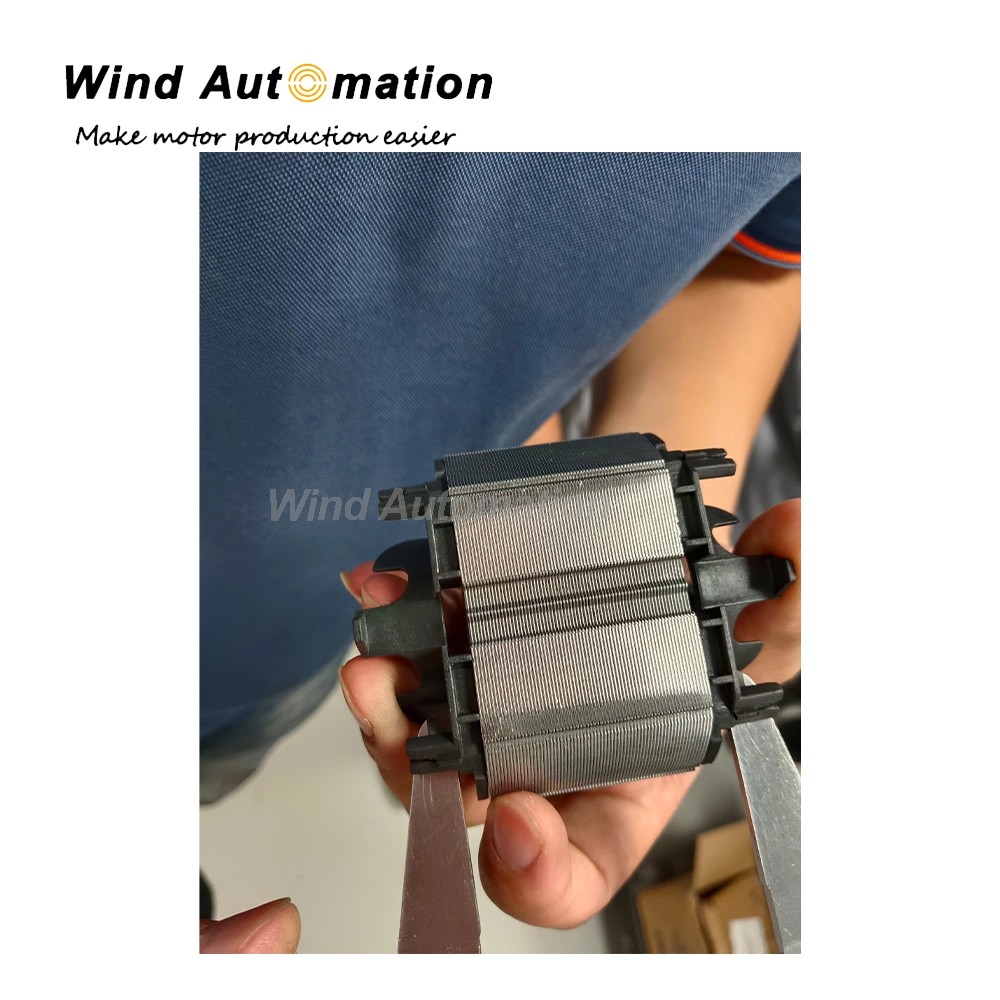

Suitable for two-poles series motor, shaded pole motor, power tool motor stator
(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading
Quick change-over of tooling
PLC control, fault display
