Vertical-Winding-Machine-for-AC-Motor-Stator-Coil-Winding

Basic Info.

Model NO.

WIND-160-VW

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

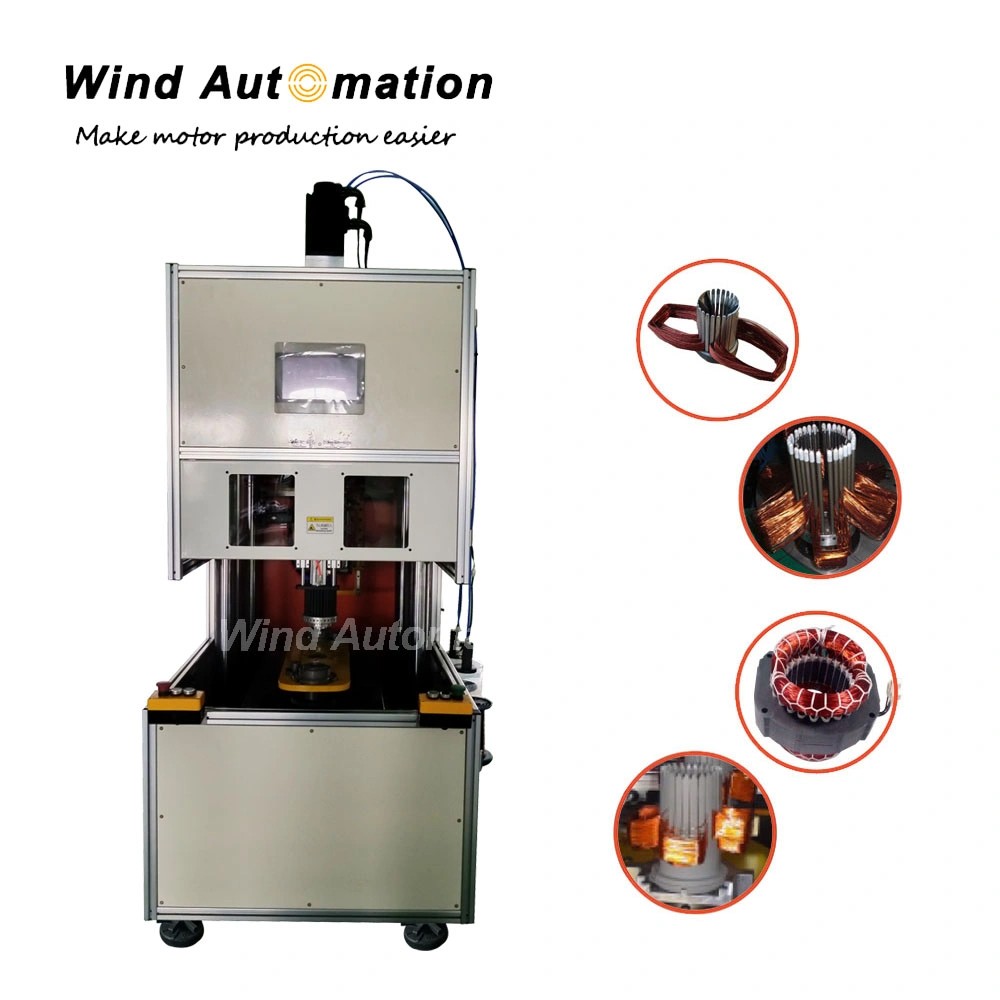

Vertical Winding Machine For AC Motor Stator Coil Winding

Vertical Winding Machine for AC Motor Stator Coil Winding

This model is a single-head two-station vertical winding machine; it adopts turntable mechanism. The main and auxiliary phases can be wound at the same time. It is suitable for the stator with high output requirements.It can achieve continuous and non-continuous winding.

(1) Specification

Wire diameter0.18~1.2mm
Min stator ID400mm
Winding head2
Max stator OD200mm
Core length160mm
Winding SpeedMax 1800r/min
Air pressure0.6~0.8Mpa
Power supply380V  7.5KW
WeightAbout 2000kgs
Dimension2600x2200x2300mm


(2) Feature
Rotation and indexing controlled by servo system
Tooling change and software adjustment within 15min
No distinct vibration or noise during winding
Automatically stop if wire is run out

Manual unloading coils after winding
Single winding head two working stations
All winding parameter programmable on touch screen


(3) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.



Vertical Winding Machine for AC Motor Stator Coil Winding Vertical Winding Machine for AC Motor Stator Coil Winding
Vertical Winding Machine for AC Motor Stator Coil Winding
