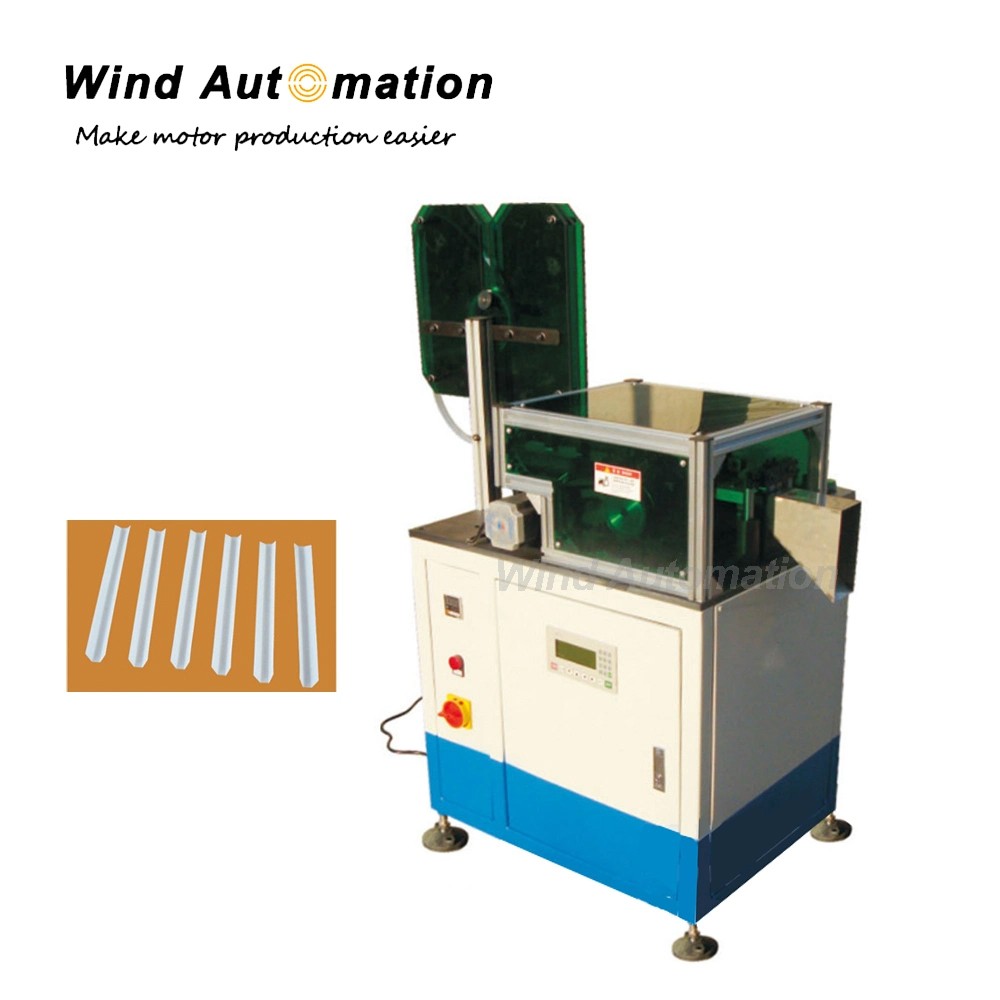

AC Motor Stator Wedge Forming and Cutting Machine
This machine is used to form and cut wedge for small and medium three phase motor, gasoline generator motor. It will do wedge cutting before wedge forming.
(1) Specification
| Cycle time | 120pcs/min |
| Cutting thickness | 0.2~0.5mm |
| Feeding length | 10~200mm |
| Total power | 0.5KW |
| Power supply | 220V 50/60HZ |
| Weight | 150KG |
| Dimension | 450x650x1100mm |
(2) Feature
Simple and easy to operate
No skilled operator needed
Wide application
No regular maintenance needed
(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc
