Stator-Varnish-Dipping-Machine-for-AC-Motor-Stator

Basic Info.

Model NO.

WIND-ZCJ

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

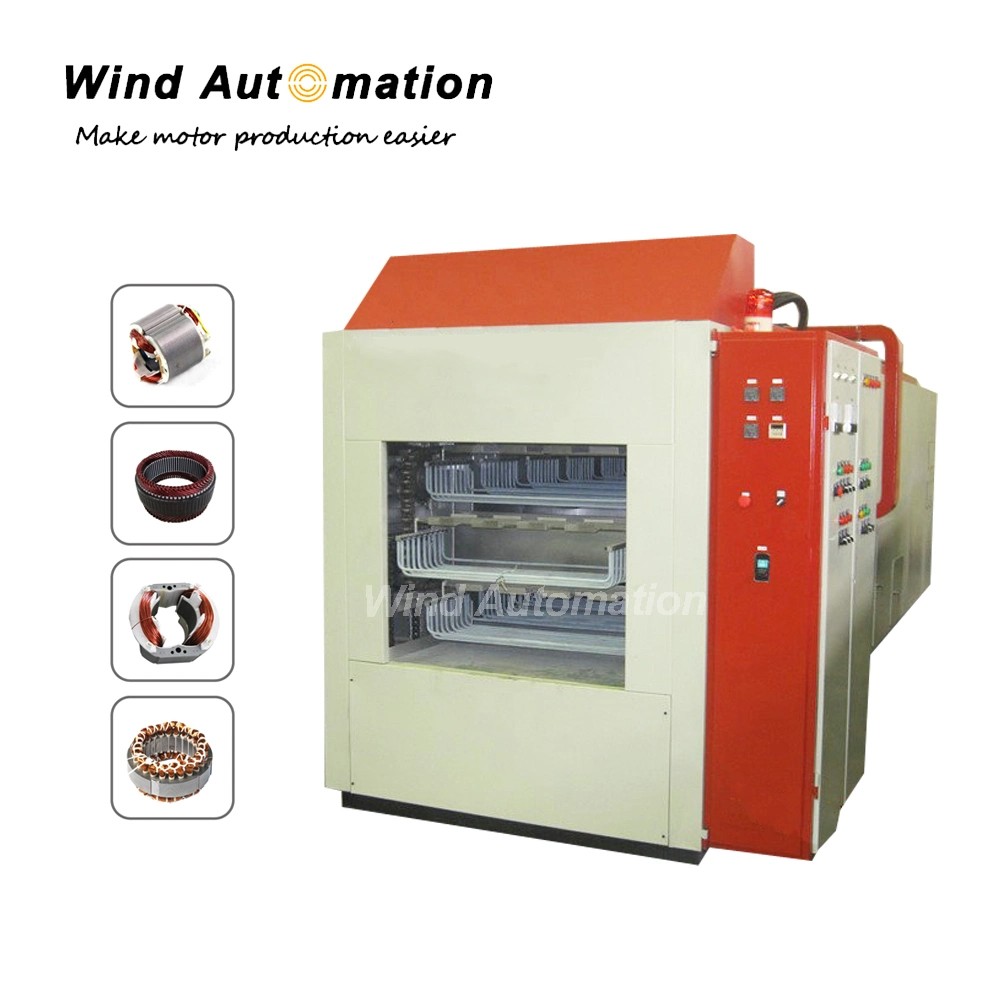

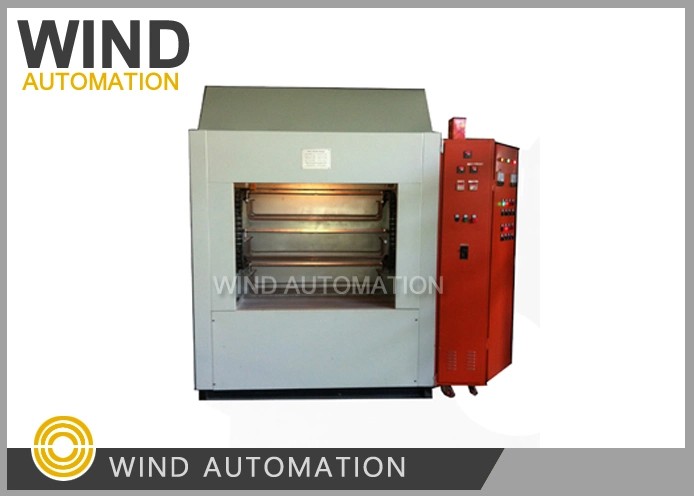

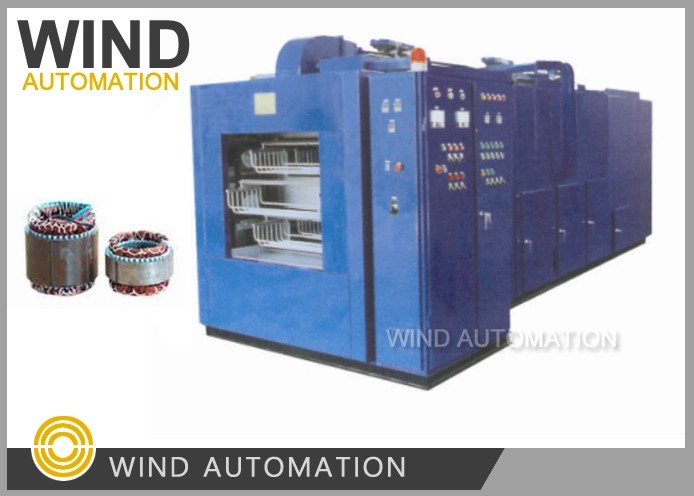

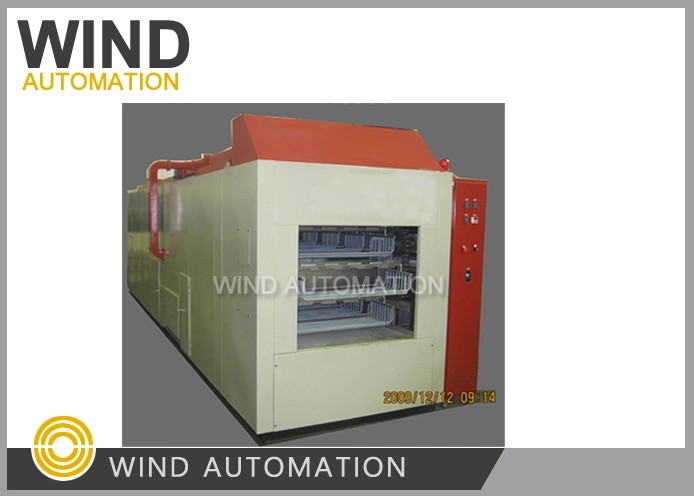

Stator Varnish Dipping Machine For AC Motor Stator

This Stator Varnish Machine is designed for stator insulation treatment. With a big oven, this varnishing machine can achieve mass production.

(1) Specifications

Working position: 26 related to stator production per day

Dipping depth Varnish impregnation: 130mm

Rack loading area: 850*300

Rack loading weight: 80Kg

Pitch time: 1-30min adjustable

Heating time: <45 min

Tunnel working temperature: ≤150ºC

Power consumption: 60

Dimension: 6*2.2*2.5

Weight: 5.8 Ton

(2) Application
This machine has a wide range of application, suitable for alternator stator, starter stator, new energy automobile car motor, induction motor ect.

(3) Features
Except for loading and unloading, the whole process of stator varnish dripping is completely automatic.
Mass production, high efficiency, high automation, Easy operation
Related parameter like heating time, pitch time, heating temperature can be set
Working position and pitch time can be customized.


(4)Information needed for inquiry

Stator drawing
Required production capacity
Required shift per day or per hour

(5)Pump motor stator varnish machine

One customer who produced pump in Coimbatore had brought this machine for 3pcs separately

Stator varnish in pump motor stator impregnation process
