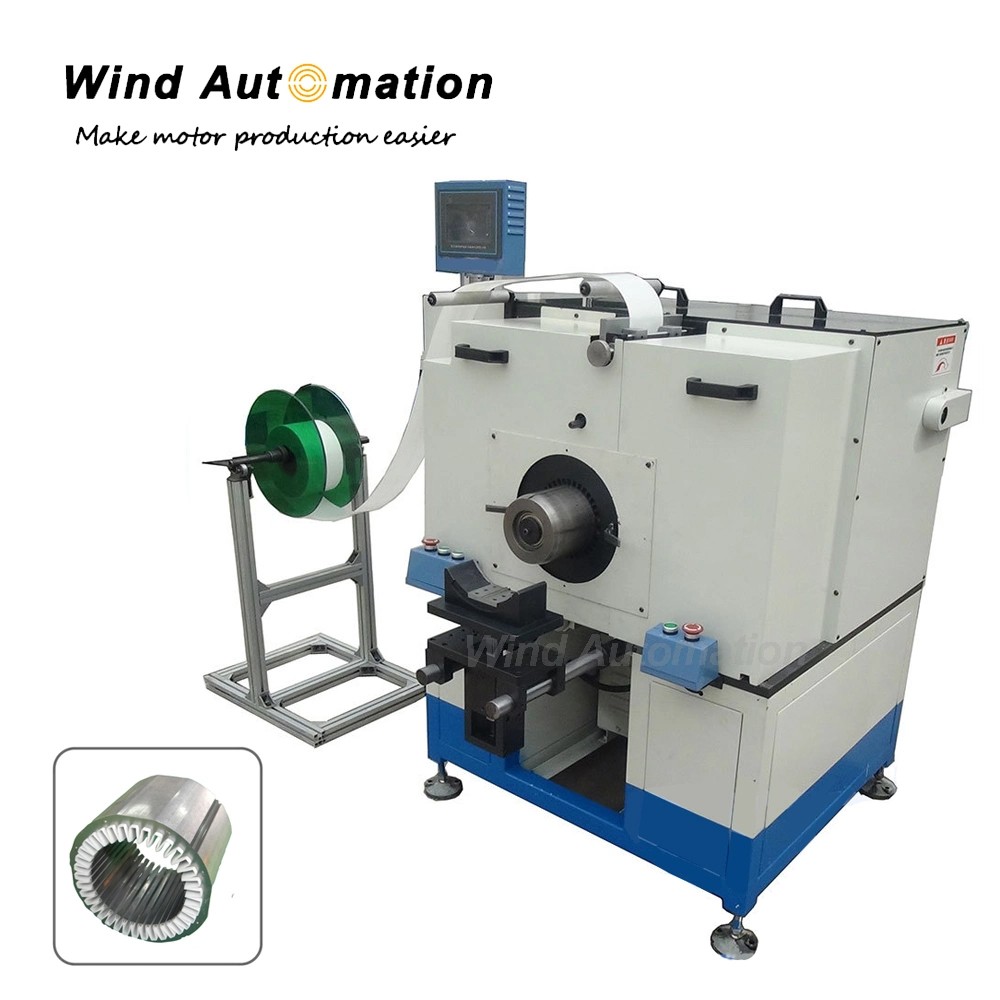

Automatic Insulation Paper Inserter With Horizontal Structure

Automatic Insulation Paper Inserter with Horizontal Structure

Edge folded, paper feeding, cutting, forming and inserting are achieved through mechanical transmission, link mechanism and eccentric wheel, and machine will stop automatically after finishing above process. High automation, simple operation, and improve working efficiency.

(1) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency

Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process


(2) Specification

Stack length40~300mm
IDΦ50~Φ300mm
OD≤Φ300mm
Folding height3~5mm
thickness≤0.35mm
efficiency≈1.2s/slot
Power380V/50Hz/60Hz   0.75kW
weight≈500KG
dimension1680×1065×1550mm


(3) Application

This type of stator paper inserter is suitable for large and medium-sized motor stators with a low volume but a high mix of production .
