6-18 Slot Stator Needle Winding Equipment

6-18 Slot Stator Needle Winding Equipment
This needle winding equipment is suitable for 6 to 18 slots stator to do inslot winding. Customized service is also provided, if stator parameter does not meet the specification listed blow.


(1)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

(2)Specification

Wire diameter0.08~1.2mm
Stator ID19~65mm
Stack length7~110mm
Turn No.0~9999
MovementStepping/Auto
Slot number6,9,12,18(customized)
Air source5~7kg/cm3
Power2KW
Power supplyAC 220 V, 50/60HZ
Weight750KG
Dimension1600x1100x1400mm


(3)Application

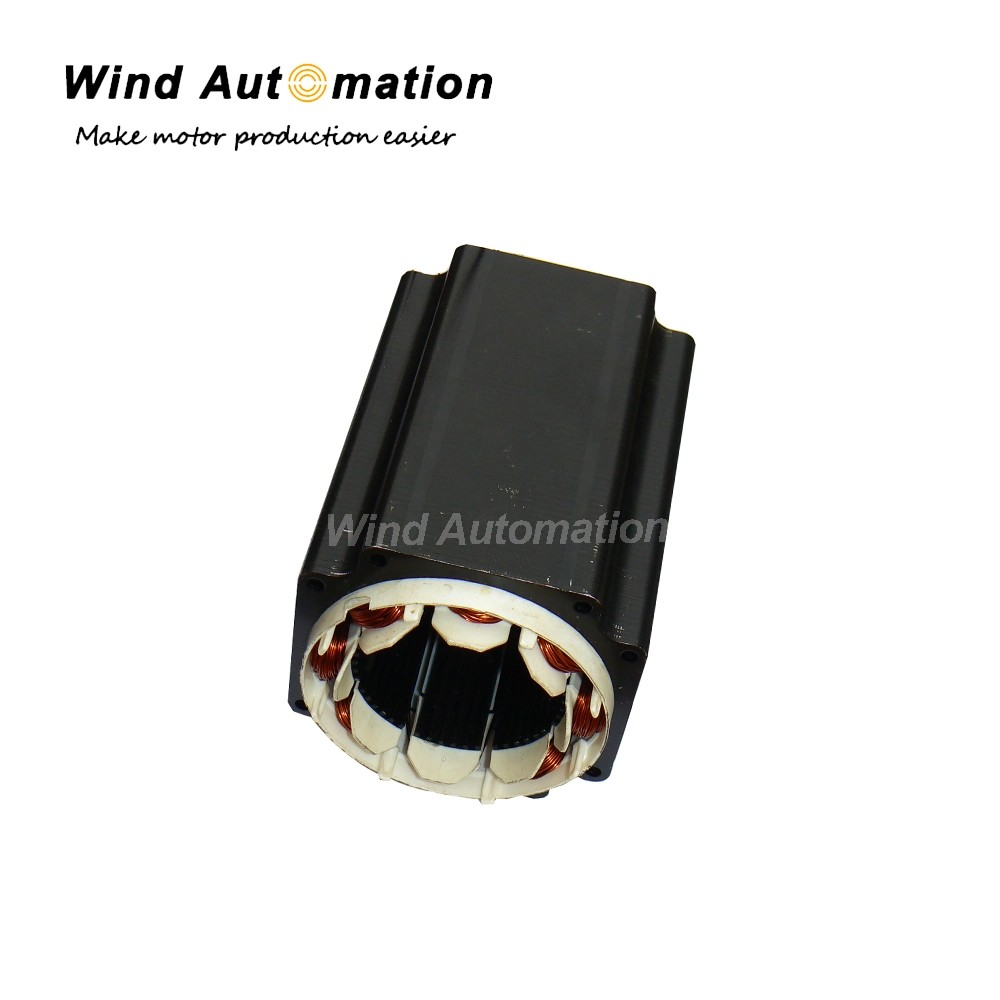

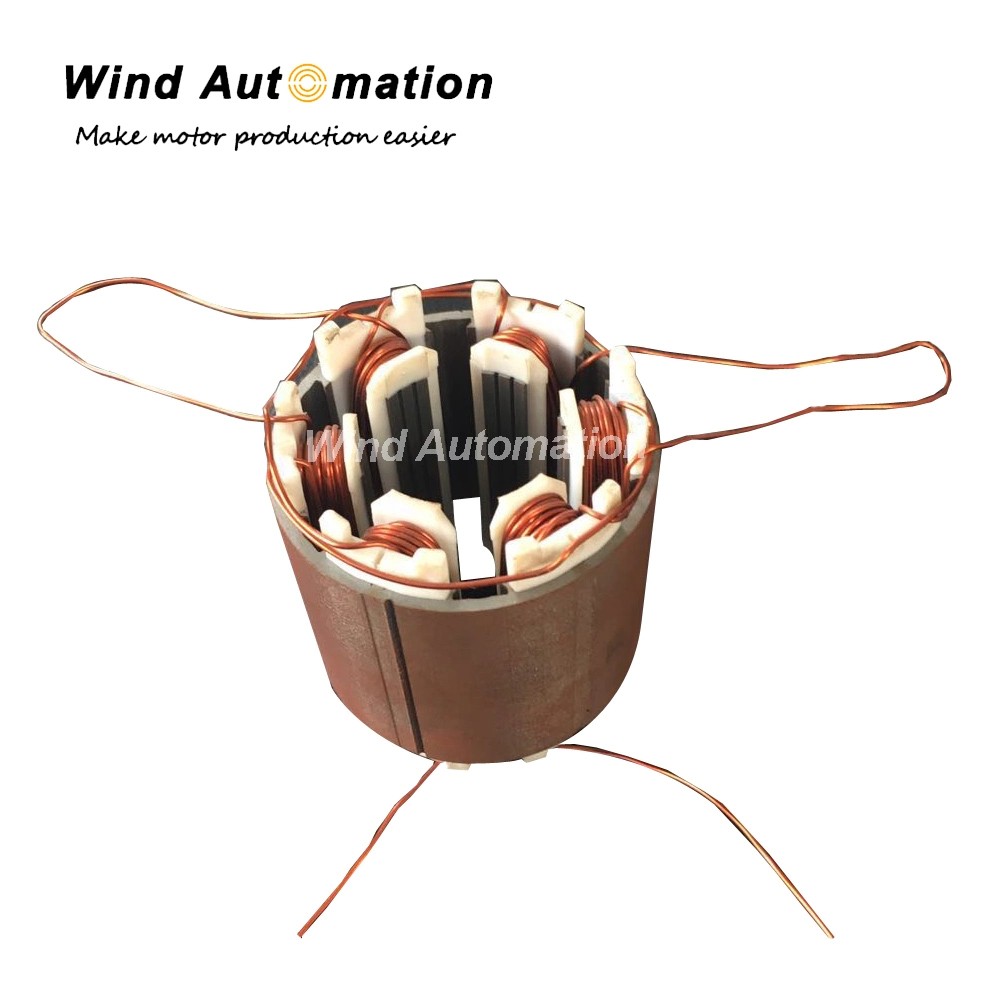

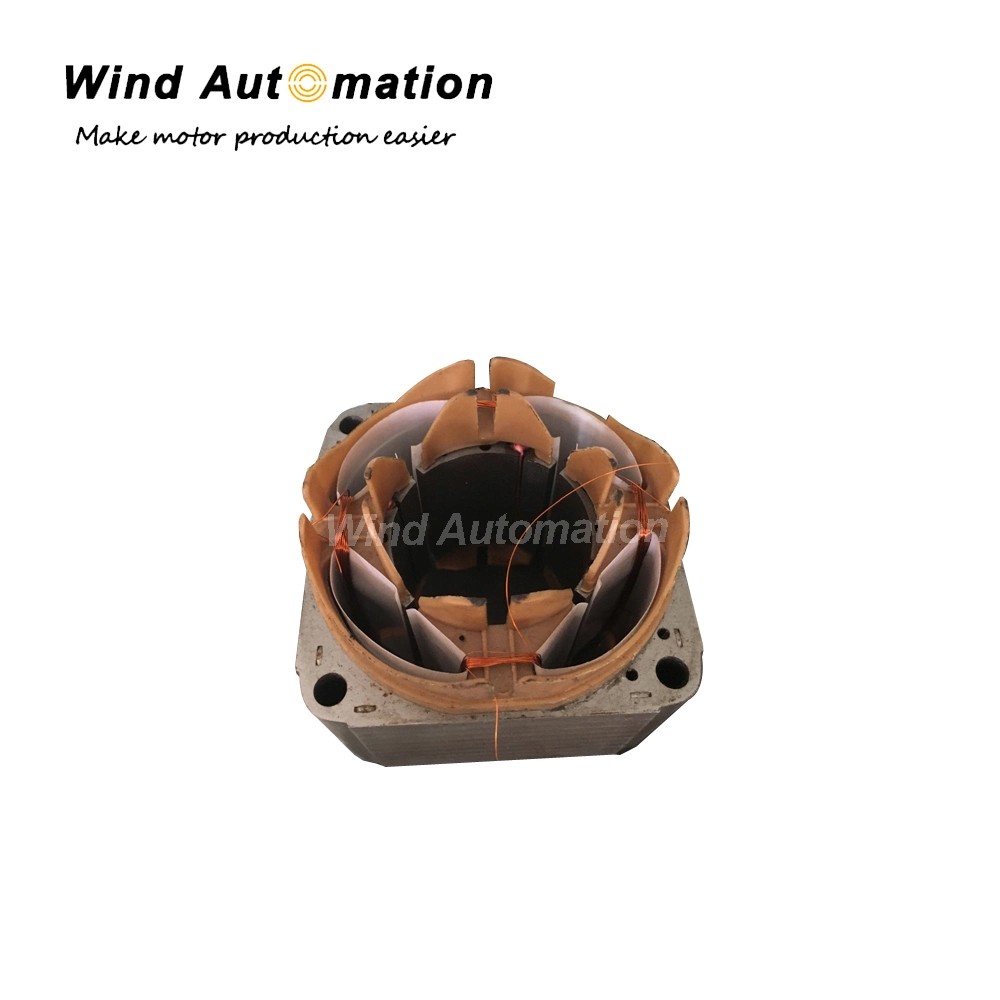

Suitable for various types stators with narrow slot width but high slot filling rate.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

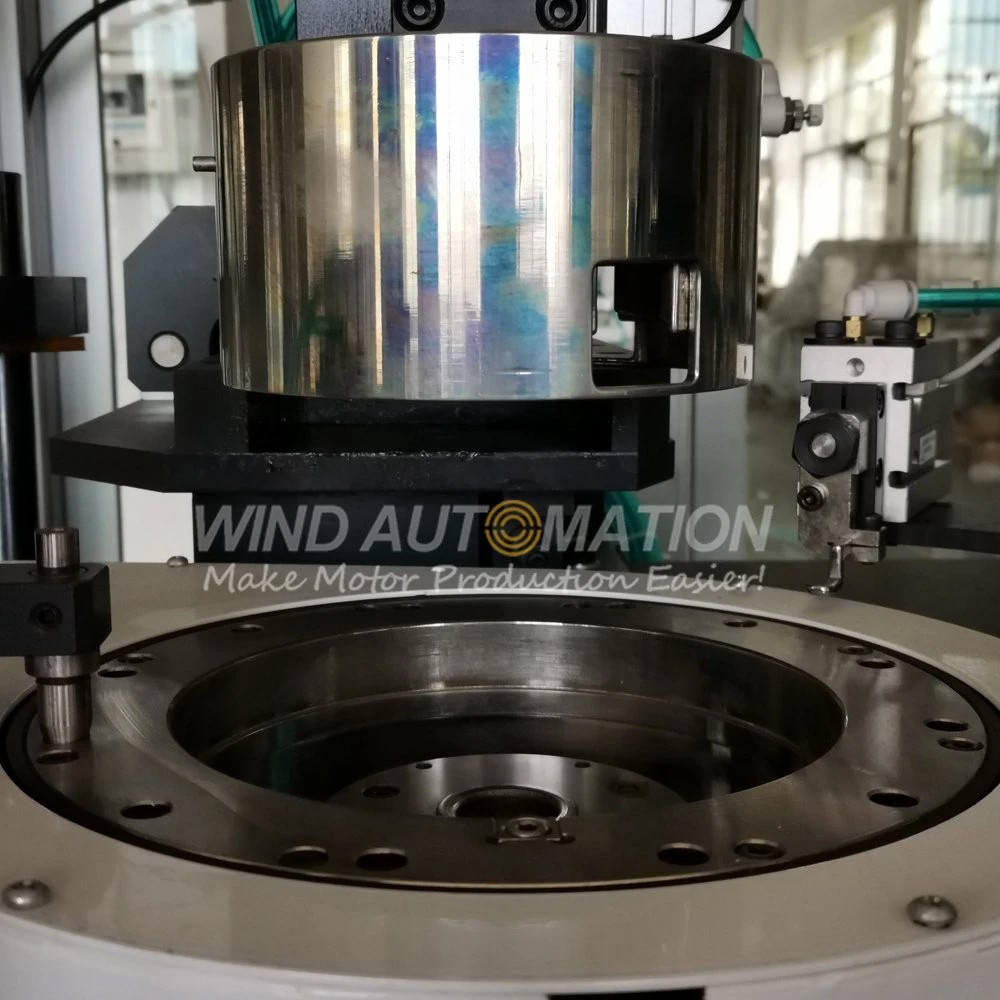

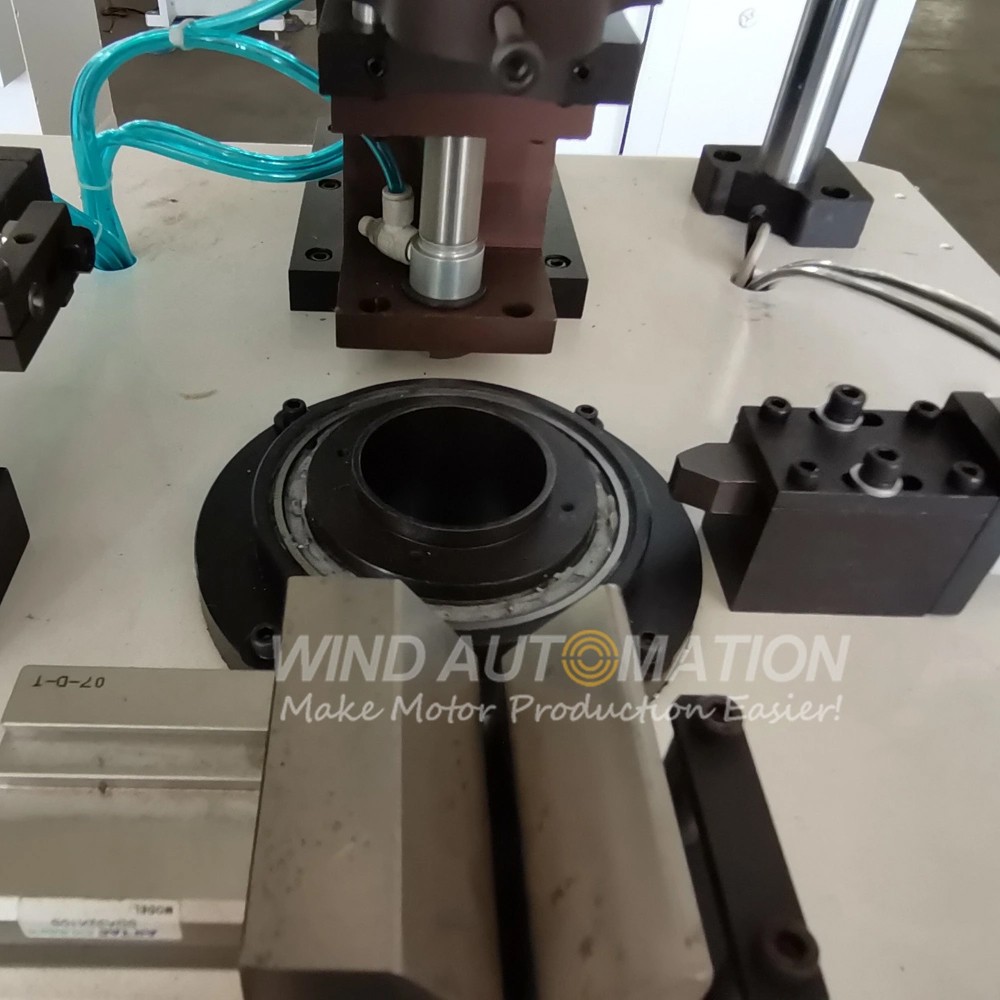

(5) Machine working station

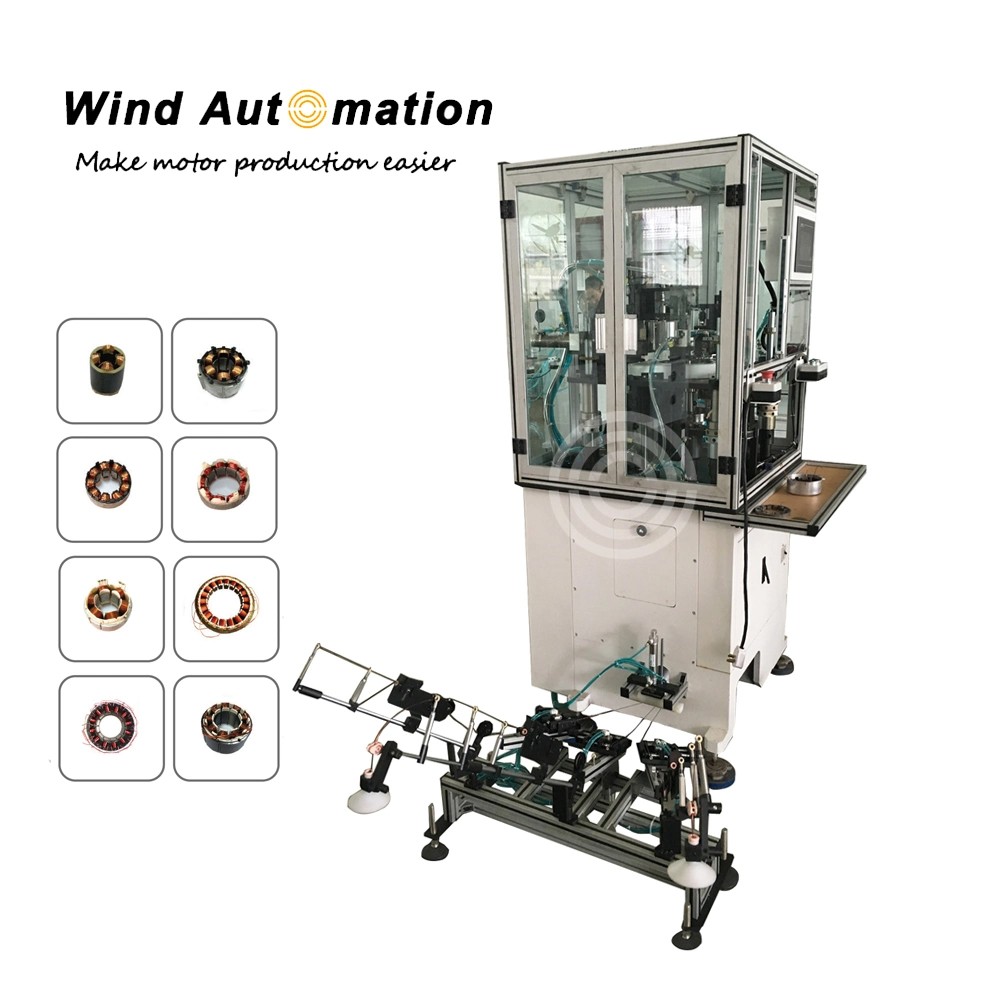

6-18 Slot Stator Needle Winding Equipment
6-18 Slot Stator Needle Winding Equipment

6-18 Slot Stator Needle Winding Equipment
6-18 Slot Stator Needle Winding Equipment
6-18 Slot Stator Needle Winding Equipment
