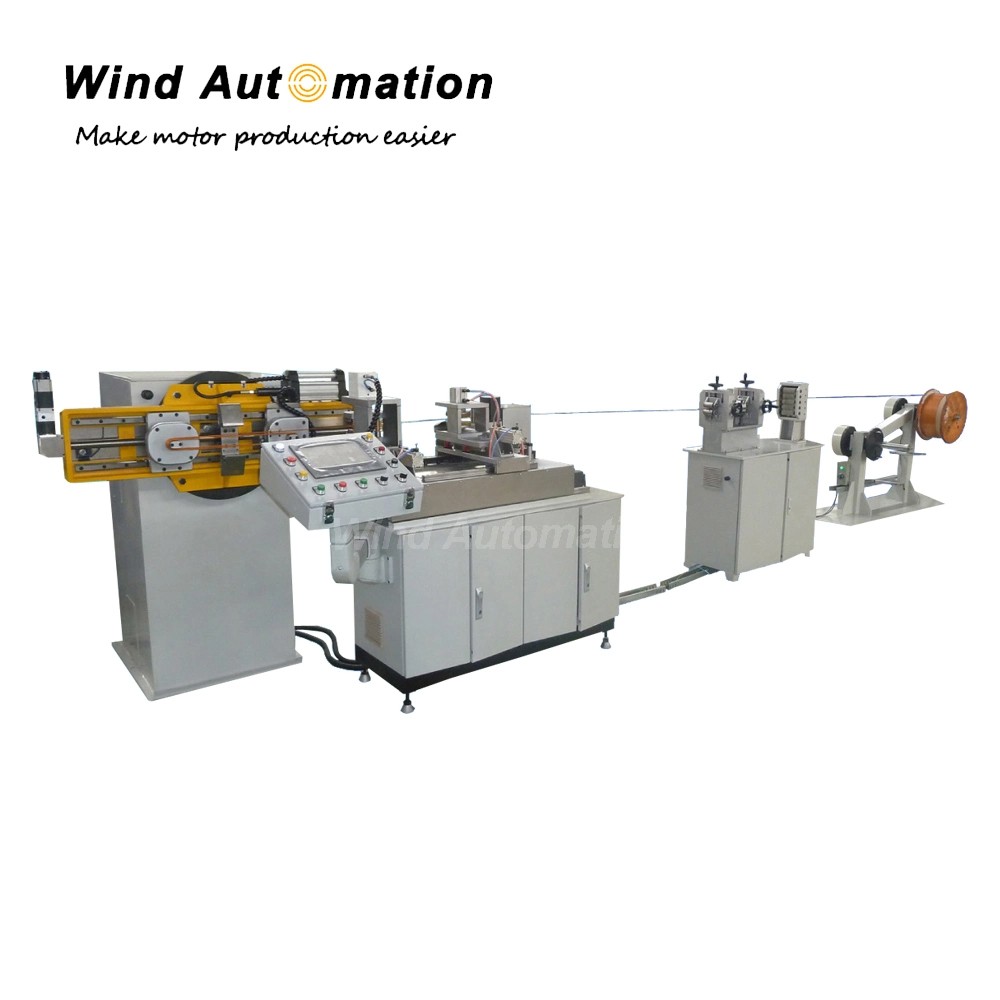

Traction Motor Automatic CNC Coil Winding Machine Coil Winder

Specification

1.This equipment can achieve traction motor coil's automatic winding: automatic coil on, counting, automatic cutting, etc.; only need to start the button after coil reel clamping, then the equipment can automatically complete coil winding according to the parameters, after the automatic completion of winding, the coil automatically loosen, the equipment state reset;

2.Adopt full-digital servo control method, all the parameters input, adjust, save through the touch screen;

3.Winding can be single or multiple pieces together, max. winding number 2 pieces; pay-off uses constant tension wire;

4.Coil fusiform length: 380~800mm; T-type max. 160mm;

5.Coil bobbin diameter 10, 20, 30mm (nose pin radius R5, R10, R15);

6.Coil sectional area: height 16~50mm, width 5~15mm; Wire gauge: wire thickness 1~5mm; Wire width 2.5~15mm; Each wire's tension 0~60kg adjustable. The electromagnetic coil reel max. 200kg;

7.Dimensional precision after winding: ±0.1mm; With counting function: max. recordable number of turns 999;

8.Main axis speed (stepless speed regulation): 0~40rpm; main axis max. load: 400kg
