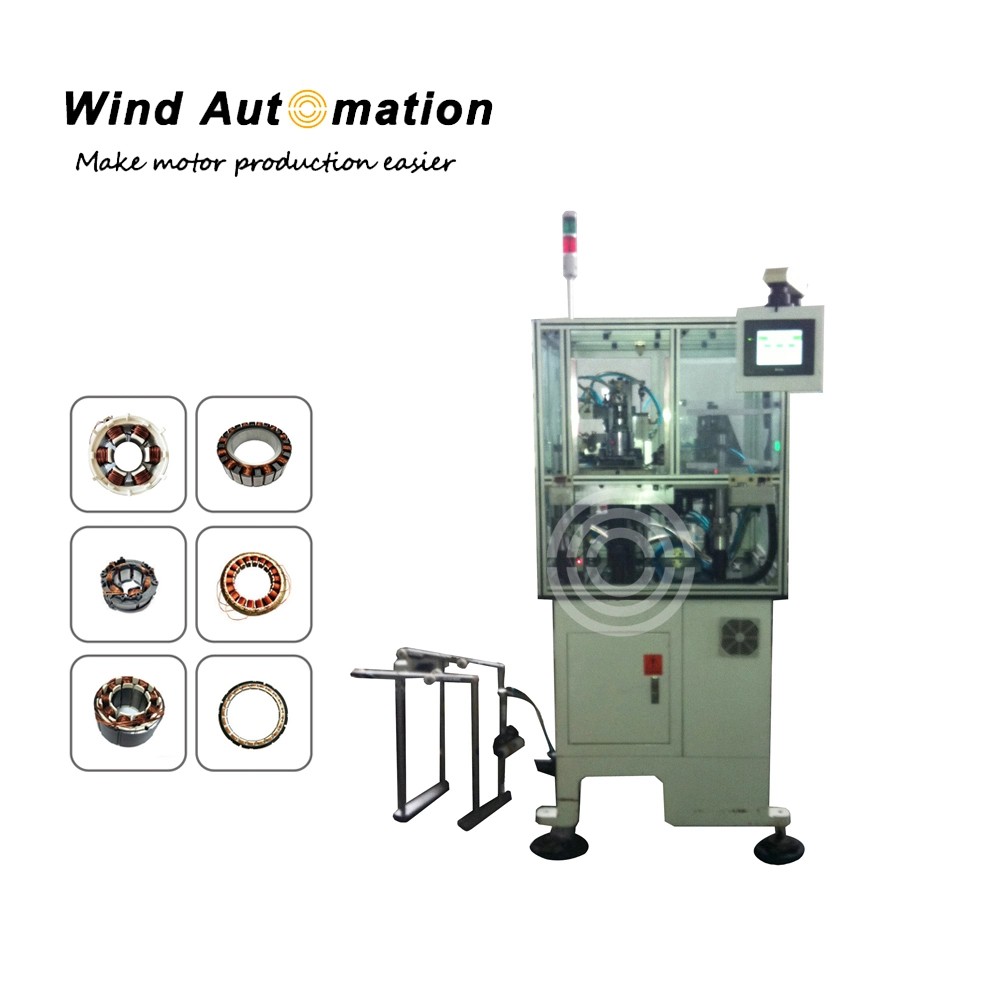

Needle Solution for BLDC Motor Production Equipment

We provides customer with various needle winding solutions. Our needle winding machine has different working stations, up to six. Meanwhile, it covers a wide application, not only for BLDC motors but also other motors, such as power tool, stepping motor, open pole, muti-poles stators.

(1)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

(2)Specification

(3)Application

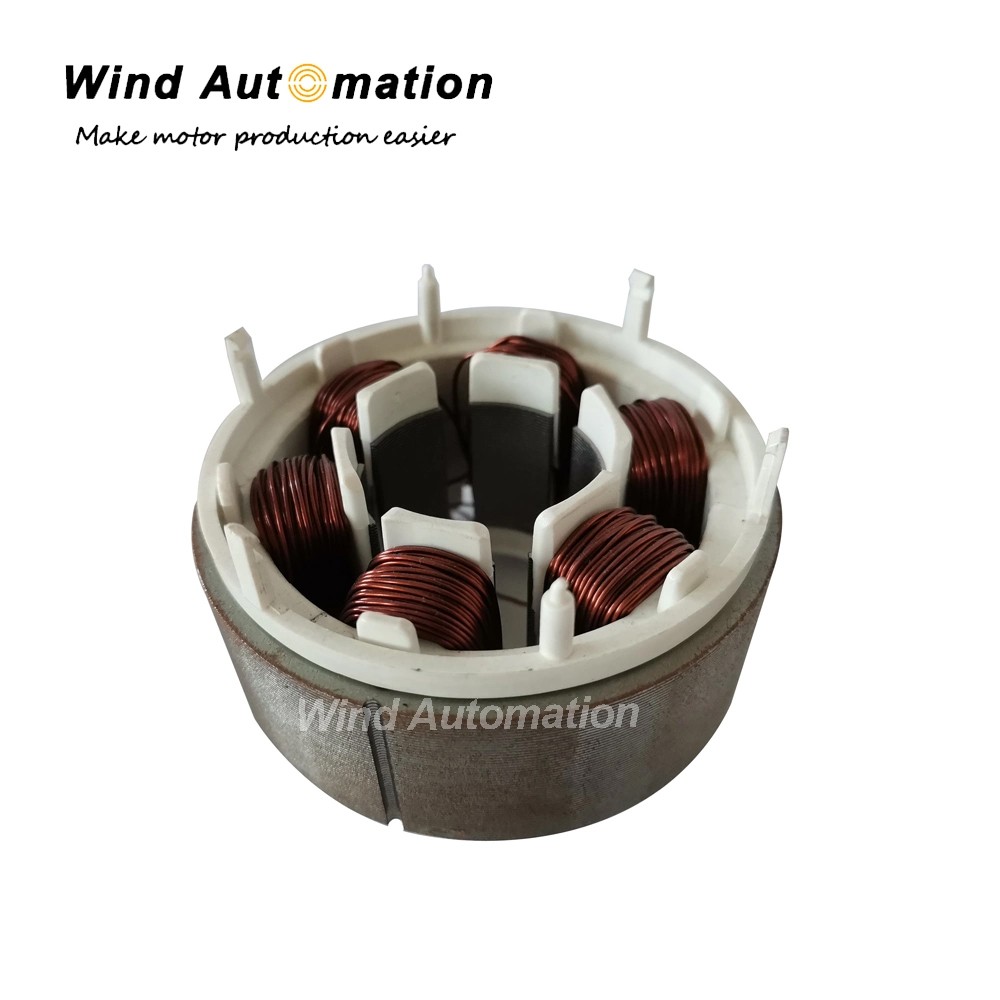

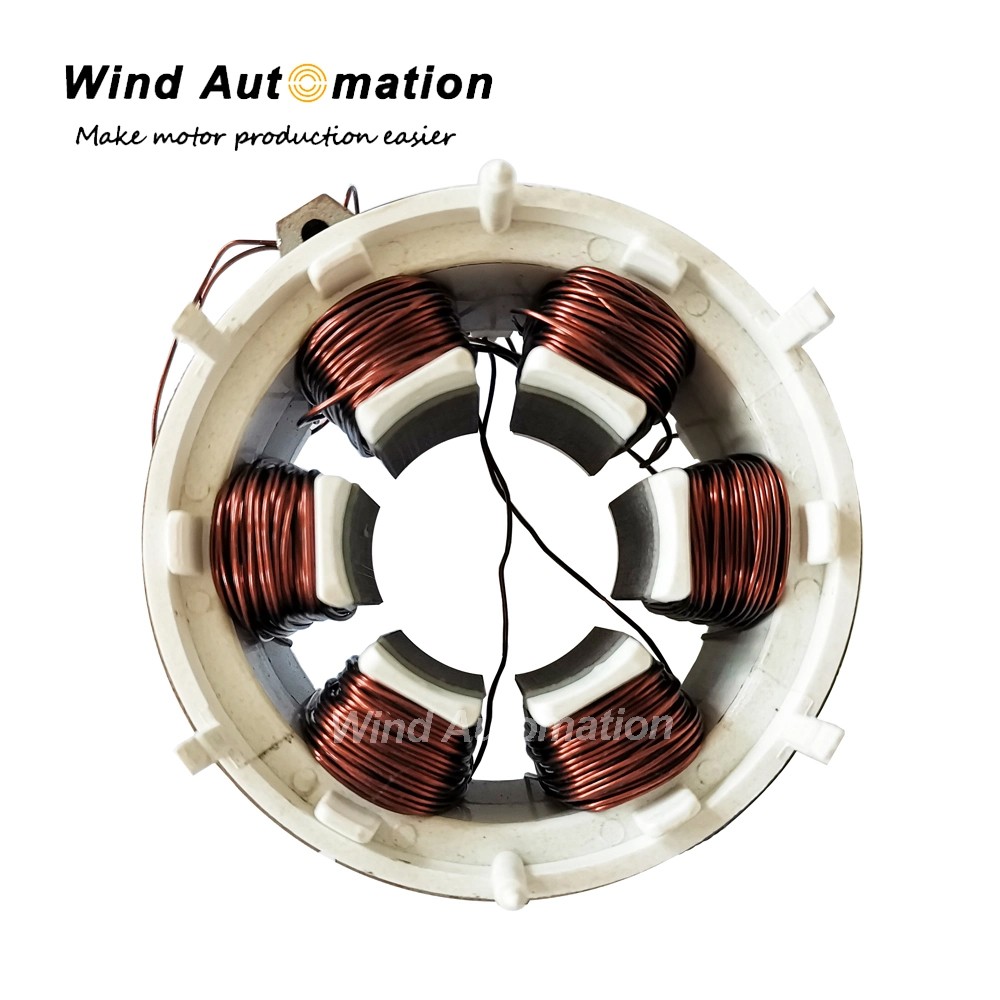

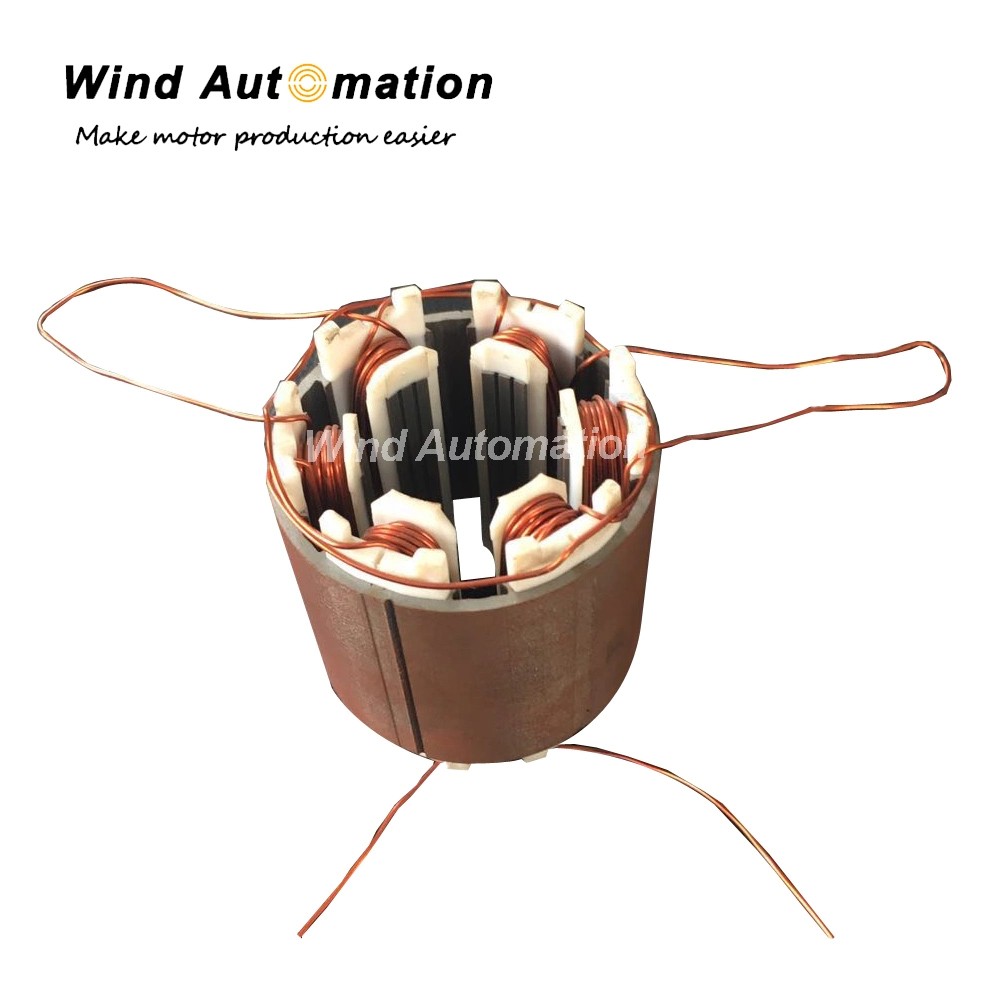

suitable for various types stators with narrow slot width but high slot filling rate.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

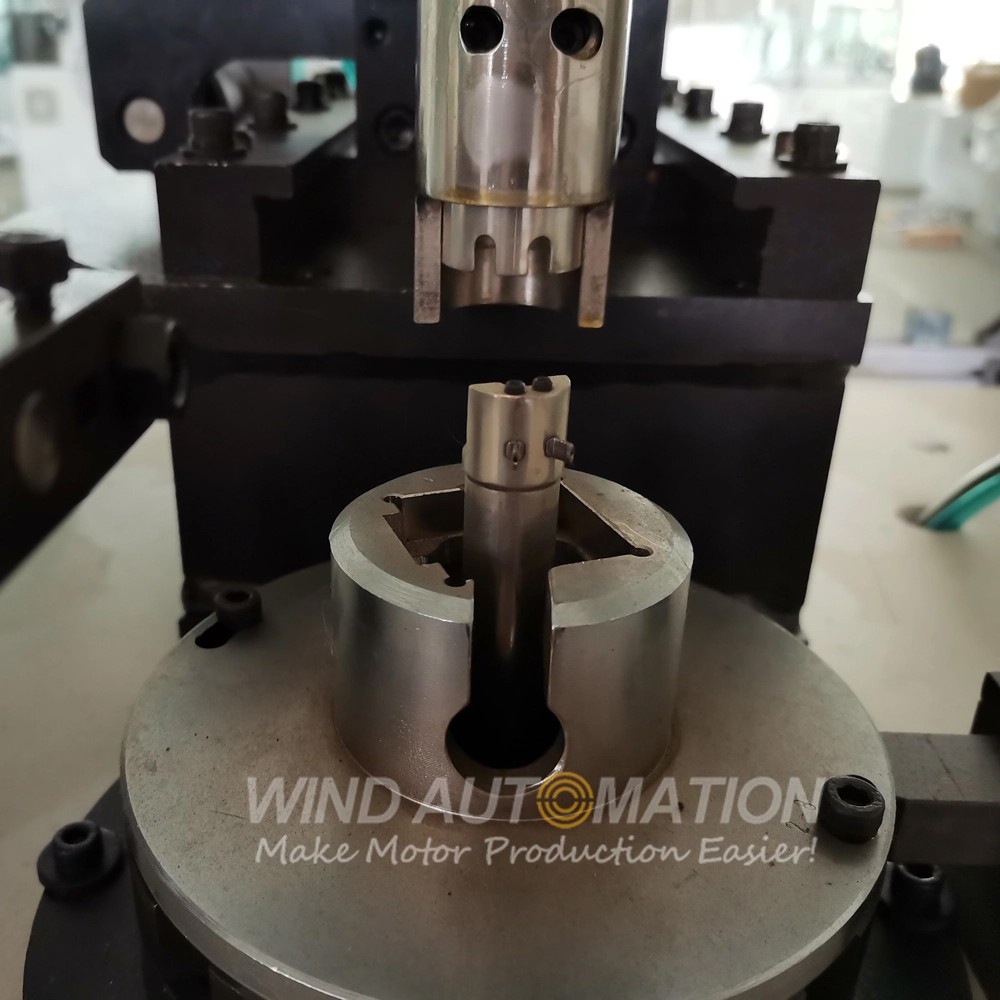

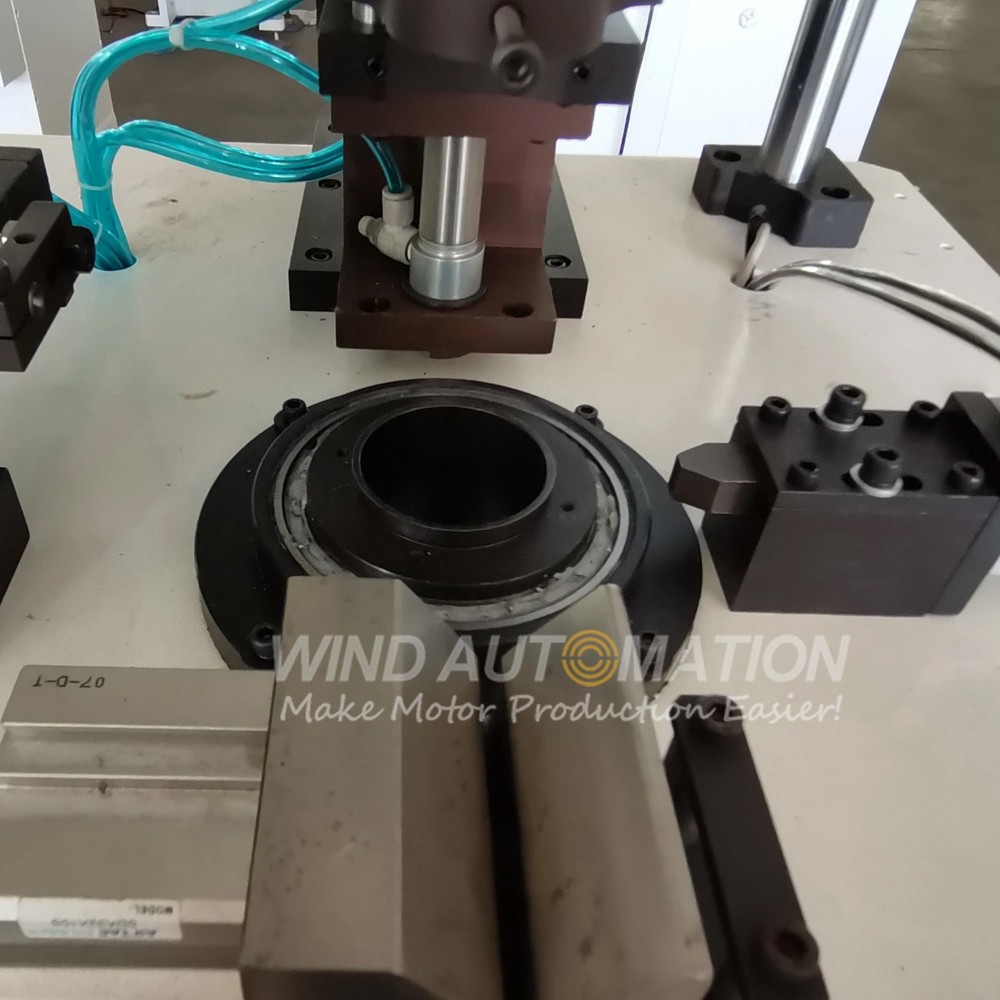

(5) Machine working station
