36-Slots-BLDC-Stator-Needle-Winding-Machine

Product Description

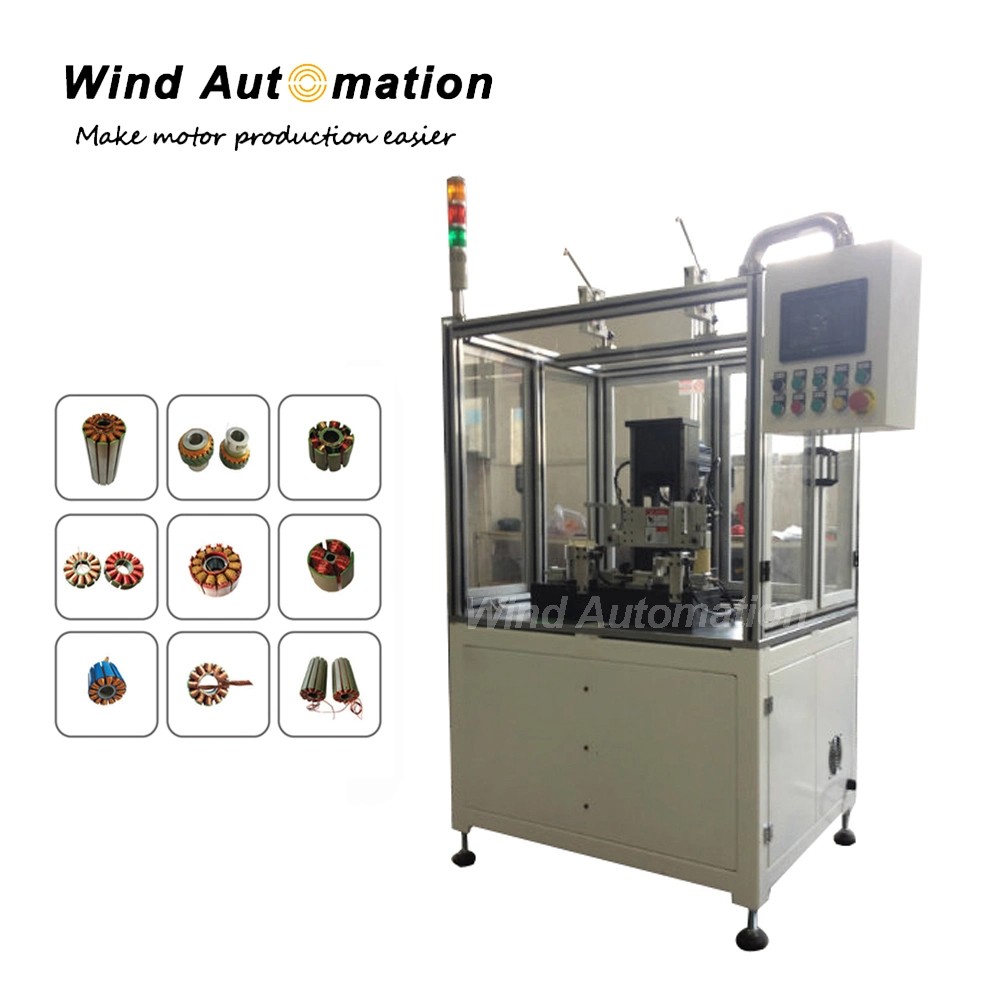

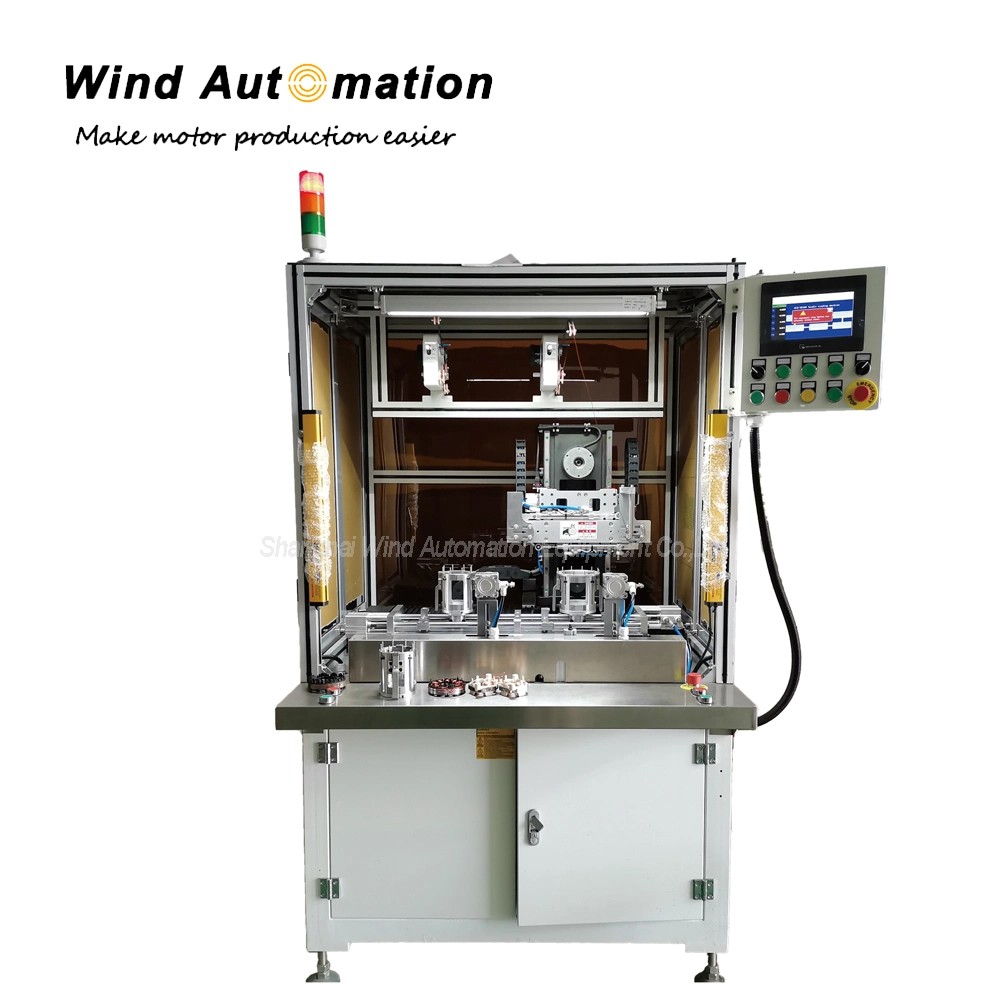

36 Slots BLDC Stator Needle Winding Machine

This two working stations needle winding machine can wind 36 slots BLDC motor stator. The winding process is controlled by 4 servo control spindle, with no-loading speed up to 600r/min.  Moudle tooling design makes tooling changeover faster and easier.


(1) Specification

(2) Application

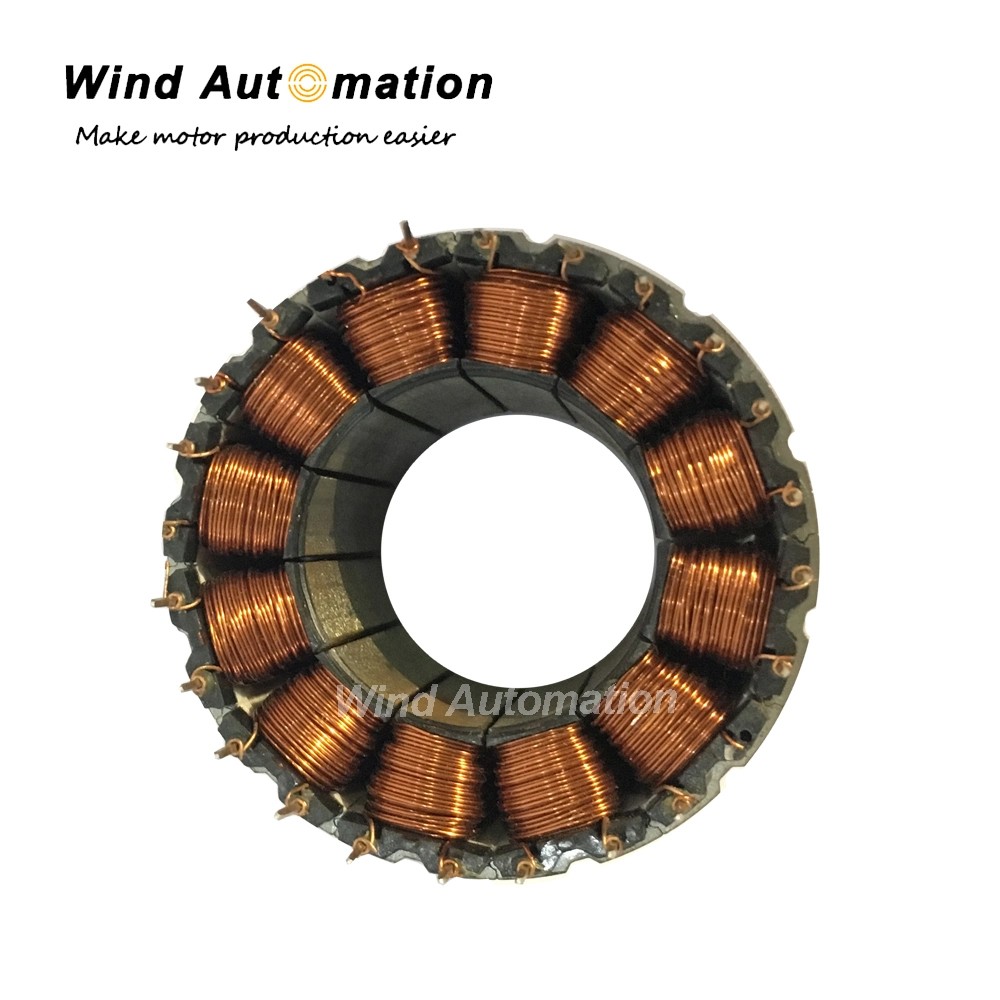

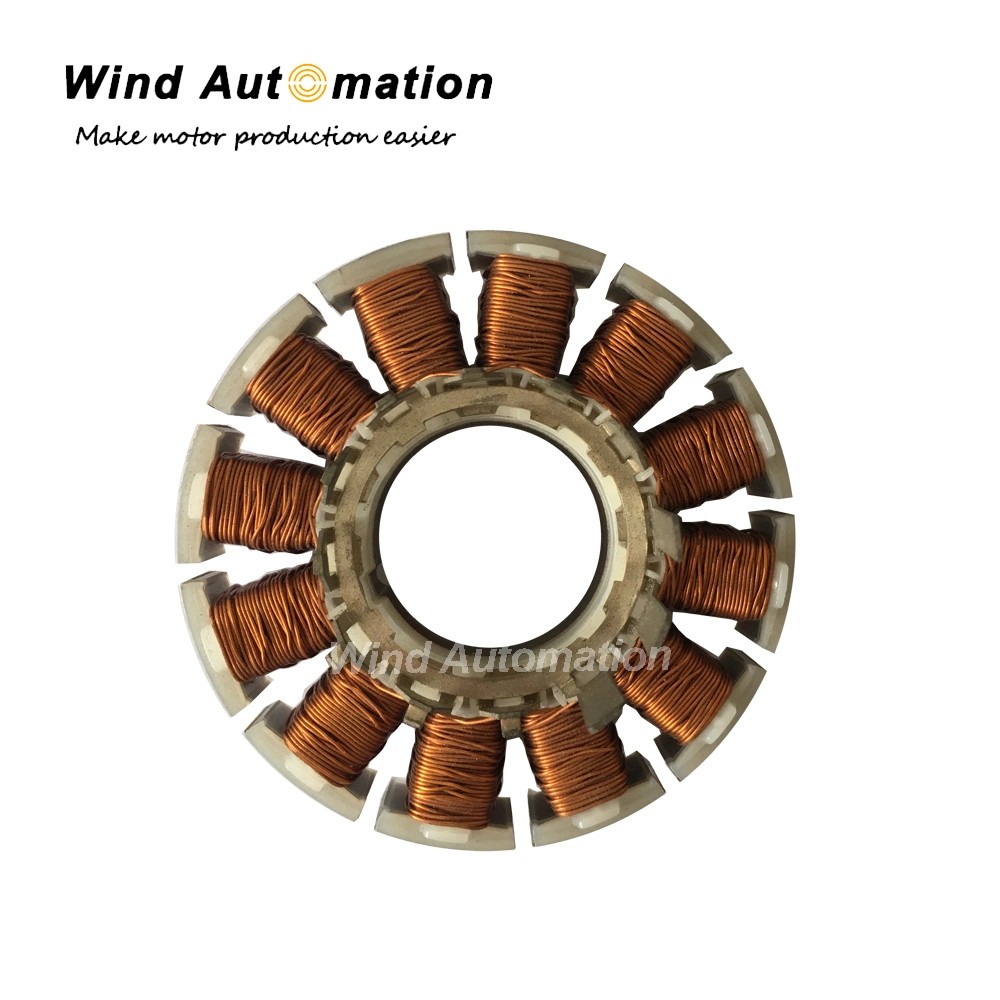

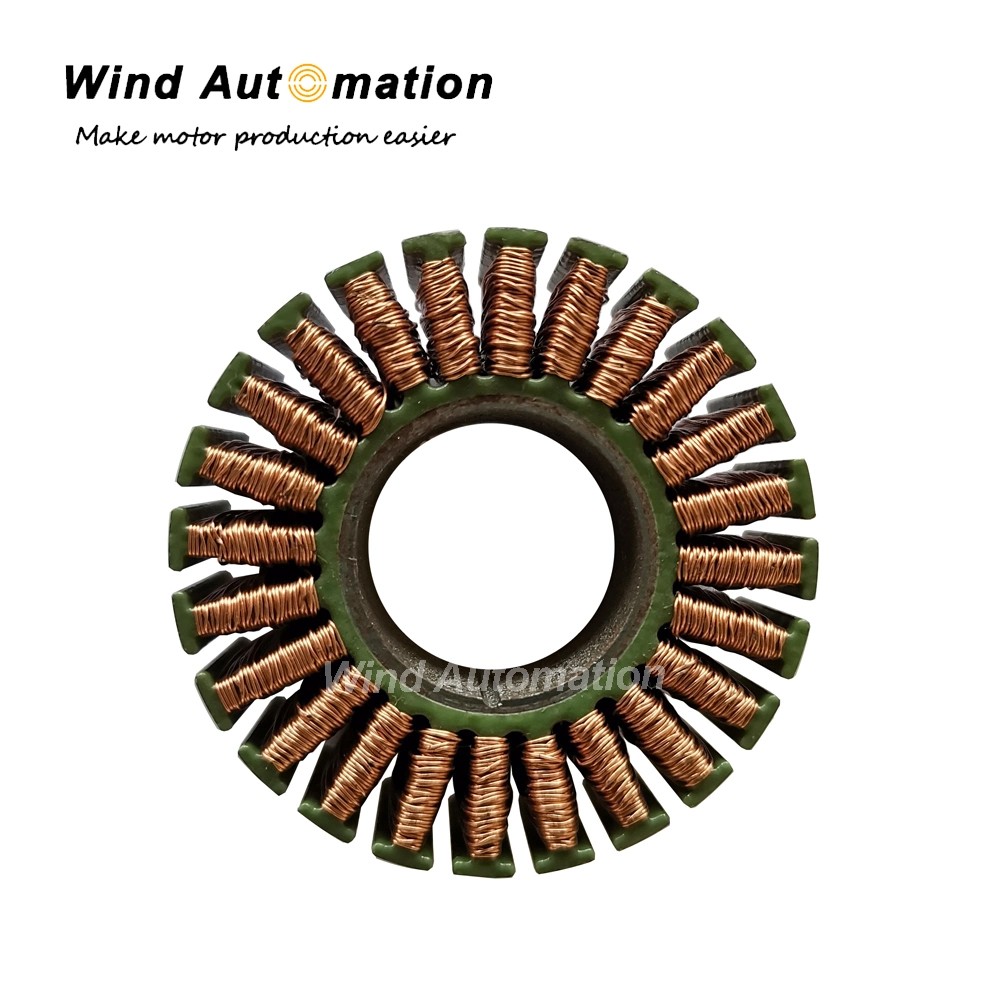

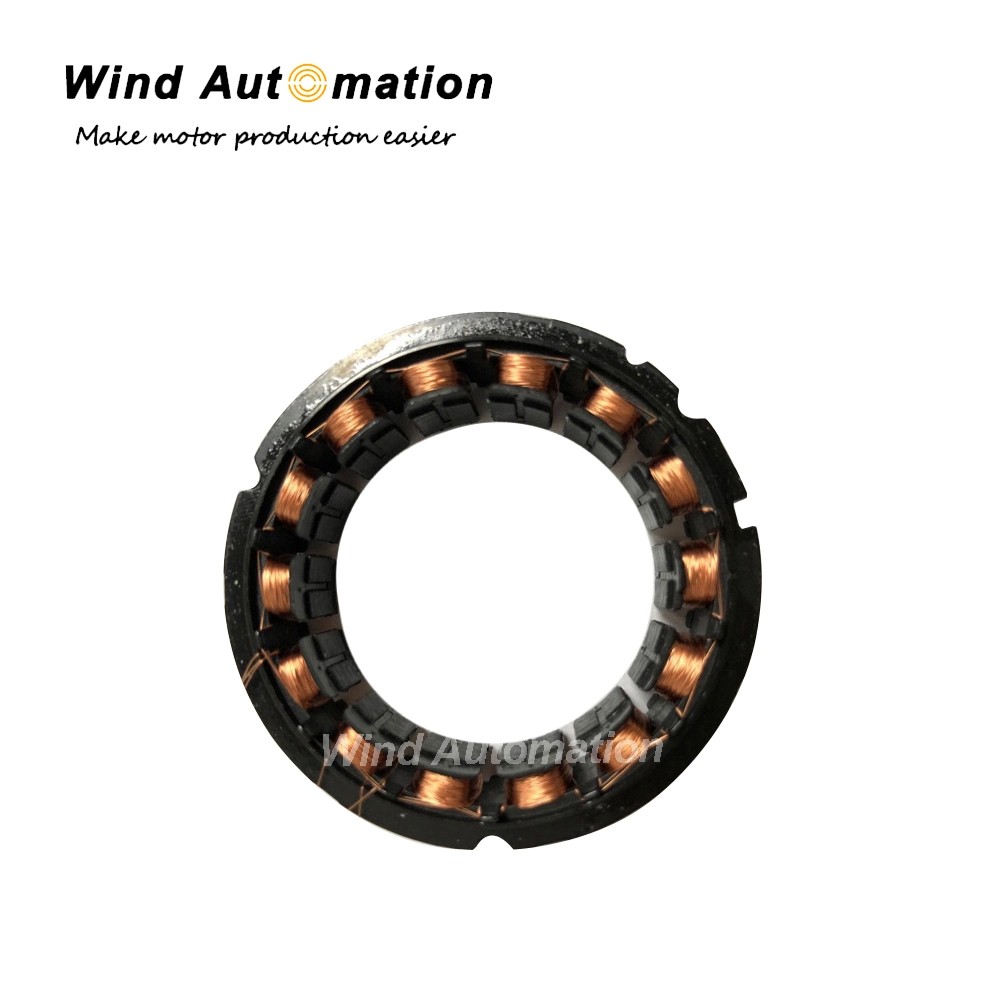

It is suitable for brushless motors.

(3) Features
4 servo control spindle
Moudle tooling design
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.
