Generator-Motor-Turn-Test-Resistance-Test-Brushless-Motor-Stator-Testing-Machine

Product Description

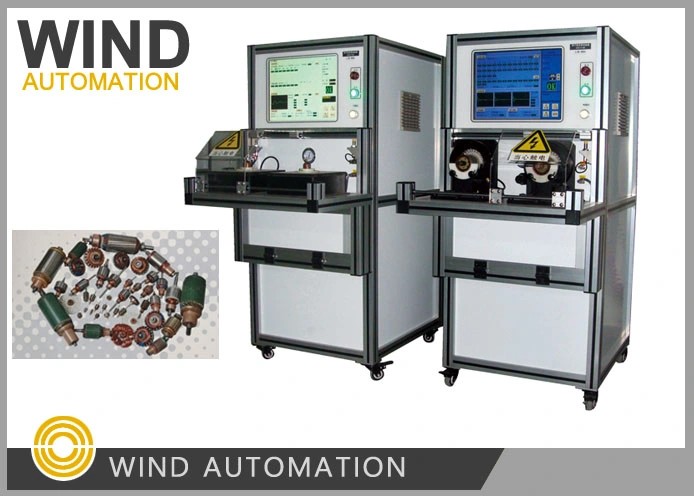

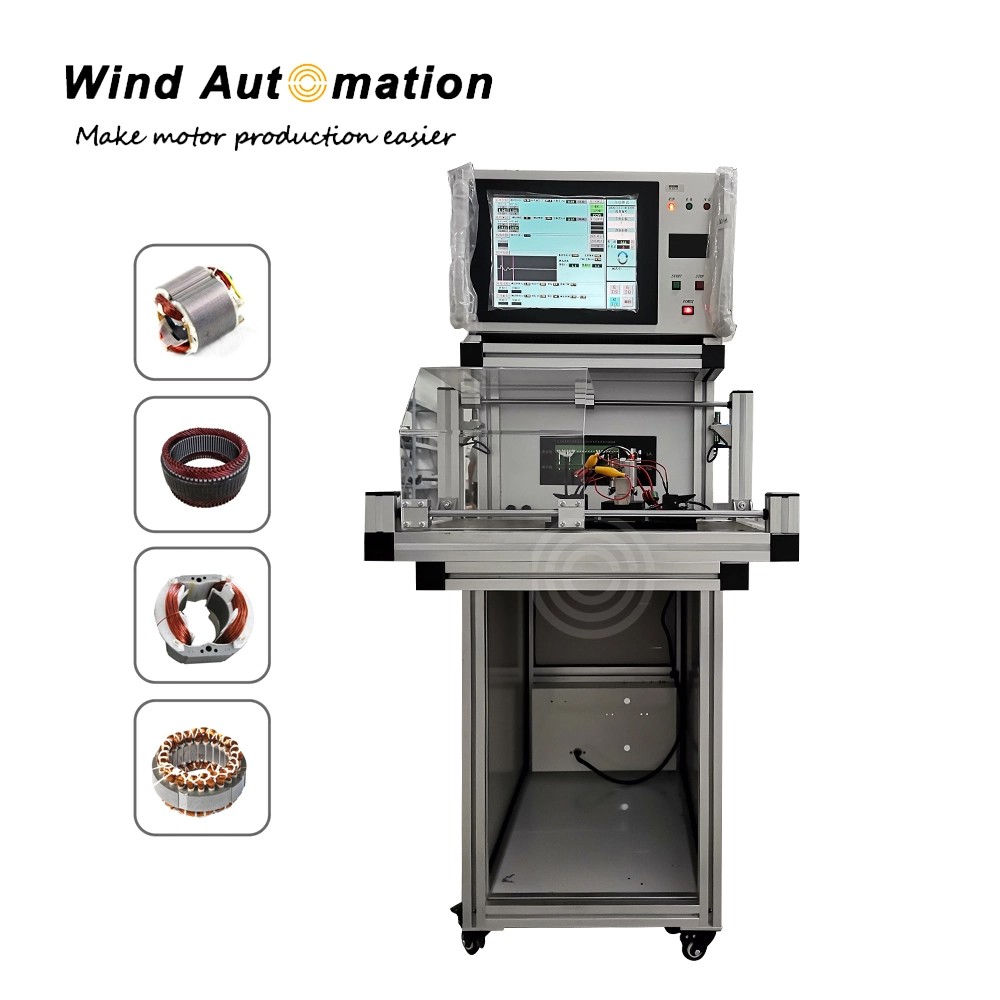

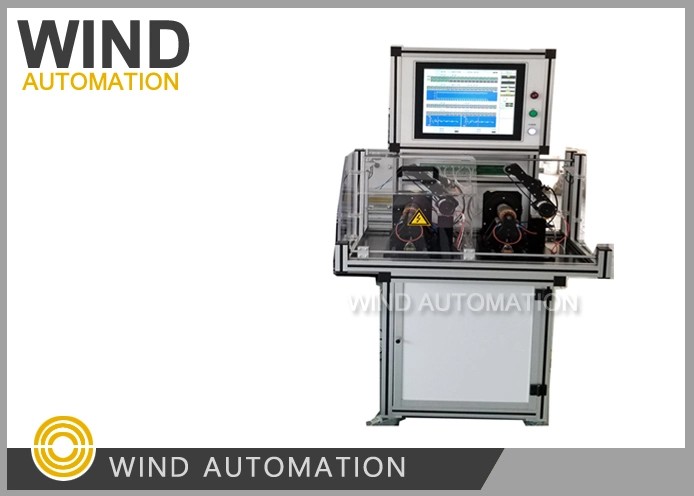

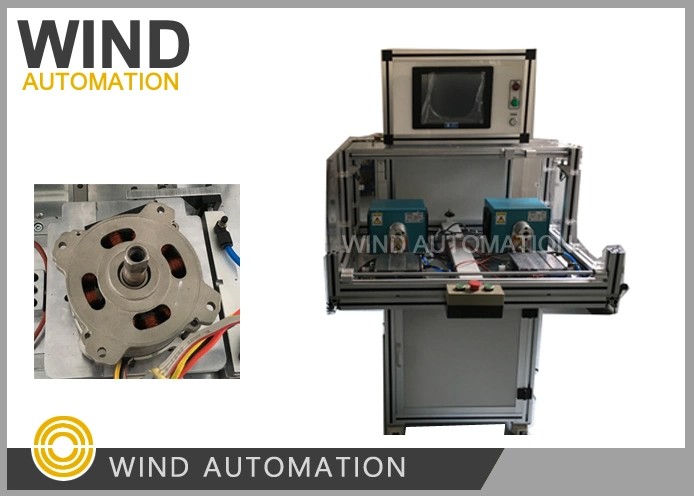

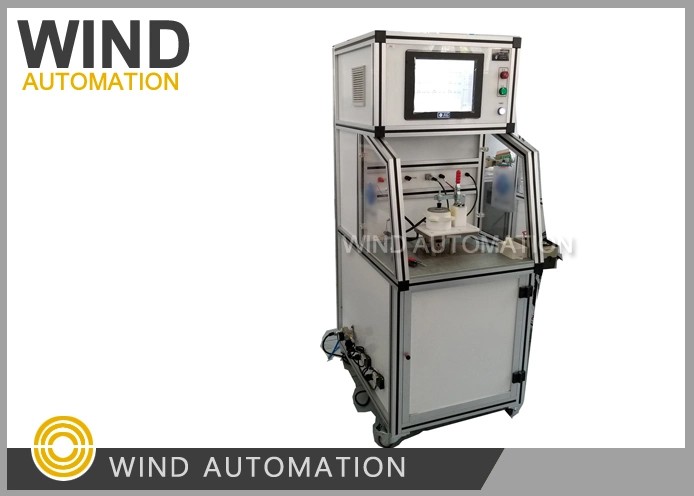

Generator Motor Turn Test Resistance Test Brushless Motor Stator Testing Machine

This machine can test not only one testing item, but servel many. All testing process is done by machine automatically. Operation and maintenance  is quite easy.

Testing item:

1)DC resistance test
Testing range:0.01W - 1000W
Testing loop:6 loop(scalable)
Tolerance:±0.5 %
Testing method:Four points, with auto ambient temperature correction function

2)Inductance test(including 3 phase balance test)
Testing range:10mH - 500mH
Testing loop:6 loop(scalable)
Tolerance: ±2.5%
Testing method:Four points

3)Turn to turn insulation
Pulse high voltage: 100V-3000V (100V / step)
Pulse peak: 0.5msec
Sampling frequency: 1-40 MHZ
Testing loop:6 loop(scalable)
Tolerance: ±2.5%
Judging method: area difference judgment (sensitive to inductance and energy loss)

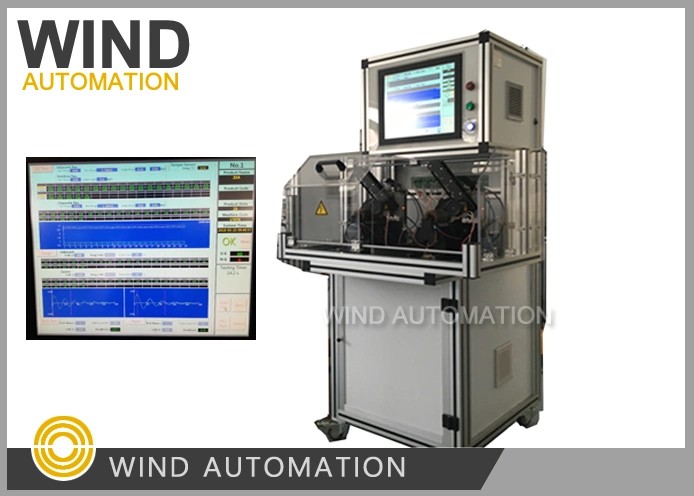

Standard waveform is White,OK waveform is Green, NG waveform is Red

4)Insulation resistance
Voltage:DC500V /1000V
Testing time:1-10s(adjustable)
Judging range:1-1000 MW
Tolerance: ±2.5%

5)Interphase insulation
Voltage:DC500V /1000V
Testing time:1-10s(adjustable)
Judging range:1-1000 MW
Tolerance: ±2.5%

6)Interphase hipot
Voltage:AC100-3000V (100V/step)
Testing time:1-10s(adjustable)
Judging range:0.1 mA --  20 mA
Tolerance: ±2.5%

7)Hipot(with arc detection)
Voltage:AC100-3000V (100V/step)
Testing time:1-10s(adjustable)
Judging range:0.1 mA -- 20 mA
Tolerance: ±2.5%

8)Balance of resistance
Test method: DC resistance sampling
Testing time:0.1s
Judging method:percentage method adopted to judge the difference of DC resistance between windings.
