Basic Info.

Model NO.

WIND-250B

Customized Service

Provided

Application

Big Power Motor Stator Coil

Wire Size Range

Above 0.3mm and Below 1.5mm

Wire Making Type

Semi-Automatic

Loading/Unloading

Loading Automatically, Unloading Manually

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Packaging & Delivery

Package Size

3000.00cm * 1000.00cm * 1650.00cm

Package Gross Weight

1200.000kg

Product Description

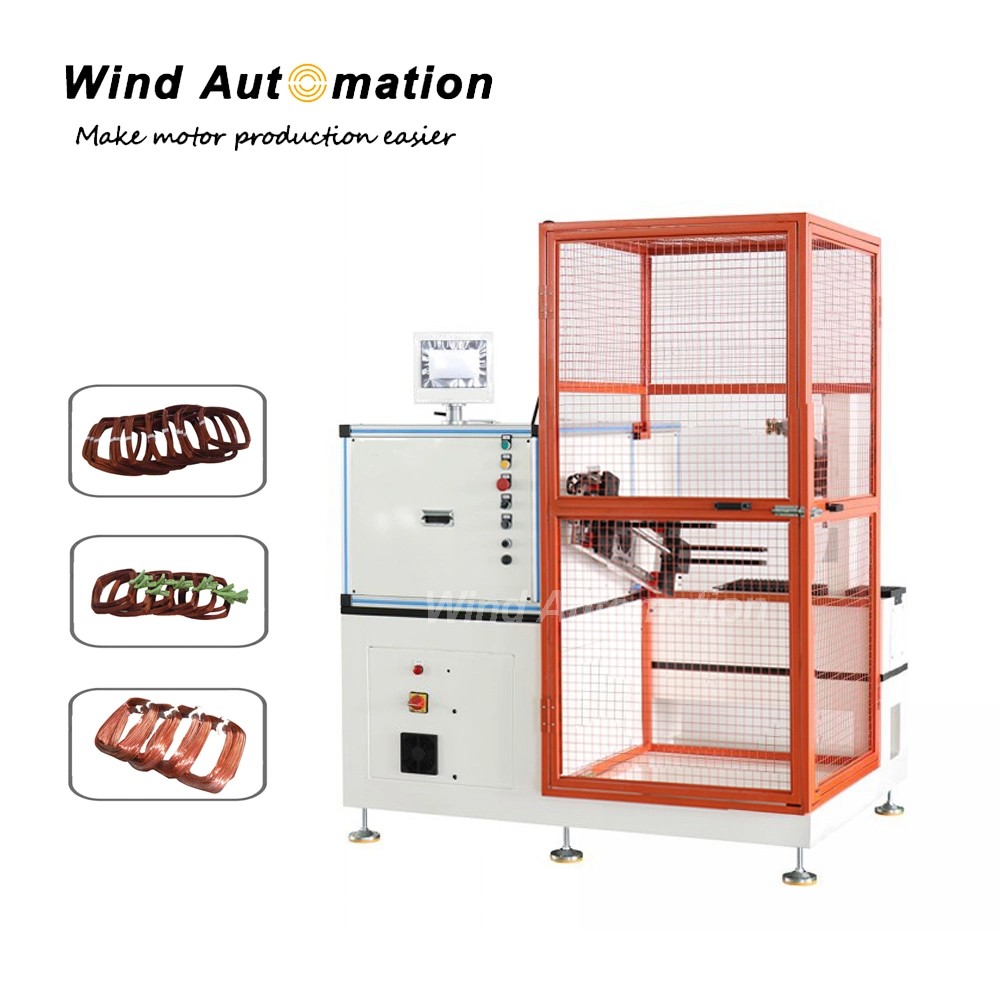

Stator Winder Wire Makeing Machine For Three Phase Motor

Stator Winder Wire Makeing Machine for Three Phase Motor

(1) Specification

Wire diameter	0.3~1.5mm
Max parallel wire number	12
Swing diameter	200~650mm
No-load speed	Max 160r/min
Wire type	Copper/Alum wire
Air pressure	0.4~0.6MPa
Power	4KW
Suitable frame size	200, 225, 250, 280
Power supply	380V 50Hz
Weight	350KG
Dimension	1300x650x1700mm

(2) Application
Suitable for winding chained and concentric coils. Apply to large or big stators with big power, such as deep well pump motor or other big power stators.

(3) Feature

One winding head

Suitable for big power motor stator

High quality level of the winding process

Integrable in a production line

Different model types can be run simply by changing the program and tooling
