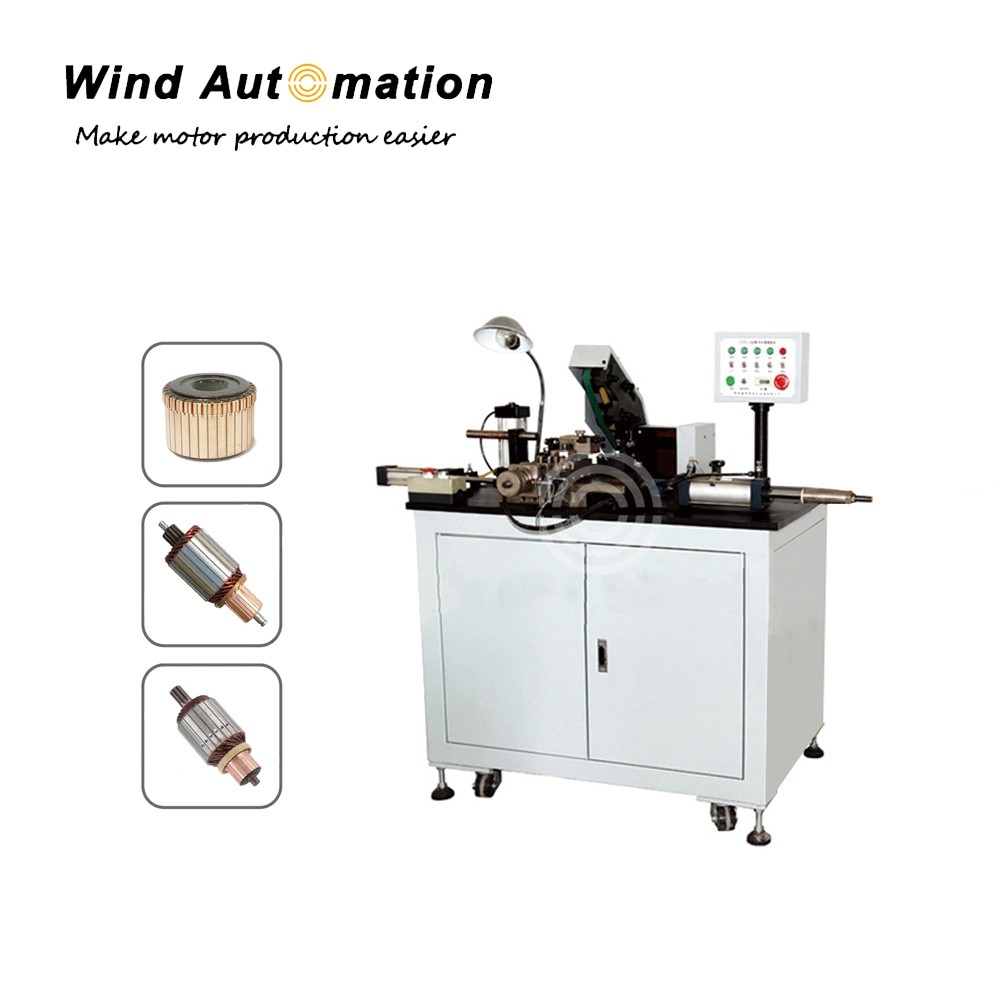

Starting Motor Armature Core Turning Machine
This armature turning machine is designed for turning armature surface or lamination. It has a high level of turning quality. The belt rotational system is driven by a AC servo drive motor. Dust collector can automatically collect swarf removal.
(1) Specifications
| Rotor OD | 20~90mm |
| Spindle OD | 3~18mm |
| Max cutting volume | 0.15mm |
| Max cutting length | 90mm |
| Surface roughness | Less than Ra 1.6 |
| Concentricity | Less than 1µm |
| Max unilateral cutting | 0.1mm |
| Air source | >0.5 MPa |
| Input Power Source | AC 220V |
| Weight | 400 KG |
| Dimension | 1100mm × 700mm × 1400mm |
(2)Application
This machine is suitable for any type of commutator of starter rotors, automotive car motor.
(3) Features
Mitsubishi PLC control system
Precise servo drive control of the cutting process
Fully automatic turning cycle after loading of the armature
Strong applicability and wide application
Sophisticated turning technology based on using servo drive systems
Suitable for both hook and riser type commutator
V type tool holder for turning
Dust collector outlet for swarf removal
Adjustable drive system speeds and belt tension
Quick and easy readjustment for other types of armatures
