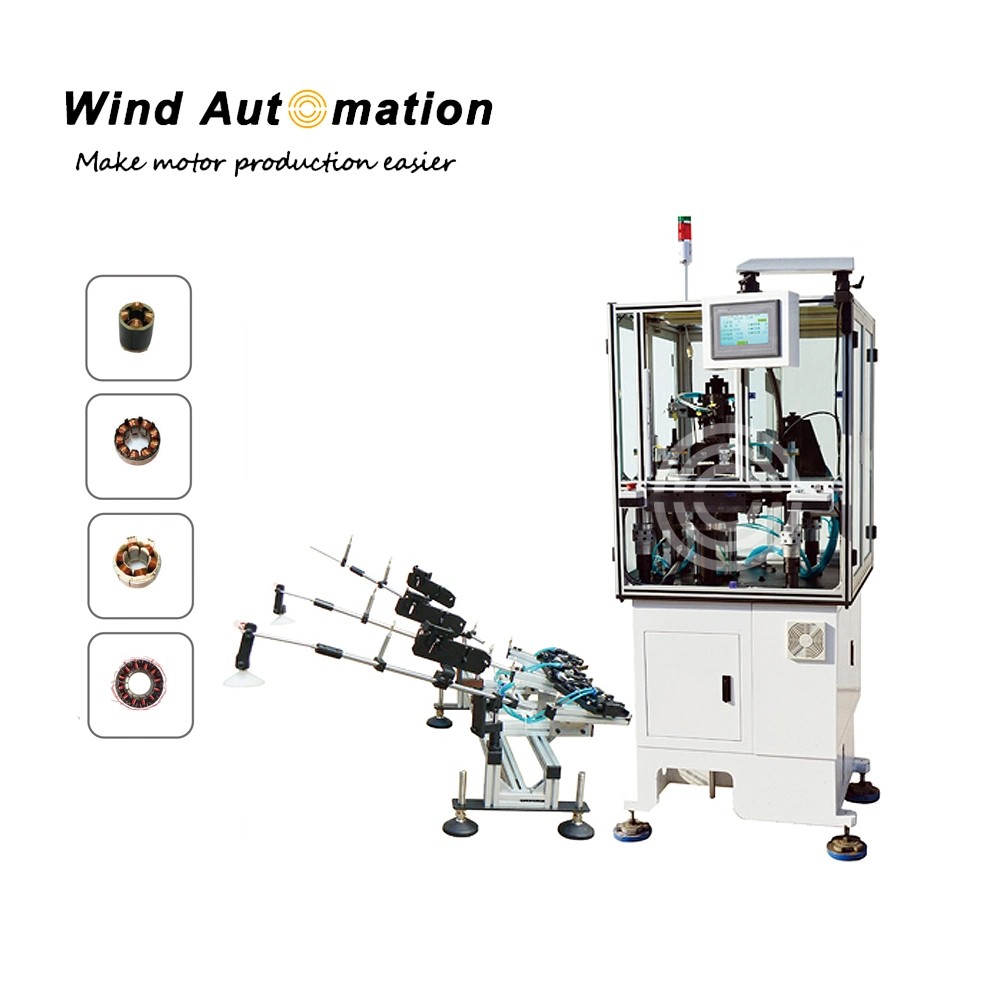

Automatic 3 Needles Coil Winding Machine For Inner Stator

This needle winding machine is special designed for BLDC motor to do coil winding.  Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.

(1)Application

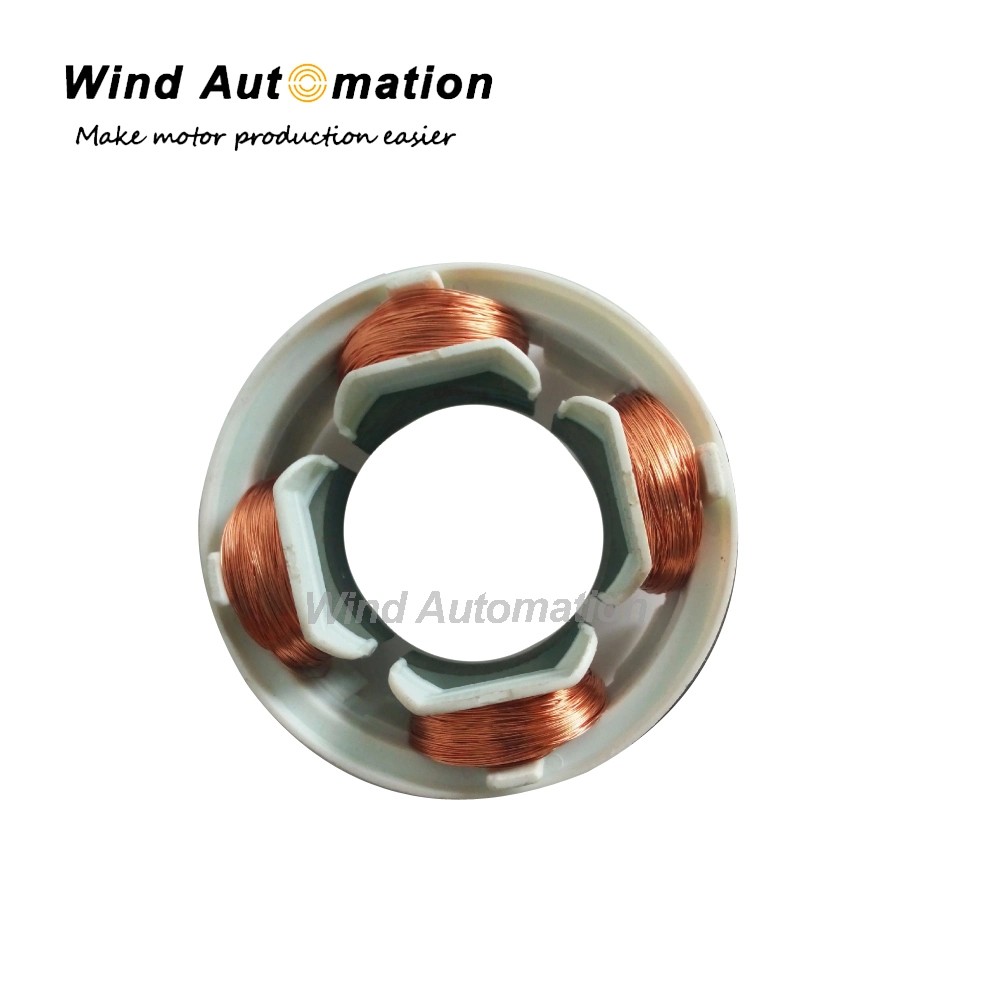

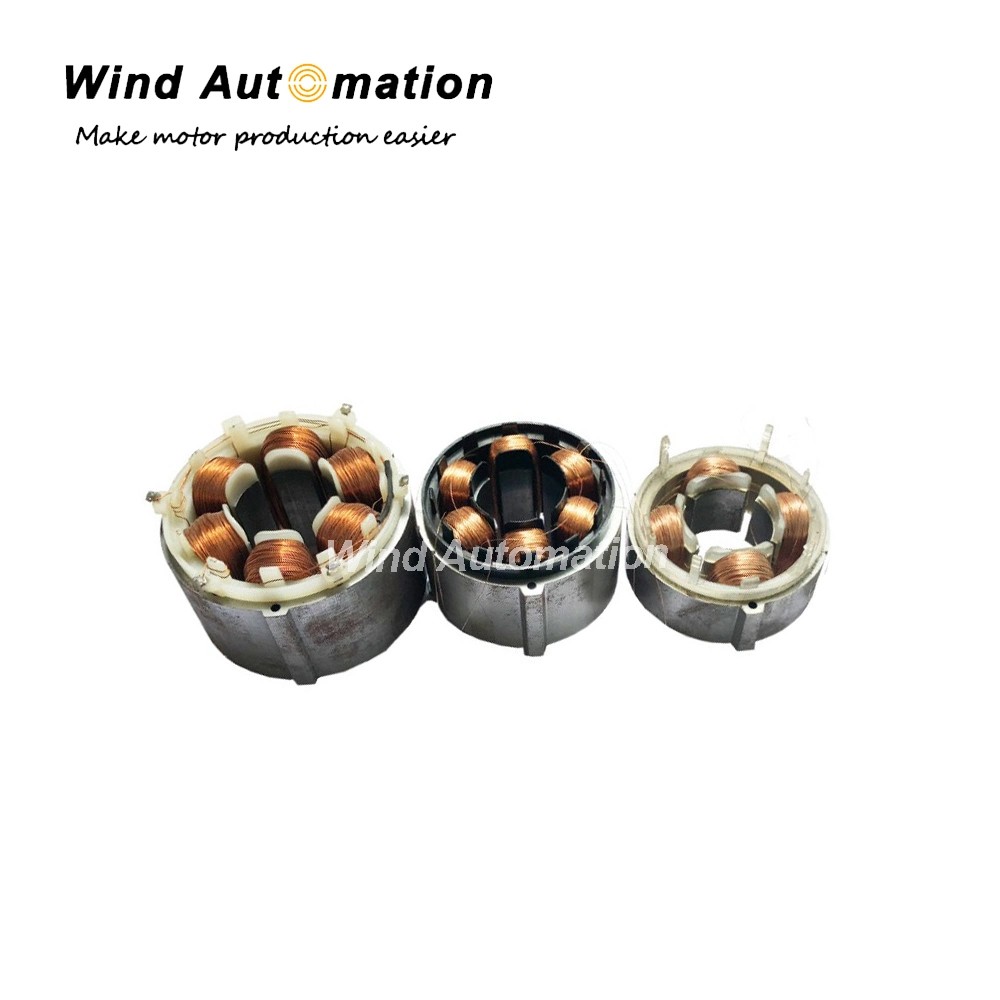

suitable for various types stators with narrow slot width but high slot filling rate.

(2)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Winding parameter adjustable according to different stators

(3)Specification

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

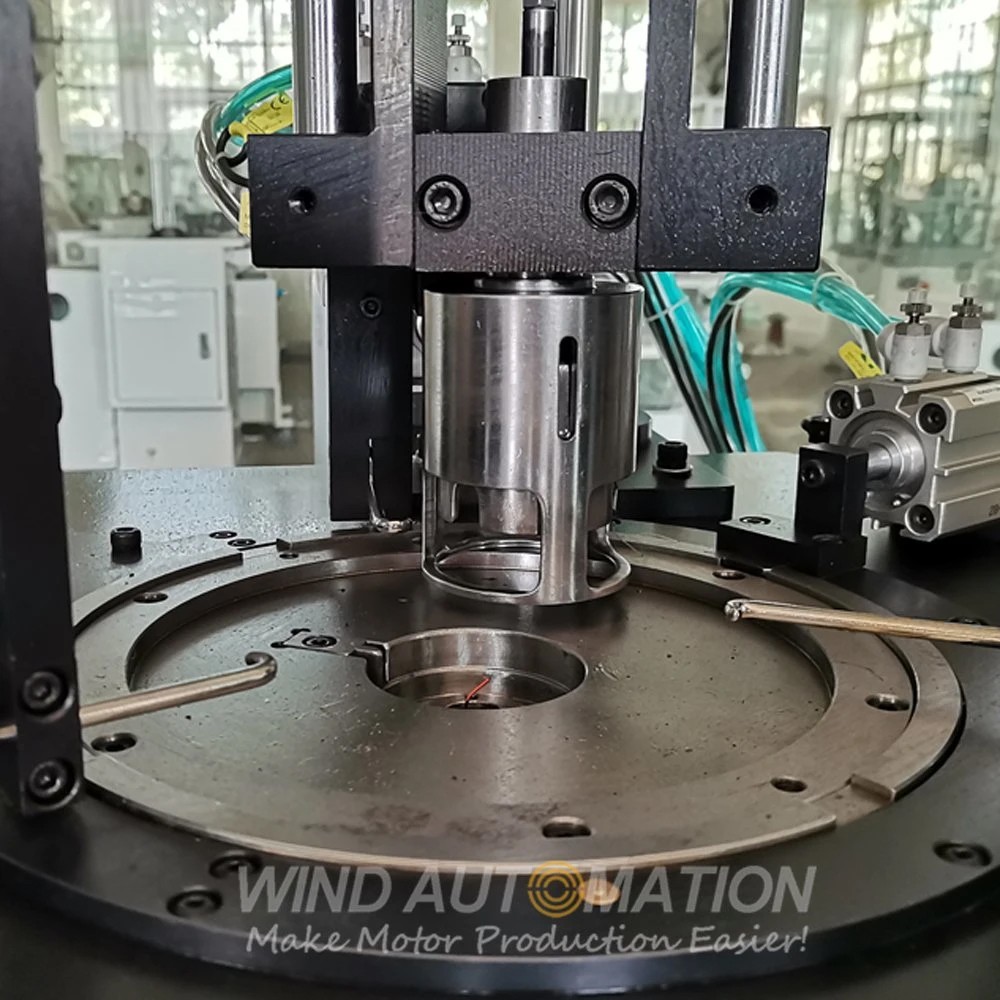

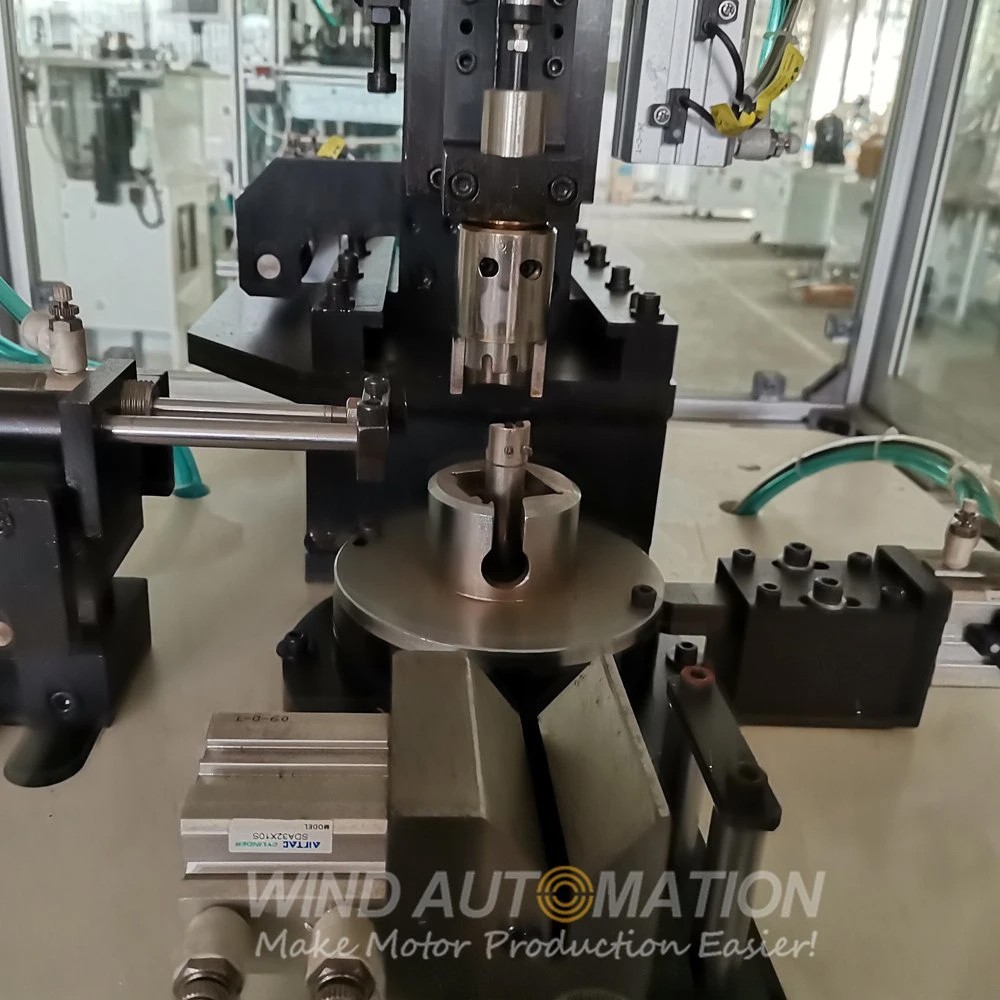

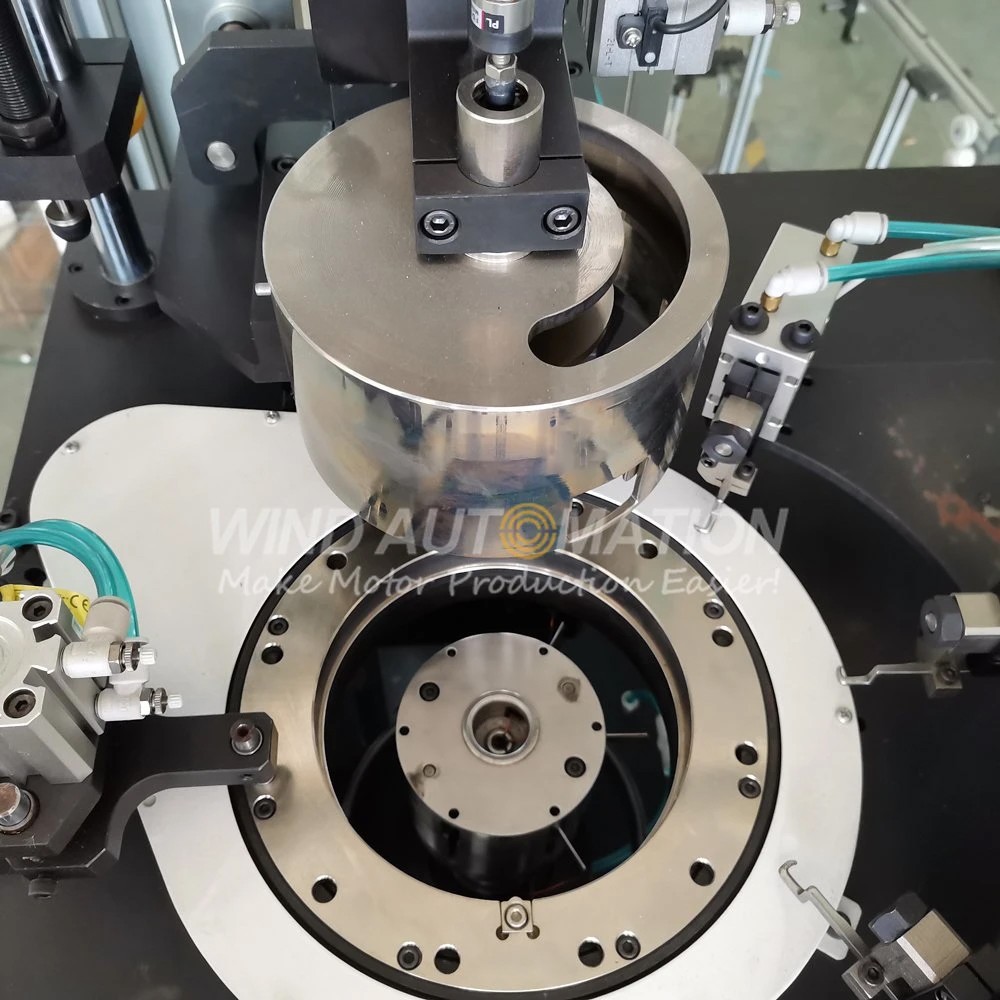

(5) Machine working station
