Product Description

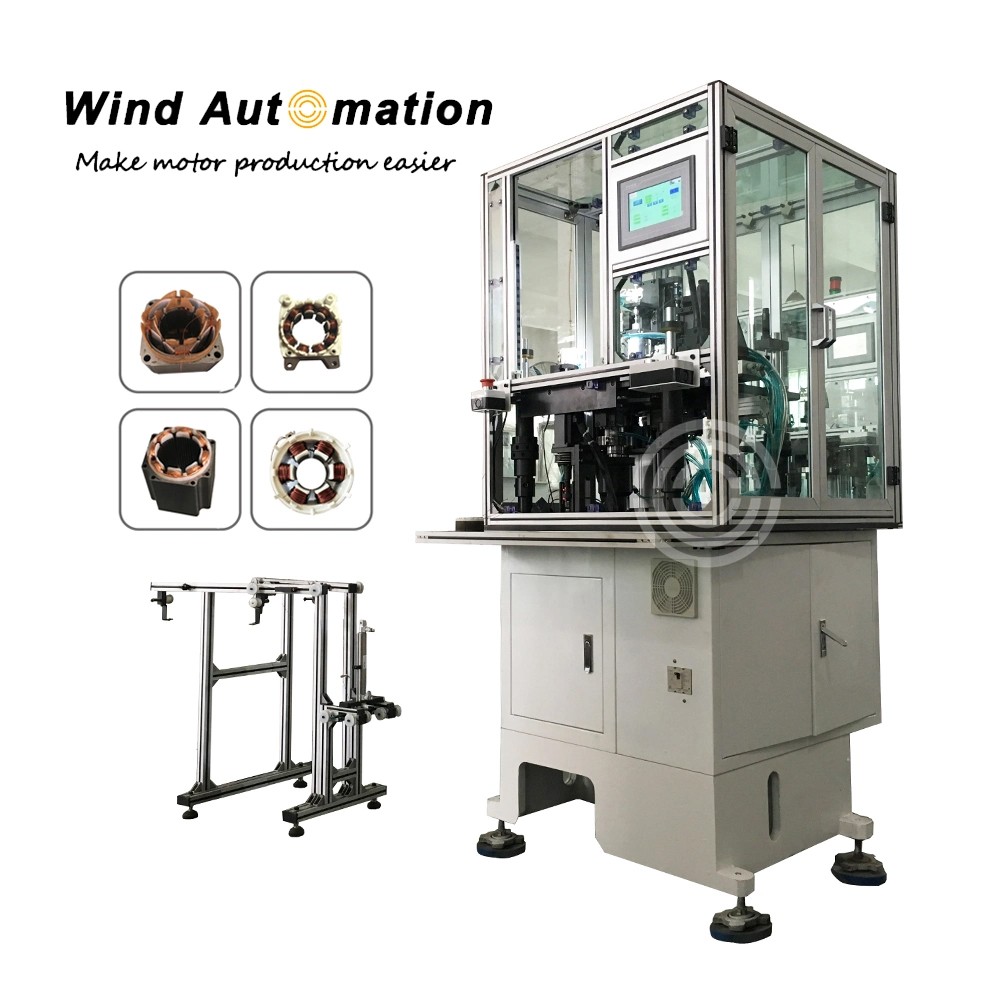

Needle Winding Technology Stator Inslot Winding Machine

Needle Winding Technology Stator Inslot Winding Machine
Our stator inslot winding machine covers a wide application, not only for BLDC motors but also other motors, such as stepping motor, muti-poles stators.

(1)Specification

Wire diameter	0.08~1.2mm
Stator ID	19~65mm
Stack length	7~110mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	6,9,12,18(customized)
Air source	5~7kg/cm3
Power	2KW
Power supply	AC 220 V, 50/60HZ
Weight	750KG
Dimension	1600x1100x1400mm

(2)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

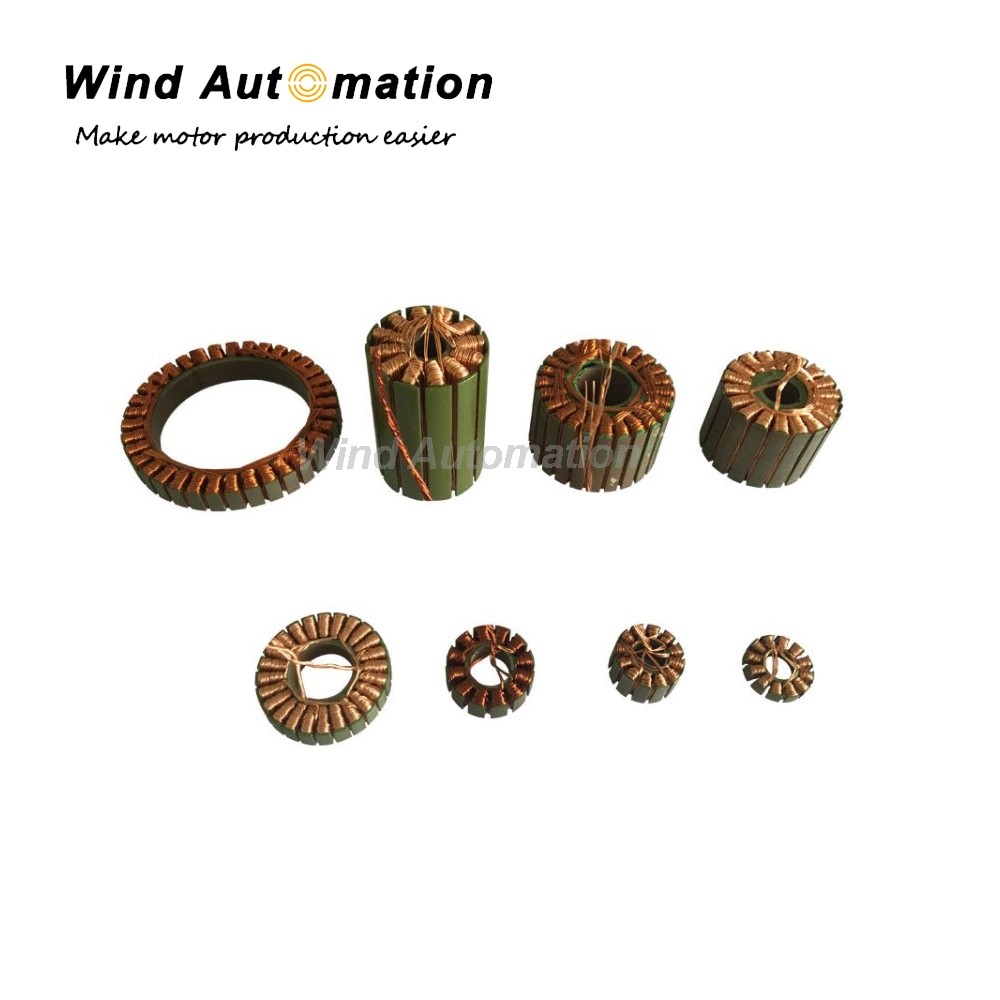

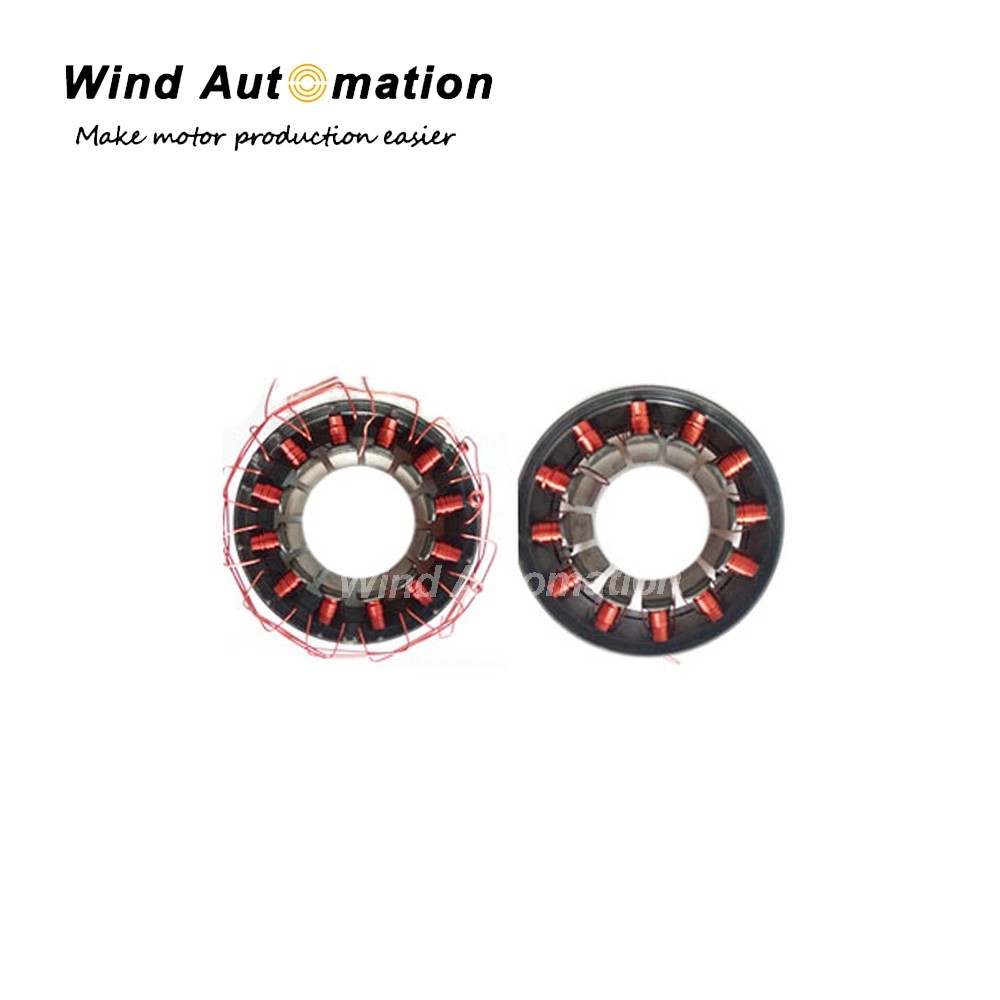

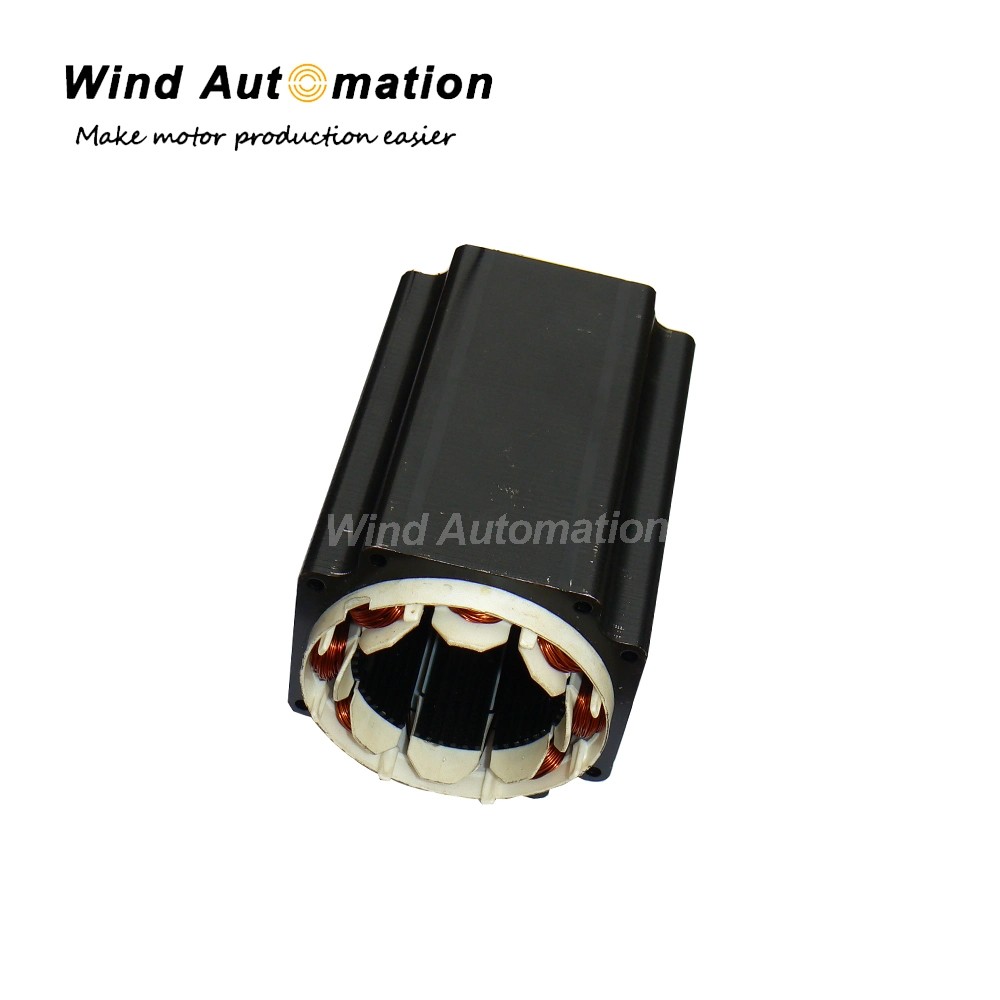

(3)Application
suitable for various types stators with narrow slot width but high slot filling rate.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

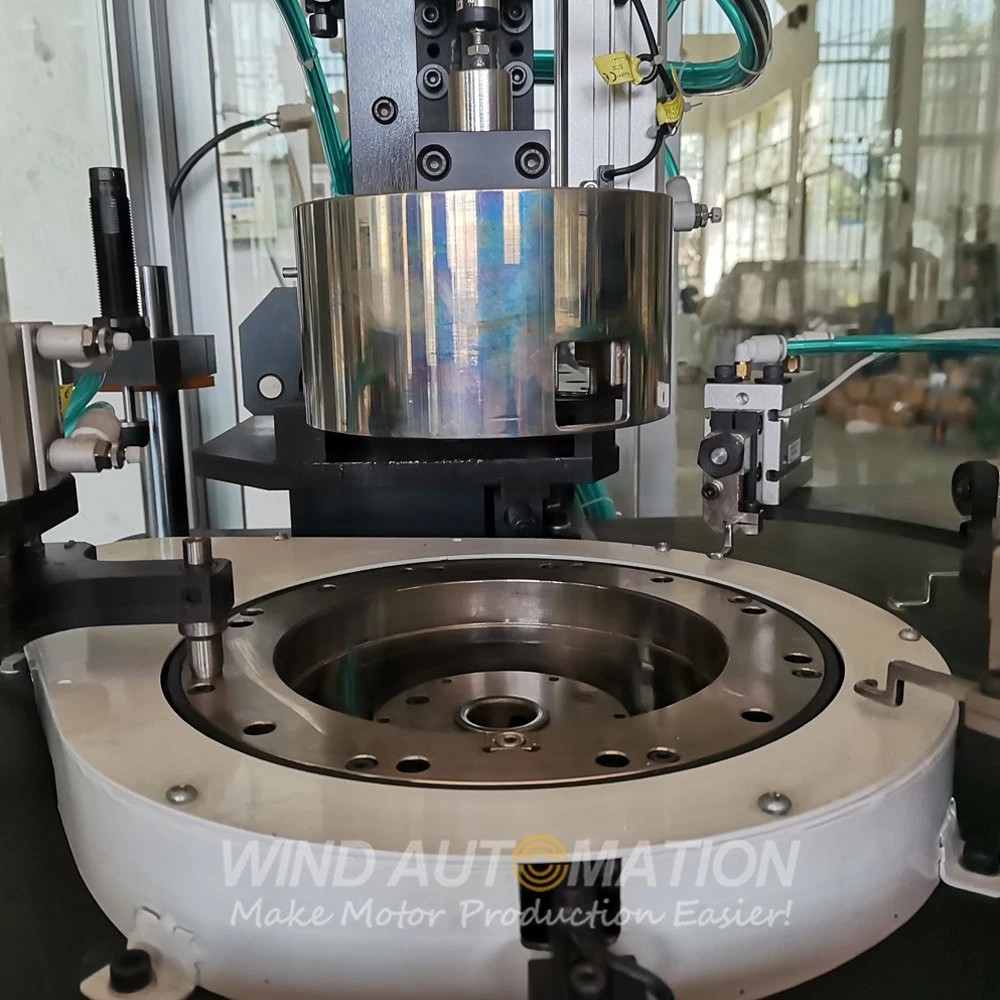

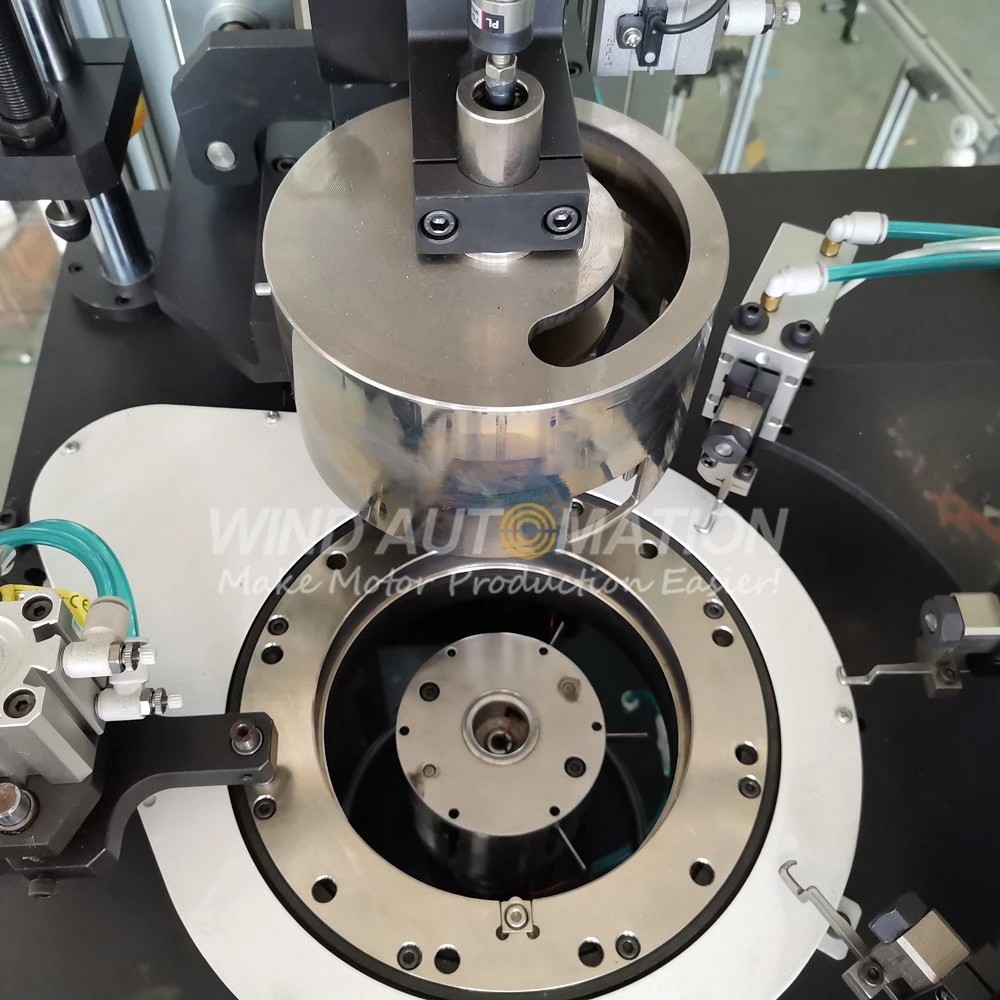

(5) Machine working station
Needle Winding Technology Stator Inslot Winding Machine
