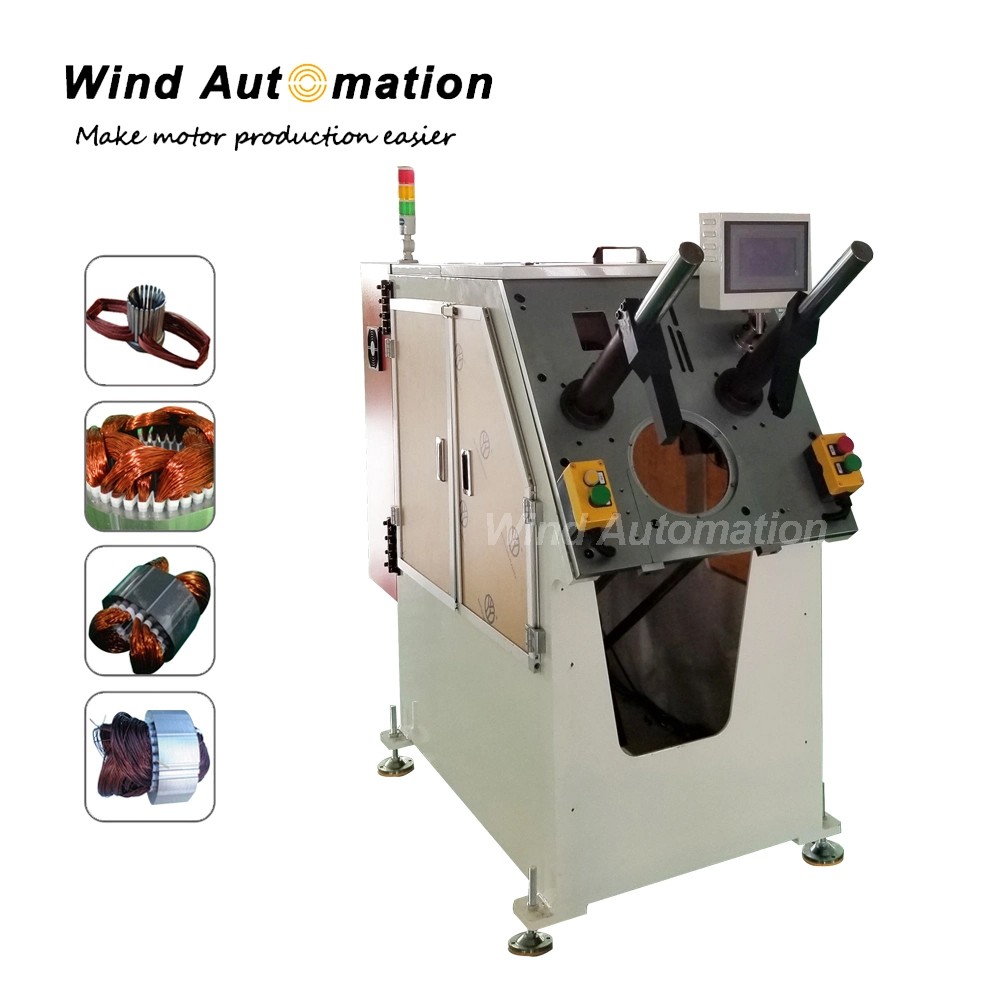

PLC Control Servo Drive Stator Coil Insertion Machine

PLC Control Servo Drive Stator Coil Insertion Machine

This machine is suitable for different model type stators to do coil insertion through tooling change. Machine is easy to operate, no killed operator required.

(1) Application
This type of machine is suitable for various types of AC motor, induction motor stators.

(2) Specification

Stack lengthMax 120mm
Stator ID20~100mm
Stator ODMax 160mm
Tooling strokeMax 70mm
Suitable wire materialCopper/Aluminium wire
Slot number8~48slots
Power supply380V 50/60HZ
Weight850KG
Dimension1850x650x1700mm


(3) Feature
Wide application

Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required

PLC Control Servo Drive Stator Coil Insertion Machine
PLC Control Servo Drive Stator Coil Insertion Machine
PLC Control Servo Drive Stator Coil Insertion Machine


PLC Control Servo Drive Stator Coil Insertion Machine
