Double Station Drone Flyer Motor External Armature Winding Machine
This external armature winding machine is used to do inslot winding for various kinds of external armatures. Fixture module design enable fast demoulding. Two working stations improves working efficiency.
(1)Features
High efficiency and production
2 working stations to do synchronous winding
Multi-wire concentrated winding available
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
Provide customized service
PLC control, fault display
(2)Specification
| Working station | 2 |
| Stator OD | 20~140mm |
| Stack length | 5~50mm |
| Slot number | 2~36 |
| Wire diameter | 0.1~0.7mm |
| Arraying width | 30mm |
| Spindle speed | 0~2000 RPM |
| Controller | Motion controller |
| Counting accuracy | ±0.05 cycle |
| Power supply | AC 220 V, 50HZ |
(3)Application

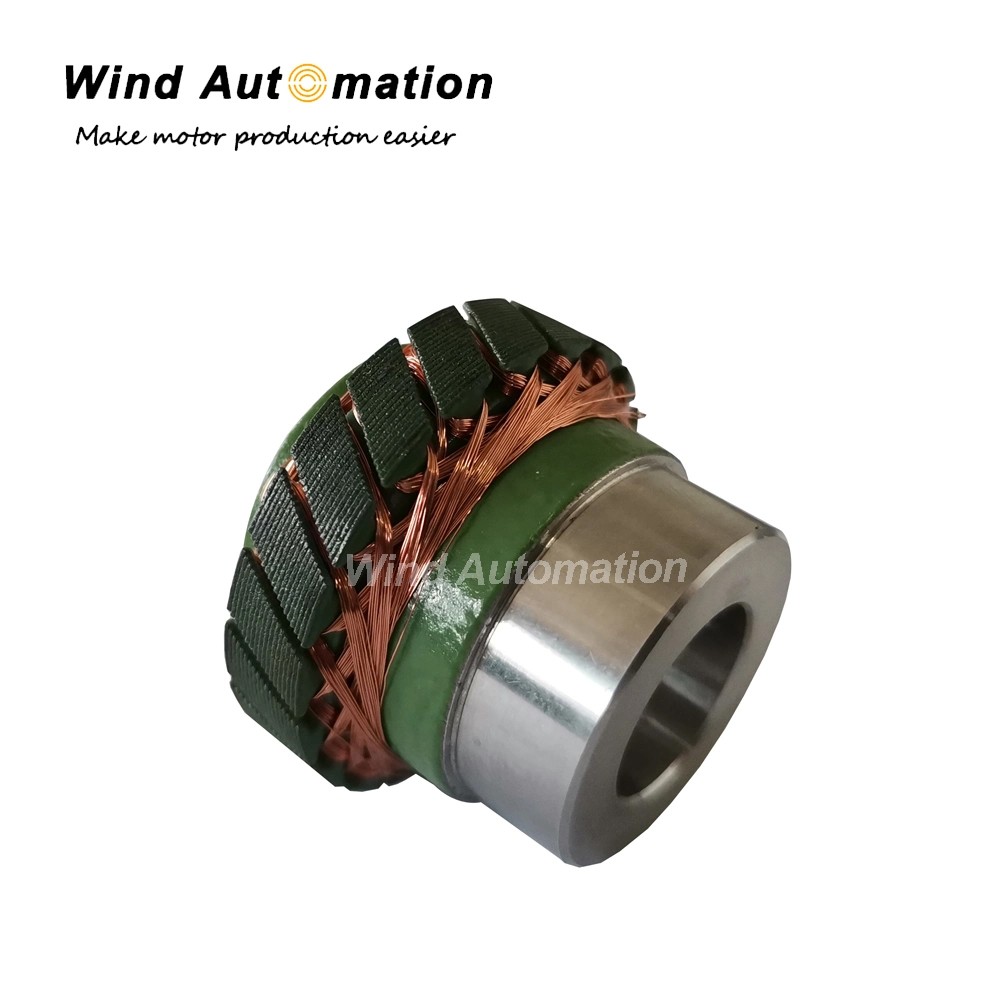

It is suitable for external armatures of aerospace motor, hybrid automobile car motor, fan motor, balance motor, scooter motor, torsion car motor.
