Product Description

Manual Universal Taping Machine Insulation Tape Winding Machine

Manual Universal Taping Machine Insulation Tape Winding Machine

Specification

1.Min. opening of coil: 170mm, max. straight part of coil: 800mm;

2.Max. section area (after taping): 25×50mm²;

3.Tape width 25mm, half overlapping 12.5mm, double taping 6.25mm,automatic moving by pulley;

4.Speed: 50~250r/min, 0.55kW;

5.Manual wrapping

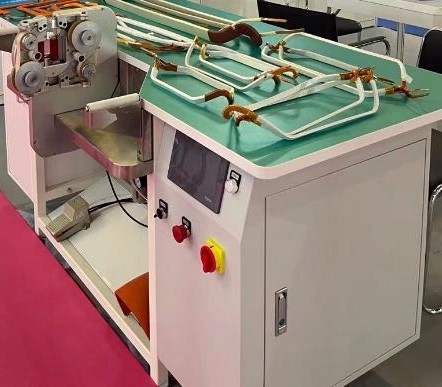

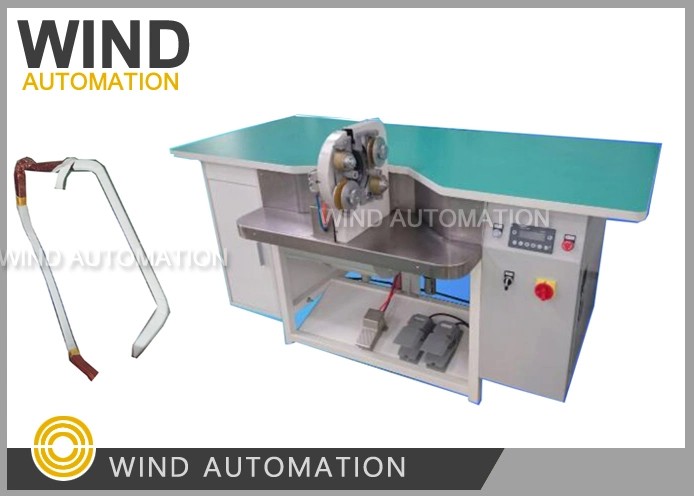

1 To 6 KGS Constant Tension Taping Winding Machine To Insulate Conductor Coils WIND-TP06A

Conductor Insulation Tape Winding Machine Application:

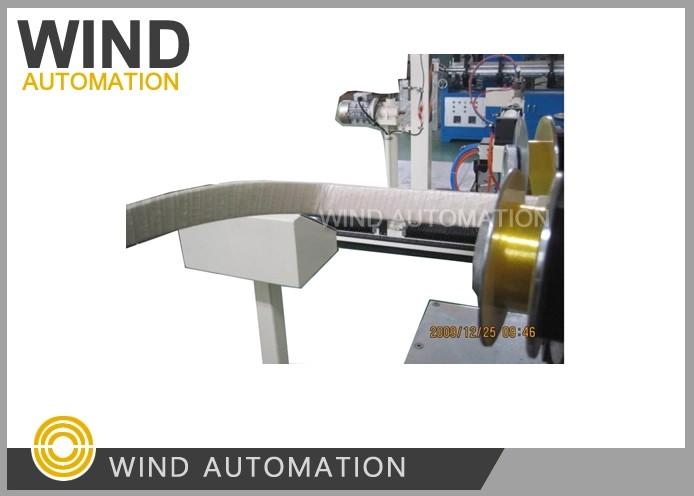

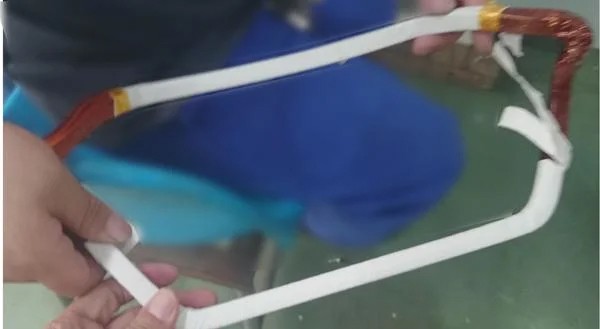

Insulate the conductor coil by semi-auto taping winding process

Tape Insulation Winding Machine Parameter:

Model	WIND-TP06A
Taping machine tension	Mechanical Constant Tension from 1KG to 6KGS
Conductor distance	Min.190mm (Min. 130mm after remove the air chuck
Tape width	15mm, 20mm, 25mm
Taping rate	1/3 ~ 1/2 ~ 3/4 can be adjusted
Max. area after taping	20*45mm
Max. conductor length	900mm
Table length	1200mm
Rotation speed	50~260RPM
Frequency control	0.75KW
Speed regulating motor	0.2KW
Machine size	About (W)×(D)×(H)mm
