DC-Motor-Universal-Motor-Stator-Testing-Machine

Basic Info.

Model NO.

WIND-ST-1

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

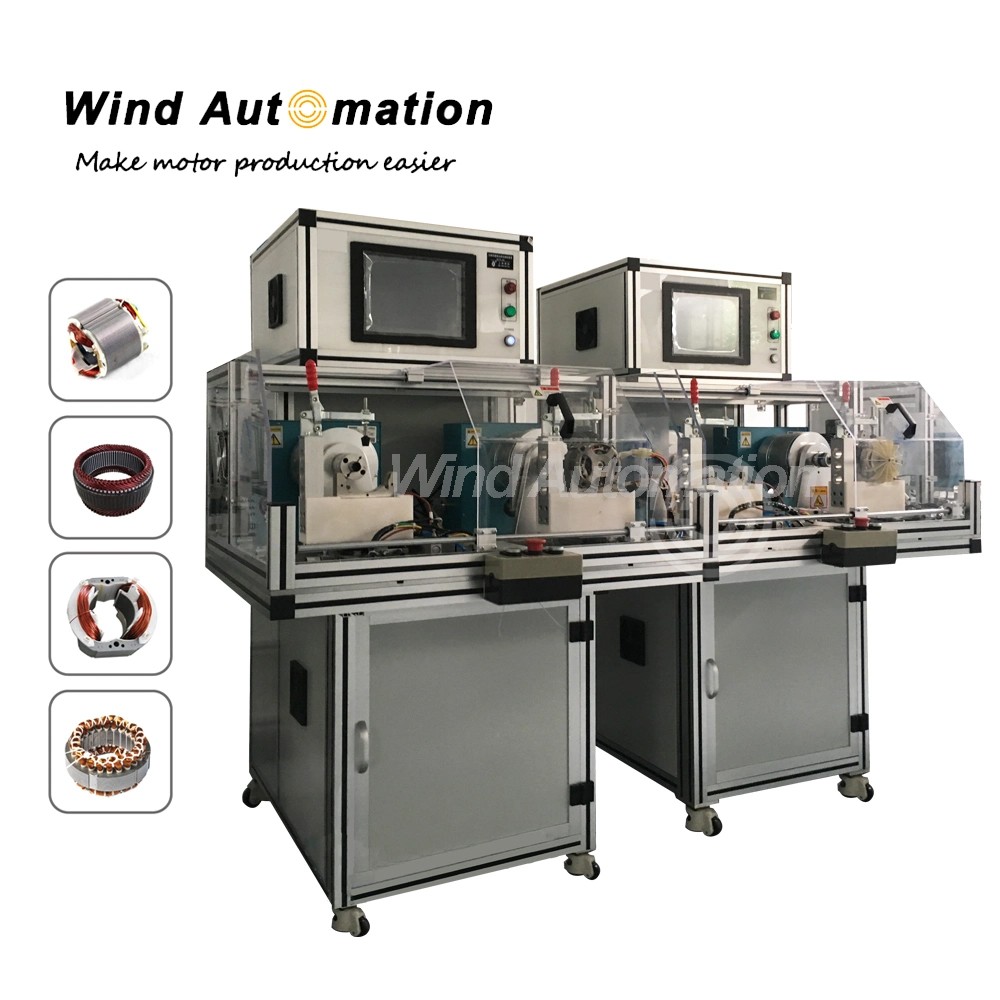

DC Motor Universal Motor Stator Testing Machine

DC Motor Universal Motor Stator Testing Machine

(1)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation

(2) Testing item

Test Items	Test Description	Accuracy
Isolation resistance	DC 500V/1000V	0.1-500MΩ ≤±2.5% Full scale
Hipot	AC 100-1000V	0-20mA ≤±2.5% Full scale
Speed	0~50000rpm	≤±1%
Voltage	DC 0-30V/0-60V	≤±1% Full scale
Current	0-5A/0-30A/0-60A	≤±1% Full scale
Power	0~3000W	≤±1.5% Full scale
Torque point	1~5 file	1~10 points
Turn direction	According to magnetic field	CW/CCW
Noise	Frequency Range: 0~12000HZ Test Results: 30~120dB	≤±1.5dB
Vibration	Frequency Range: 0~12000HZ Test Results:0.1~100m/s2	≤±5%
QR/Bar code	Applicable
