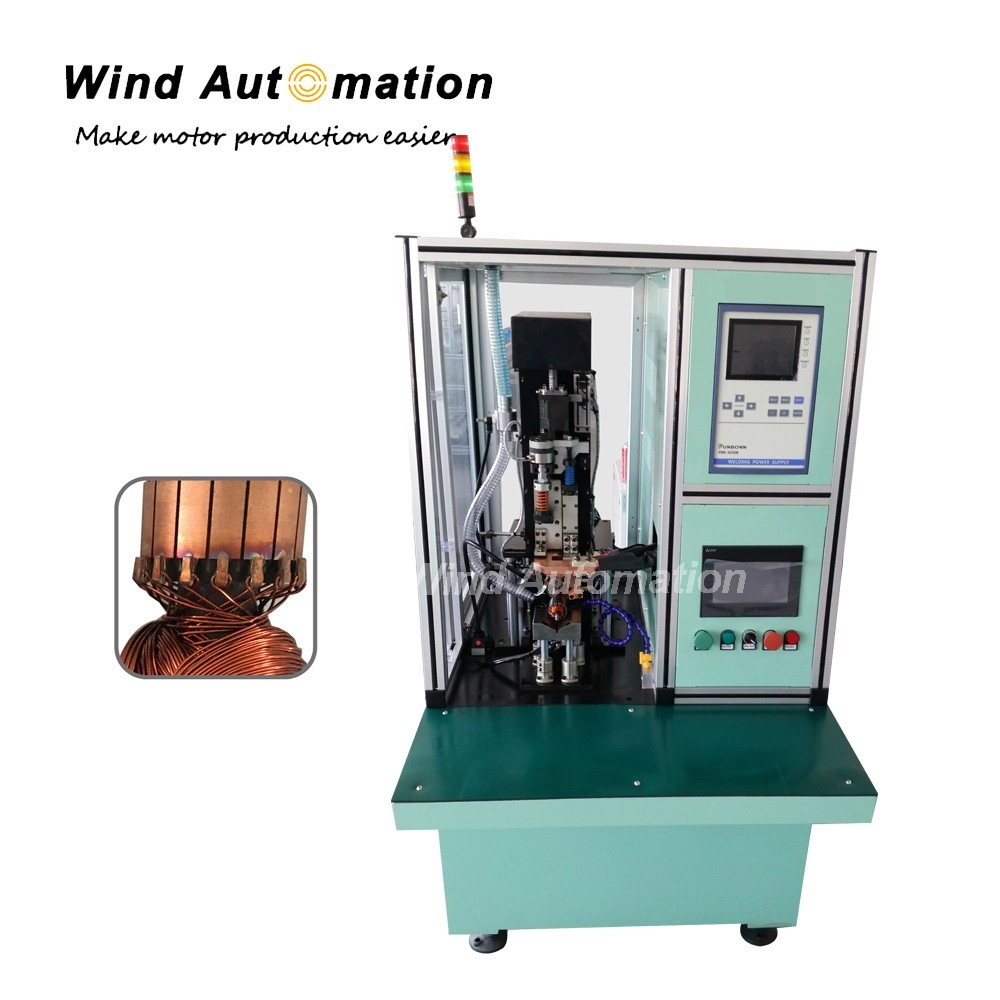

Welding Machine for Even Slot Hook Type Commutator
This machine is special designed for even slot hook type commutator to do welding. It adopts servo motor to precise slot indexing and water cooling method to prevent overheating.
(1)Specification
| Commutator type | Slot type |
| Hook No. | 4~36 (only for even slot) |
| Indexing method | Servo |
| Cooling method | Water cooling |
| Air source | 4~6kg/cm2 |
| Power supply | 380V 50HZ |
| Machine weight | 800KG |
| Dimension | 1000x950x1800mm |
(2) Feature
Only for hook type commutator with even slot number
PLC control
Water cooling method
Servo indexing method
Quick change-over of tooling
Provide customized service
Integrable in a production line
(3) Application
This machine is applied to DC motor and universal motor armature with hook type.
