Product Description

Outer Winding Needle Winding Machine for Linear Stator

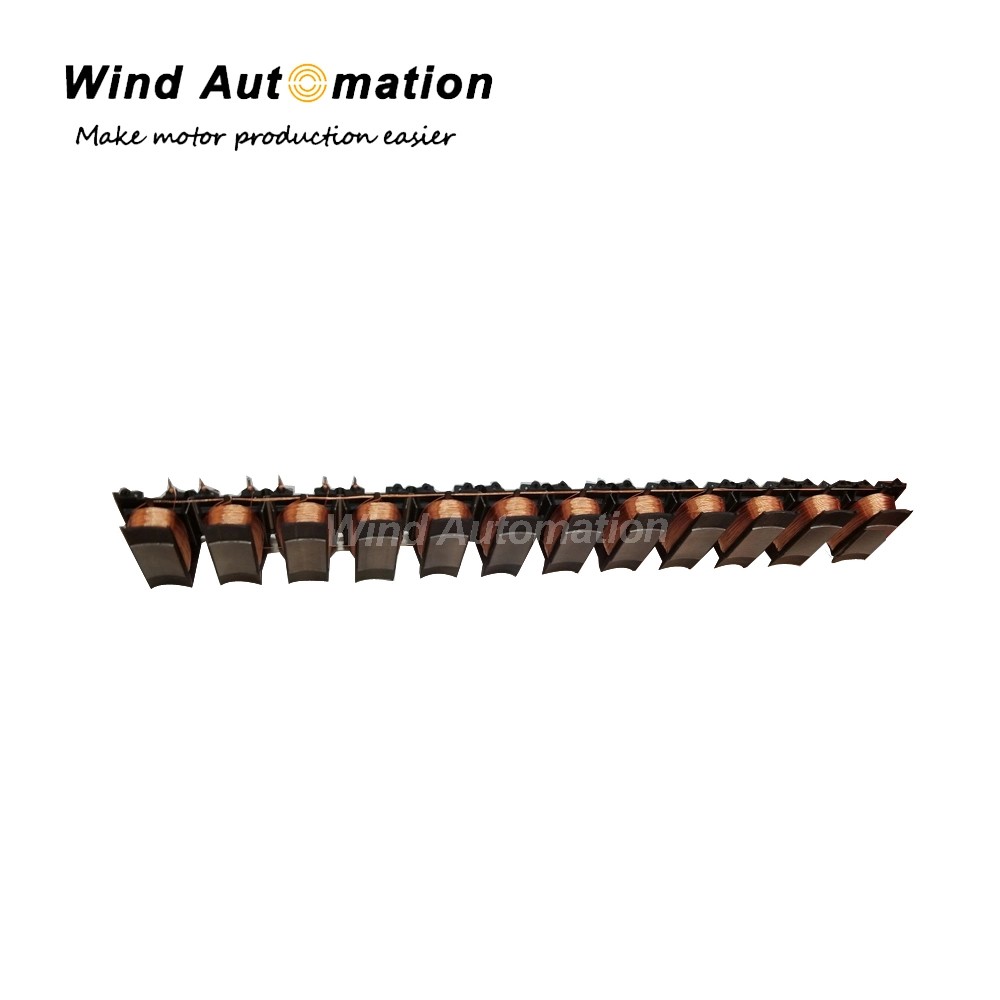

This machine is suitable for BLDC motor to do outer winding. It can wind different motor stators by replacing the tooling. It can automatically wind, array, index, pull the wire into the slot, trim the wire ect. Fast winding speed and high production, with embedded modular design.

(1) Specification

(2) Application
It is suitable for various kinds of open slot stators with high slot filling rate.

(3) Features
Friendly designed operator's interface
High efficiency and production
Precise servo drive control of the wire feeding
High quality level of the winding process
Provide customized service

Straight Lamination Stack Winding Machine Feature:

1. Through the winding needle up and down movement and the rotation of the lamination stack iron core,

     any track can be wound. Therefore, by changing the product winding program, corresponding windings

    with different core stack thickness and different turns number of core poles can be setted easily

2.  Human-machine dialogue can make sure the operation mode and maintenance easier

3.  Spiral wire turns no. cripmed into terminal can be arbitrarily setted and stop at any location 360°,

     As a result, It is simple and convenient to place bridge wire and shorten the overall cycle time.

     Improve production efficiency

4. During winding, the number of coils in each layer can be flexibly changed to realize different of product

    types layer.

5. Since the copper wire grooving operation is performed with high-performance Yaskawa control system

     and Yaskawa servo motor, the stability of the position of the enameled wire in the slot can be ensured

     and therefore shorten the winding time.

6. Manual or automatic robot hand feeding methods can be selected.

    Automatic loading and unloading can realize complete automated production of production lines,

    saving labor costs for motor manufacturer customers in mass production.

7. All units of the winding equipment have been fully standardized, and the toolings are easy to replace

    The overall winding machine maintenance is more simple and convenient.
