Slot-Paper-Inserting-Machine-for-AC-Motor-Induction-Motor-Stator

Basic Info.

Model NO.

WIND-100-SI

Customized Service

Provided

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Packaging & Delivery

Package Size

1200.00cm * 1300.00cm * 1800.00cm

Package Gross Weight

500.000kg

Product Description

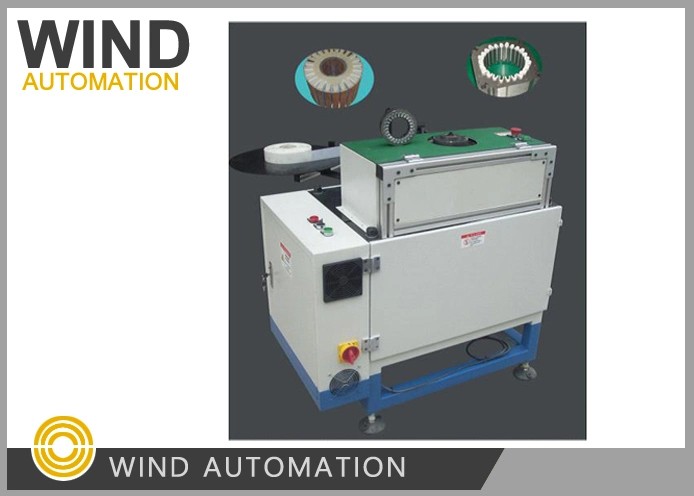

Slot Paper Inserting Machine For AC Motor Induction Motor Stator

This machine is used to insert insluation paper into stator slot. After paper inserted, there should be no damage of stator or coil, no deformation of lamination, free of burr.


(1) Specification

(2) Feature
Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required


(3) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.
