Product Description

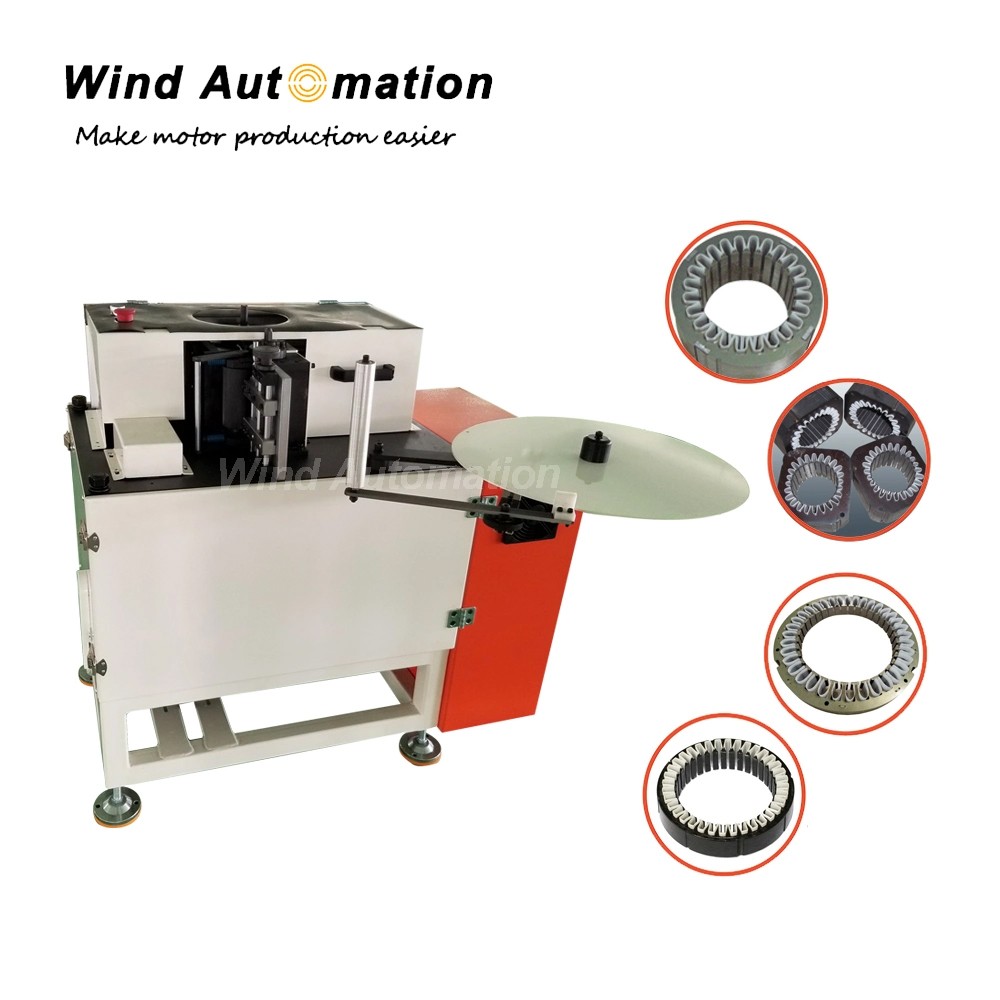

Three Phase Motor Paper Insertion Machine Insulation Paper Inserter

This machine is used to insert polyester film insulation paper roll material with thickness within 0.35mm and customized width. After paper inserted, there should be no damage of stator or coil, no deformation of lamination, free of burr.


(1) Specification

(2) Feature
Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required


(3) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.
