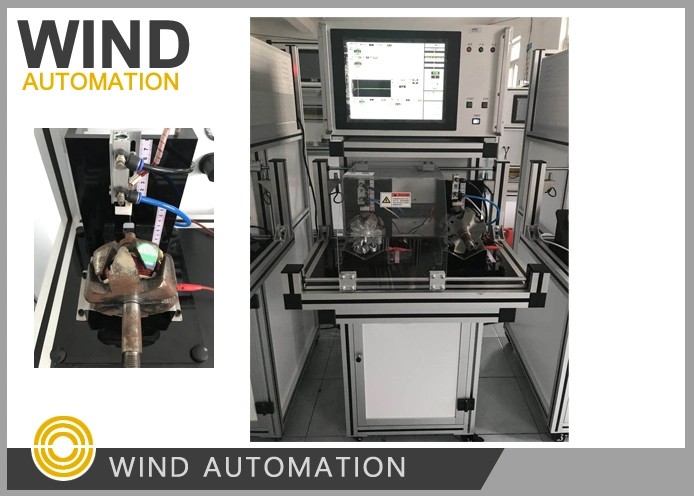

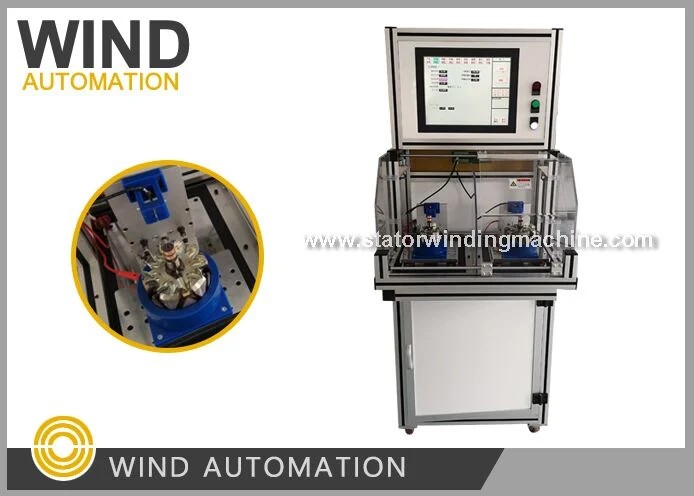

Alternator Generator Rotor Testing Panel Resistance Surge Hi Pot COMPONENTE DO ALTERNADOR 12V Rotor WIND-ATS-110

12V Alternator Generator Rotor Testing Panel Componente Do Alternador

Alternator Generator Rotor Testing Panel alternator assembly WIND-ATS-110

I.Test items

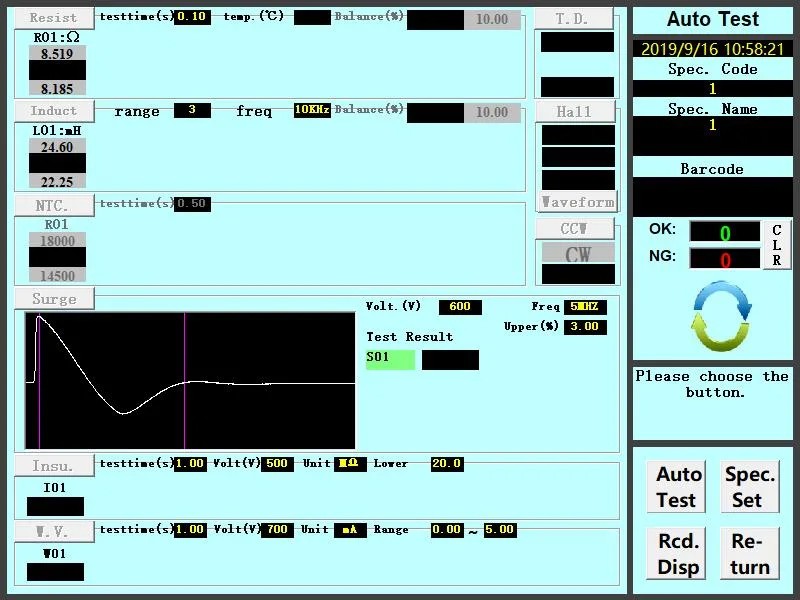

Test Items	Test Description	Test result
DC resistance (Four terminal method)	0.001W - 1000W	≤±0.5% Full scale

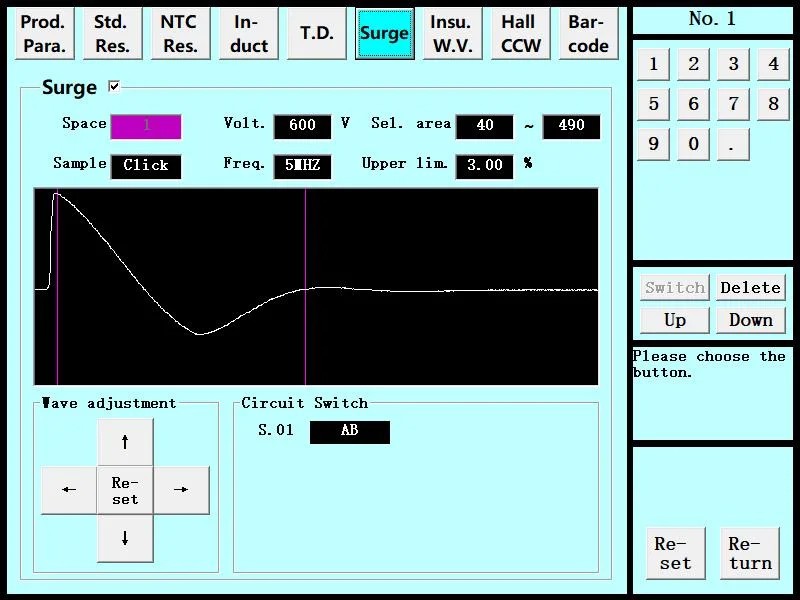

Surge test (Use space difference to judge, Standard waveform Write OK waveform Green NG waveform Red	Pulse high pressure:100-2000V(100V/Stage) Pulse crest: 0.5msec Sampling frequency:1-20 MHZ Test loop: 4 loop (expandable)	±2.5%

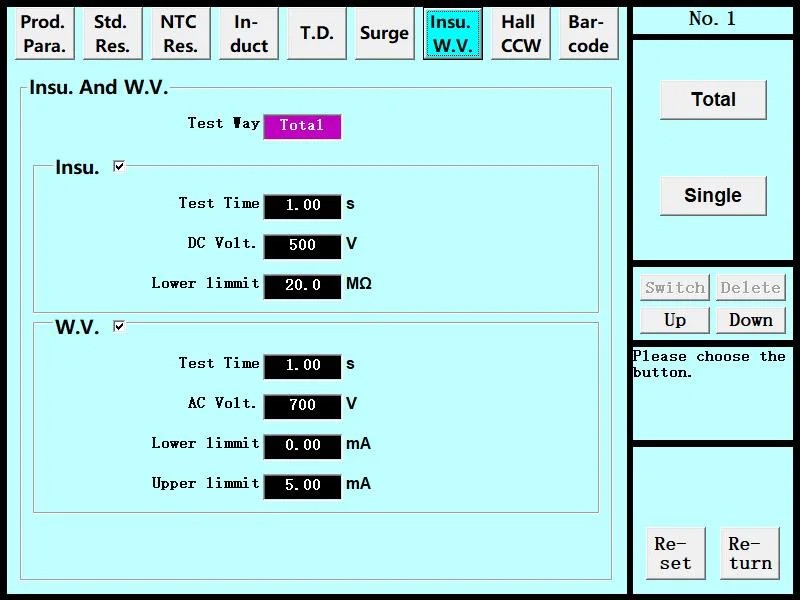

Isolation resistance	DC 500V / 1000V Test time: 1-10 seconds (0.1s/stage can be set) Judgment range: 1-1000 M	1-1000MΩ ≤±2.5% Full scale
Hipot	AC 60-2000V (60V/Stage) Test time: 1-10 seconds (0.1s/stage can be set)	0.1-20mA ≤±.2.5% Full scale

Test cycle:about 4s/pc
II.Main Configuration
Control system: Embedded Control System
Relay: Panasonic, Omon or Tyco
High voltage relay:TOWARD
Pneumatic parts:Airtac
Power: AC 220V,50Hz
Air pressure:0.4~0.6MPa
Temperature:0~45ºC
Package size 750*900*1750mm,
Gross weight 180KGS,
III.Auxiliary functions (optional)

Reading of a barcode or two-dimensional code

Laser marking device, coding device or label printing

3. Defective product stack
Used to store non-conforming products that have been tested. The operator must place the tested nonconforming product in the designated position and the device can start the next test. Avoid misplaced products.

4. Automated assembly line
It is used for IO control and communication control of automatic assembly line to facilitate independent integration to complete the need of overall automated production.

5. Database function
After networking, test data can be automatically uploaded to the server and saved in EXCEL format, integrated two-dimensional code scanning

History

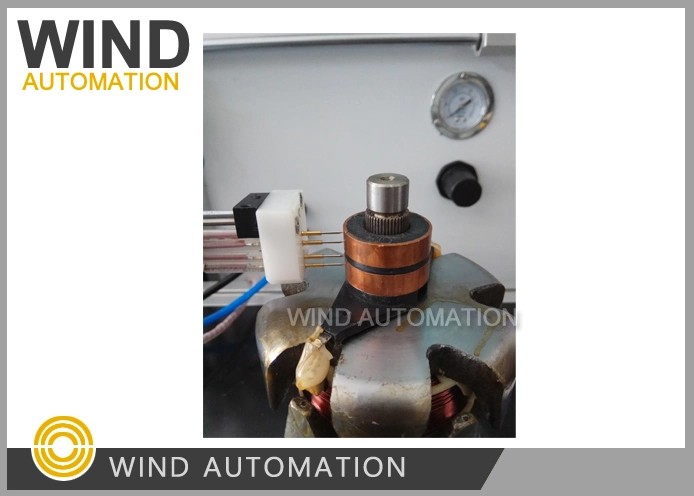

In the year 2019, The fixture of rotor testing machine was modifed and updated to
be strong enough to hold the heavy rotors from alternator rotor manufacturer's company considering long time use and to prevent wearing,
