Product Description

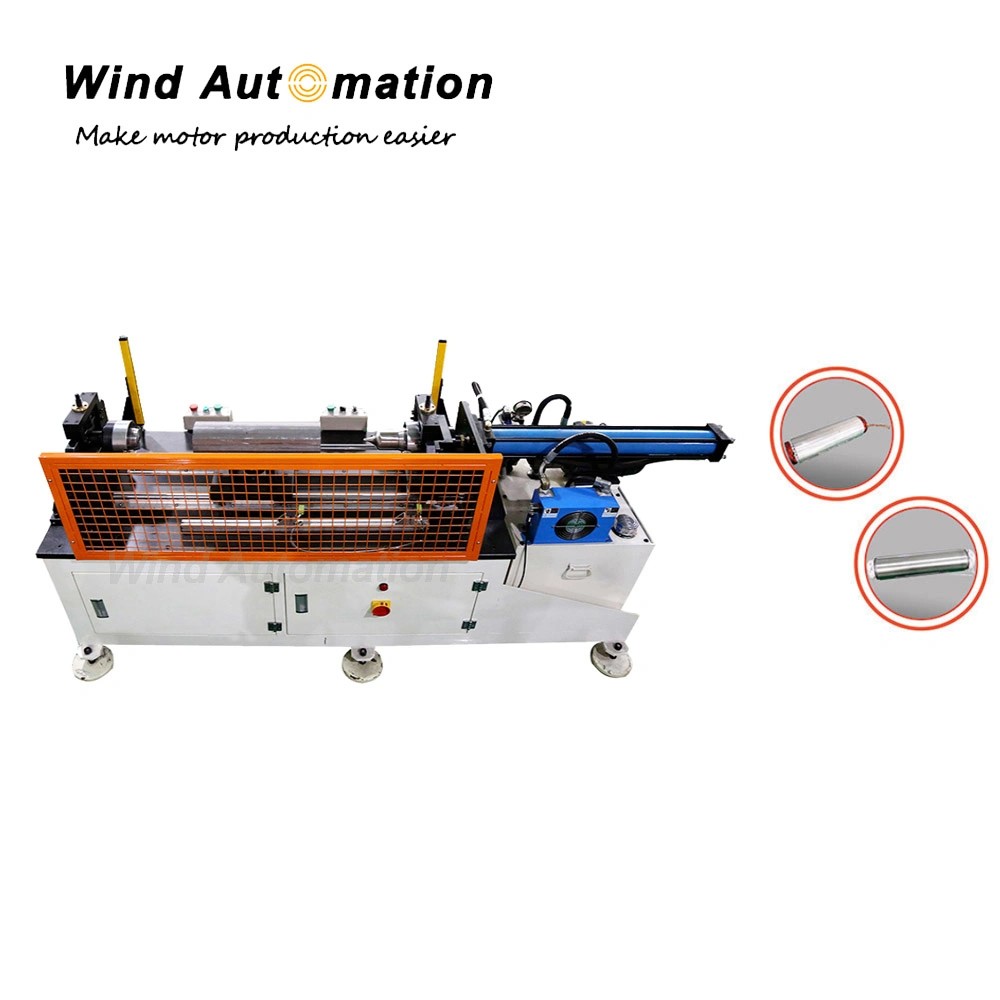

Deep Well Pump Motor Stator Coil Forming Machine

This machine is especially for submersible pump motor stator with big stack height and small inner diameter to do forming after inserting.

Machine is driven by hydraulic system. Both stator end coils are formed at the same time. Copper wire and PVC wire are both applicable.

(1) Specification

(2) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required

(3) Application
This type of machine is suitable for submersible pump motor stator with big stack height and small inner diameter to do forming after inserting.
