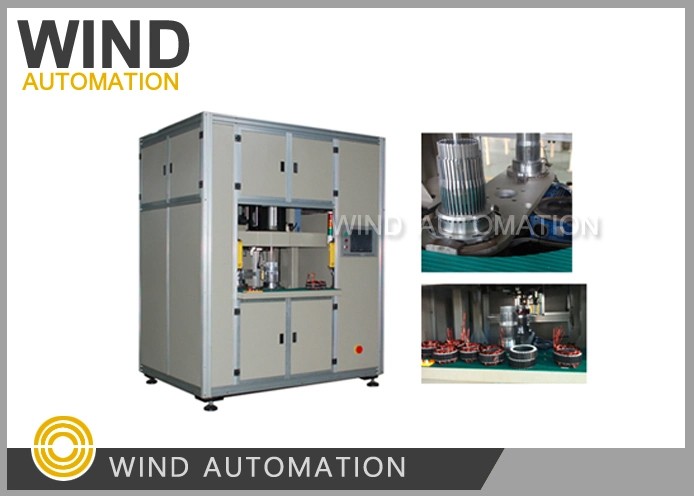

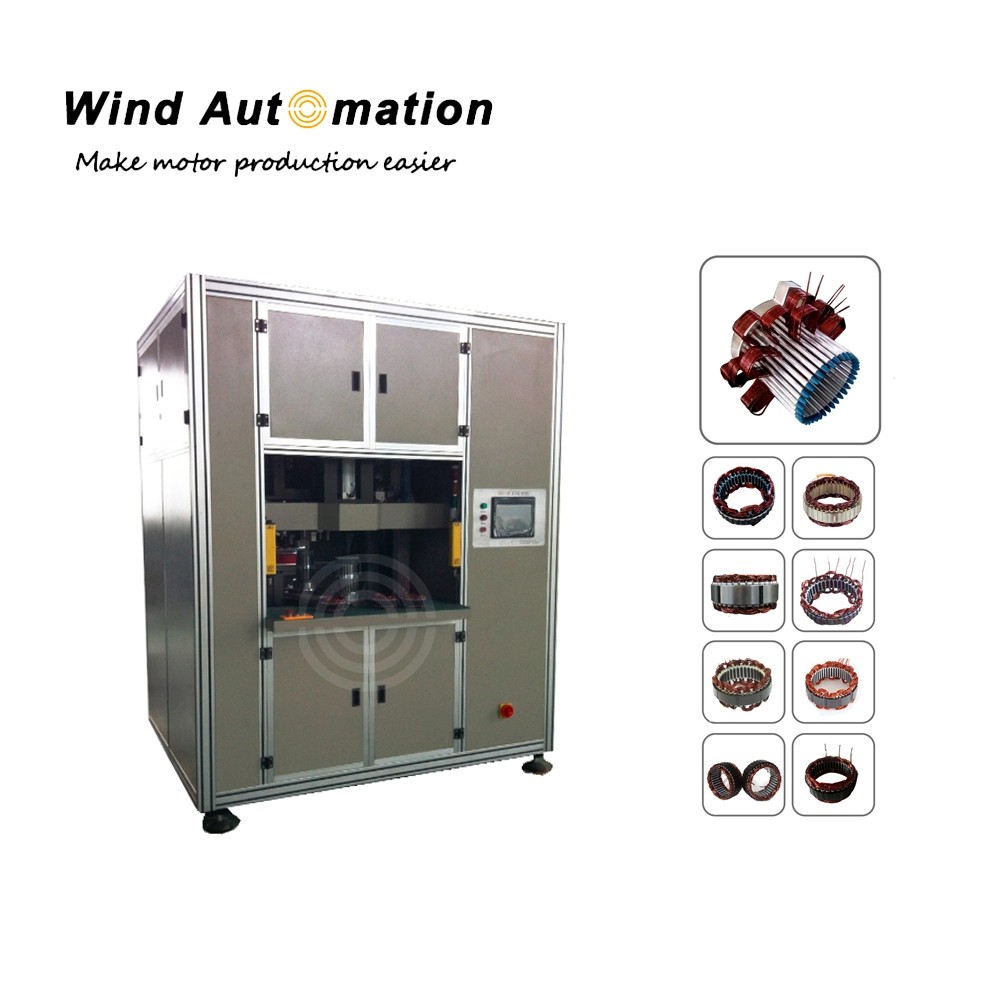

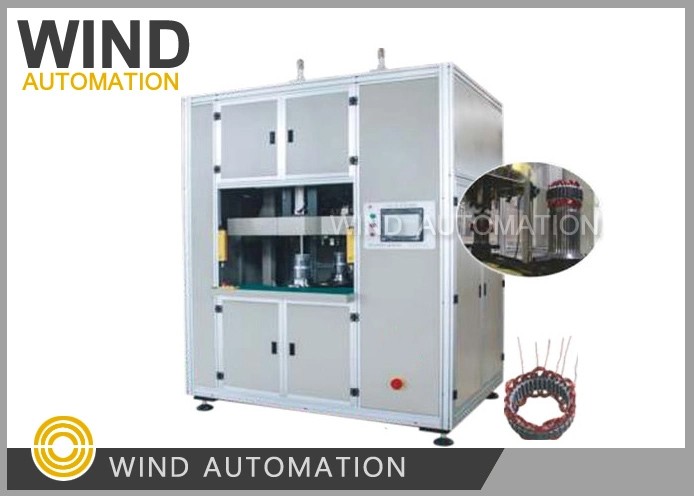

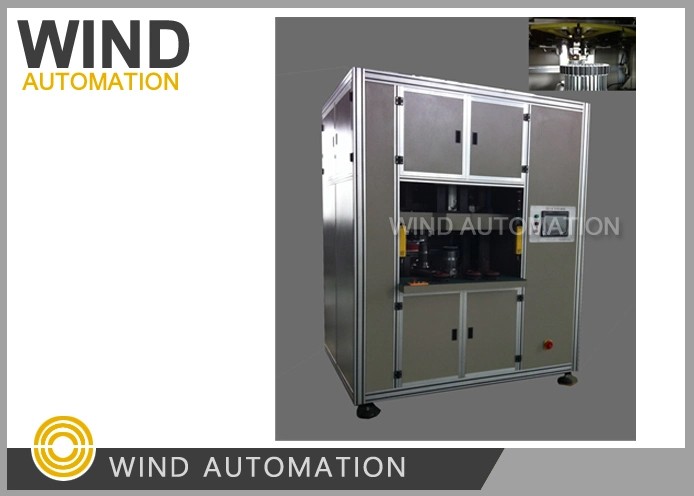

Generator Stator Winding and Coil Inserting Machine
The machine has two working stations, one for coil winding, the other for coil and wedge inserting. Winding and inserting process are all controlled by servo motor. Auto and jog mode are avaiable.
(1)Features
Two working stations
Easy loading and unloading
High automation and productivity
Fully programmable operation
Parameter adjustable according to different stators
Applied as a stand-alone machine or integrated into a production line
(2)Machine configuration
| Power supply | AC 380V 50HZ |
| Air pressure | 0.5~0.7 MPa |
| Total power | 8KW |
| Winding speed | 10~120r/min |
| Slots | 36/48 |
| Wire range | 0.15~1.6mm |
| Stack length | 20~130mm |
| Dimension | 1800mmx1900mmx2500mm |
