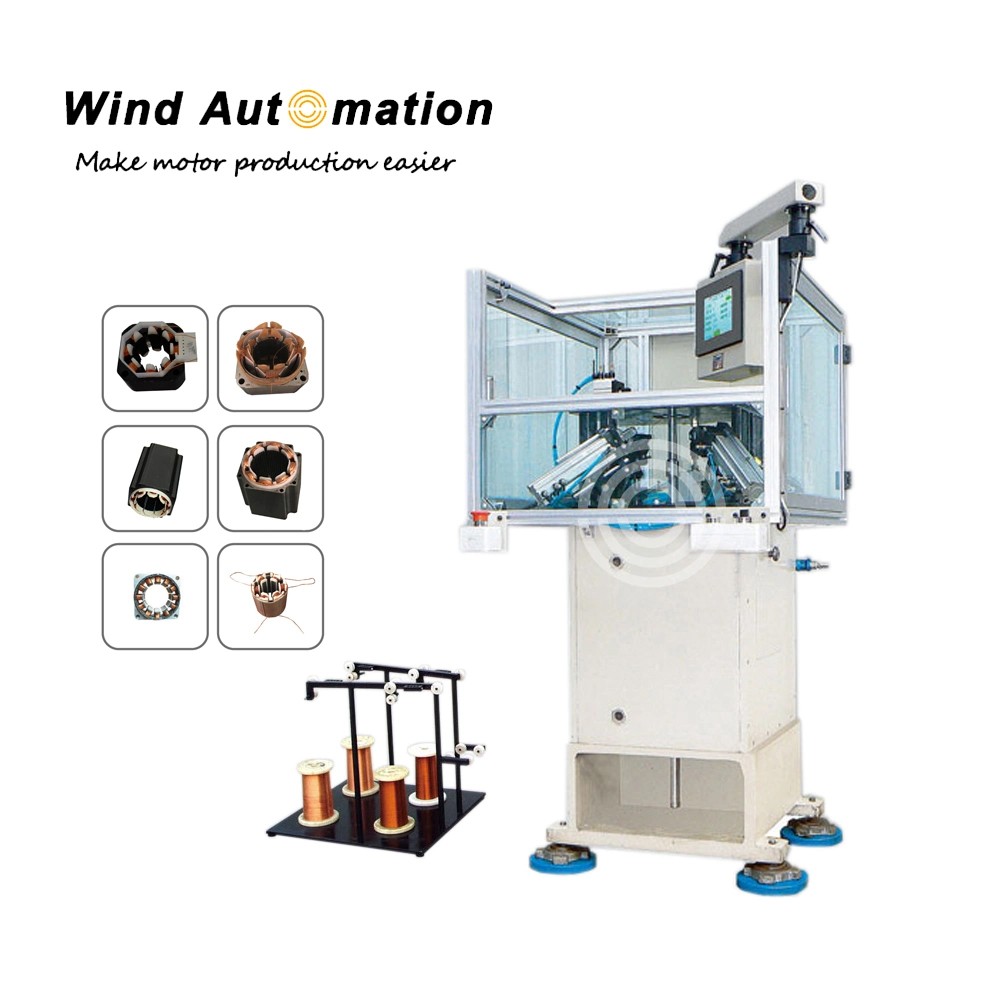

4 Slots Shaded Pole Motor Stator Coil Winding Machine

4 Slots Shaded Pole Motor Stator Coil Winding Machine
The standard machine is suitable for 4 poles shaded pole motor to do winding. Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.

(1)Specification

Wire diameter	0.08~1.00mm
Stator ID	15~65mm
Stack length	7~90mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	4 (customized)
Air source	5~7kg/cm3
Power	2KW
Power supply	AC 220 V, 50/60HZ
Weight	450KG
Dimension	1550x900x1450mm

(2)Application
Suitable for 4 poles shaded pole motor to do winding.

(3)Features
High speed needle winding
fully programmable operation
High quality level of the needle winding process
Depending on the customer`s specifications.
Automatic winding, indexing, layering and terminating
Quick change-over of tooling

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
4 sets auto wire clamping and cutting system
4 Slots Shaded Pole Motor Stator Coil Winding Machine
