Hybrid-Car-Motor-Stator-Paper-Expanding-Machine

Product Description

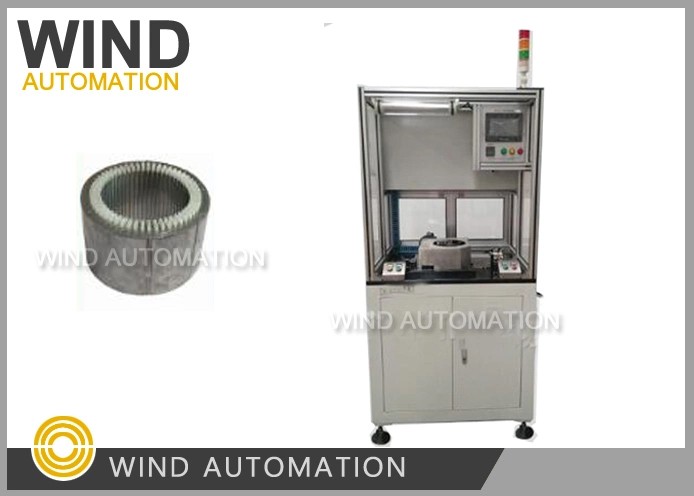

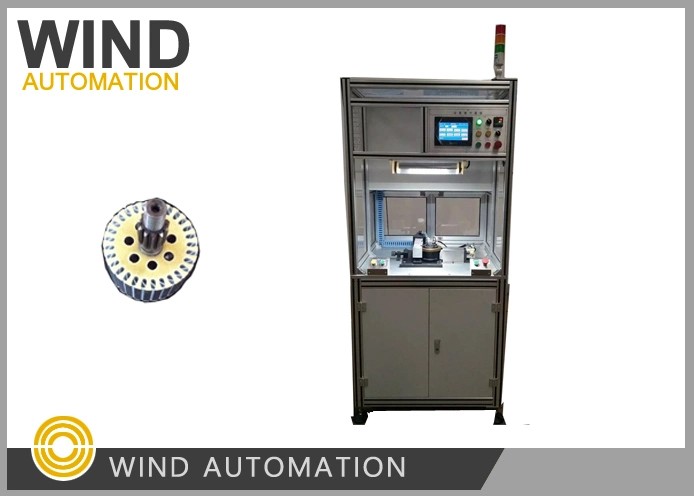

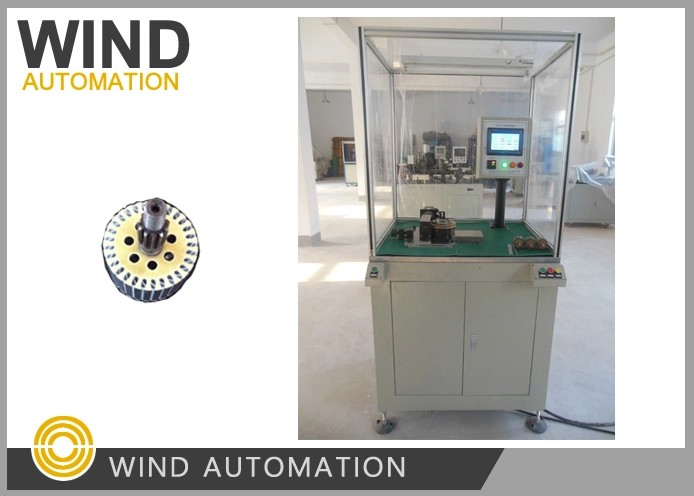

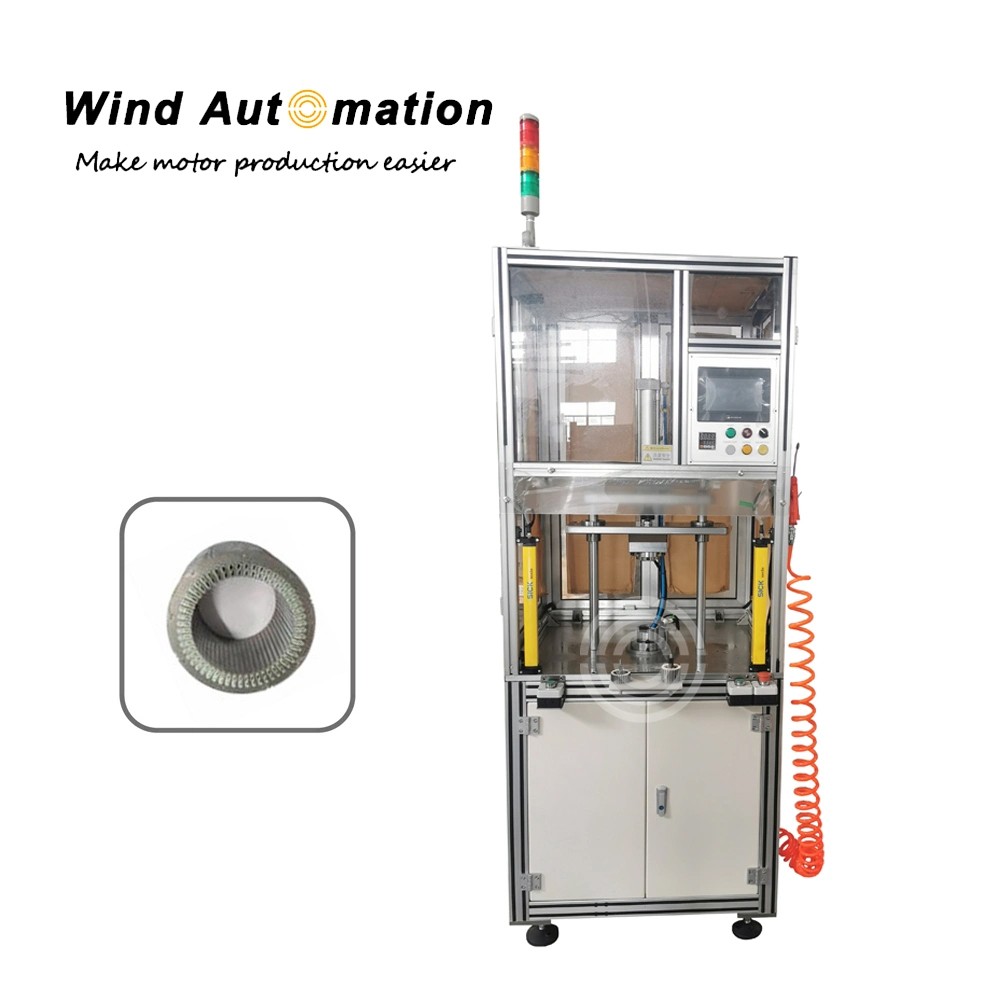

Hybrid Car Motor Stator Paper Expanding Machine

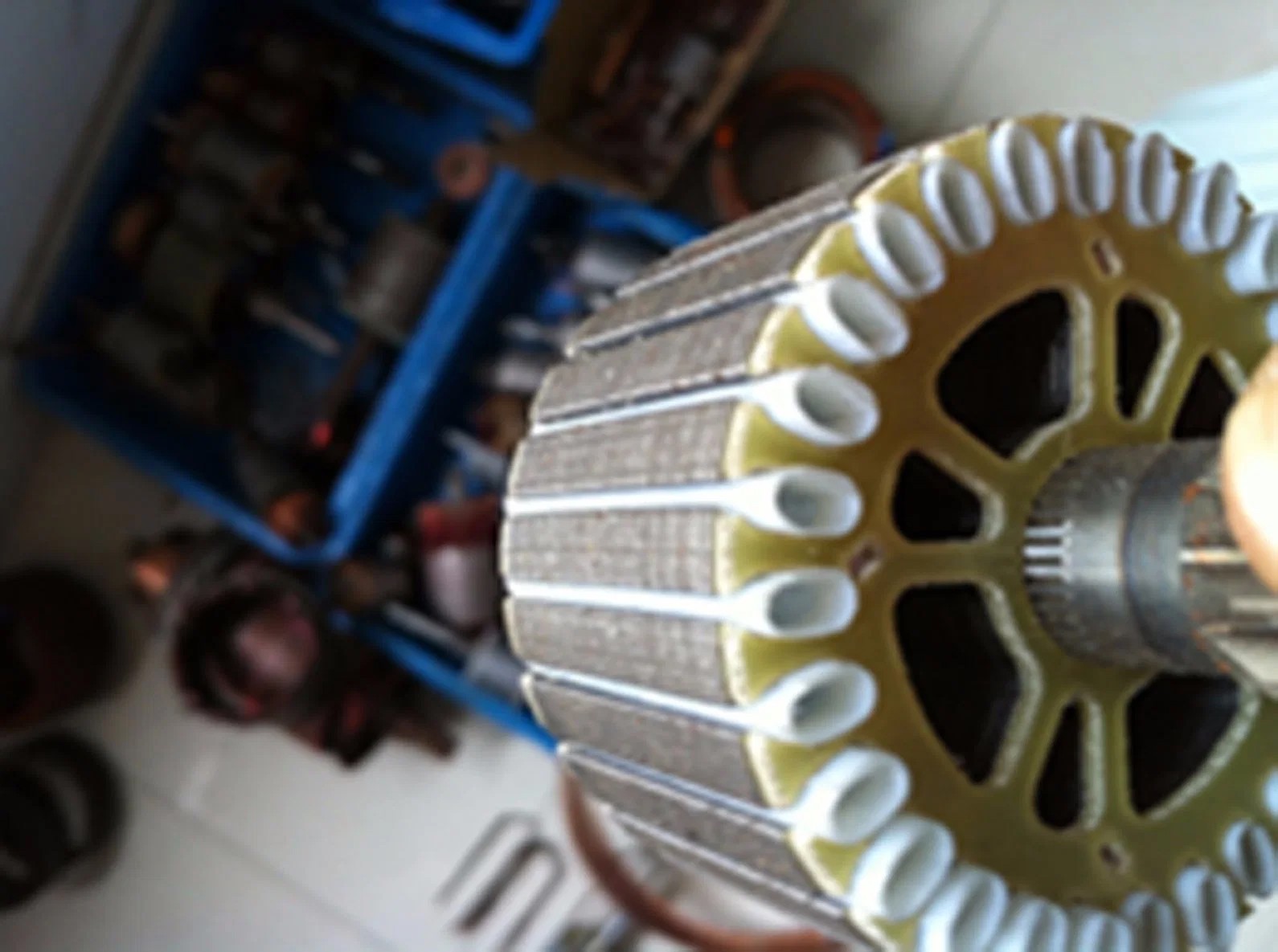

This hybrid car motor stator paper expanding machine is capable of expanding stator slot paper after the paper inserting stage in order to leave enough space for successive coil insertion. After expanding, no deformation of stator or slot paper. The machine performs automatic expanding process after work piece loading.

(1) Specifications

(2)Application

This machine is designed for insulation paper expanding for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3)  Features
Two ways of loading, manual or by mechanical arm
No deformation of stator or slot paper after expanding
Easy to operate
Fully automatic working cycle after loading
Fast and easy readjustment
PLC control, fault display
High quality level of the expanding process
Design compliant with the requirements of the OEM manufacturers

(4)Working process
Loading---working piece feeding---downward pressure---- heating--- upward pressure--- finished piece feeding----unloading

(5)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
